Wagon

Rear Bumper Cover, Removing And Installing 10.00 -->

Removing

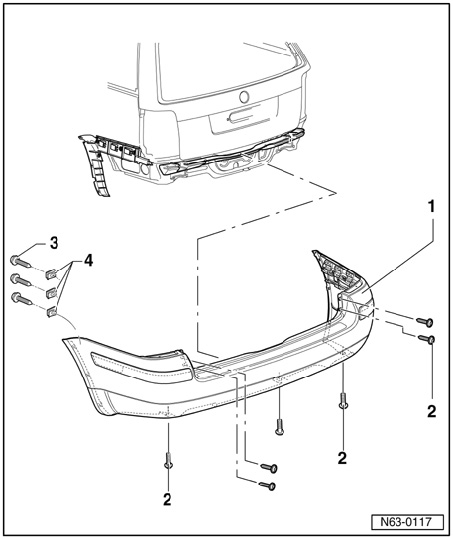

- Remove bolts - 2 - at top and bottom from cover - 1 -.
- Remove bolts - 3 - in area of wheel housings.
- With a second mechanic, pull cover parallel out of guides.
- Harness connectors must be disconnected from installed electrical components.

Installing
Installation is reverse order of removal.
- Make sure gaps are parallel and gap dimensions.
