Sedan

Rear Bumper Cover, Removing And Installing 10.00 -->

Removing







- Removing tail light assembly: Electrical Equipment; Repair Group 94; tail light assemblies.

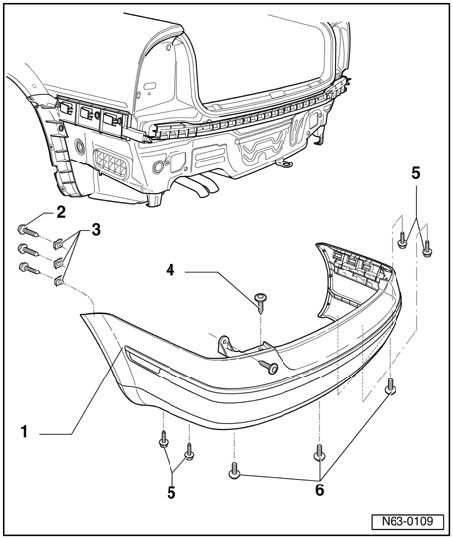

- Remove bolts - 2 - in area of wheel housings.
- Bolts - 5 - and - 6 - must be Removed from below out of cover - 1 -.
- Remove bolts - 4 - under tail light assemblies.
- With a second mechanic, pull cover parallel out of guides.
- Harness connectors must be disconnected from installed electrical components.

Installing
Installation is reverse order of removal.
- Make sure gaps are parallel and gap dimensions.
