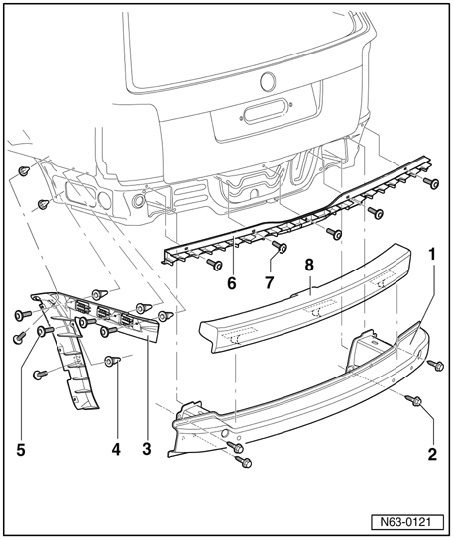

Rear Bumper Cover Lower Assembly Components, Assembly Overview 10.00 -->







1 - Bumper carrier
- Bumper carrier 4Motion and US-vehicles.

2 - Bolt
- Qty 4
- 20 Nm

3 - Guide piece
4 - Expanding nut
- Qty 6

5 - Bolt
- Qty 6
- 2 Nm

6 - Securing strip
7 - Bolt
- Qty. 5
- 1.2 Nm

8 - Foam piece
- Self adhering
