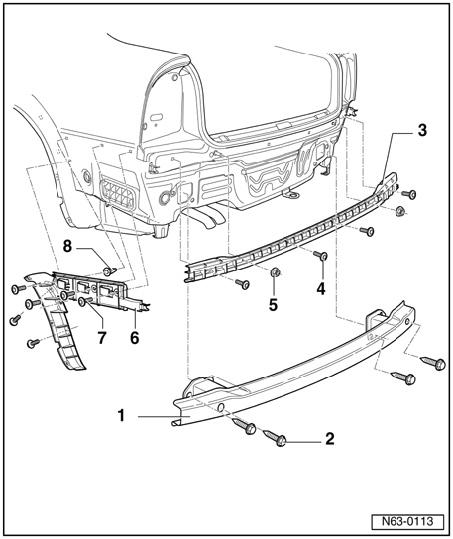

Rear Bumper Cover Lower Assembly Components, Assembly Overview 10.00 -->







1 - Bumper carrier
- Bumper carrier 4Motion and US-vehicles.

2 - Bolt
- Qty 4
- 20 Nm

3 - Securing strip
4 - Bolt
- Qty 4
- 1.2 Nm

5 - Nut
- Qty 2

6 - Guide piece
7 - Bolt
- Qty 6
- 2 Nm

8 - Expanding nut
- Qty 6
