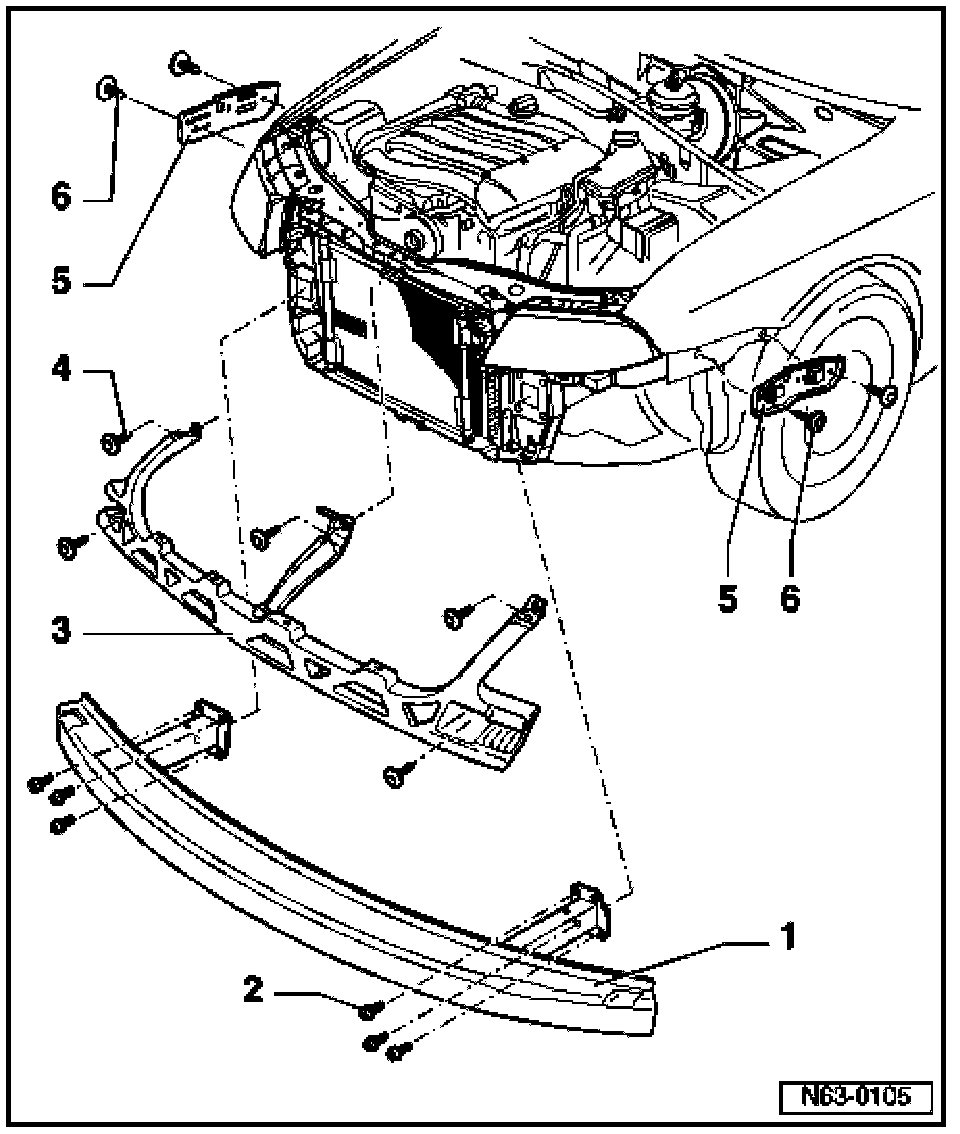

Front Bumper Cover Lower Assembly Components, Assembly Overview



Front Bumper Cover Lower Assembly Components, Assembly Overview 10.00 >







1. Bumper carrier
- Bumper carrier for US vehicles
2. Bolt
- Qty 6
- 40 Nm
3. Securing strip
4. Bolt
- Qty 5
- 1.2 Nm
5. Guide piece
6. Bolt
- Qty 2
- 2 Nm
