Lock Carrier And Front Bumper Reinforcement, Service Position

Lock Carrier And Front Bumper Reinforcement, Service Position --> 09.00







- Remove front bumper.
- Remove noise insulation.
- Remove intake air duct between lock carrier and air cleaner housing at lock carrier.

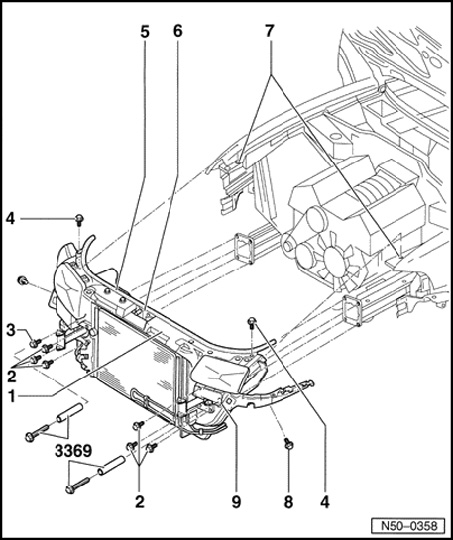

- Remove bolt - 3 - and install Special tool 3369 on right and left longmembers.
- Remove bolts - 2 - and - 4 - and pull lock carrier - 1 - toward front in area of Special tool 3369.
