Lock Carrier And Front Bumper Reinforcement, Removing And Installing

Lock Carrier And Front Bumper Reinforcement, Removing And Installing --> 09.00

Removing







- Remove noise insulation.
- Remove front turn signals.

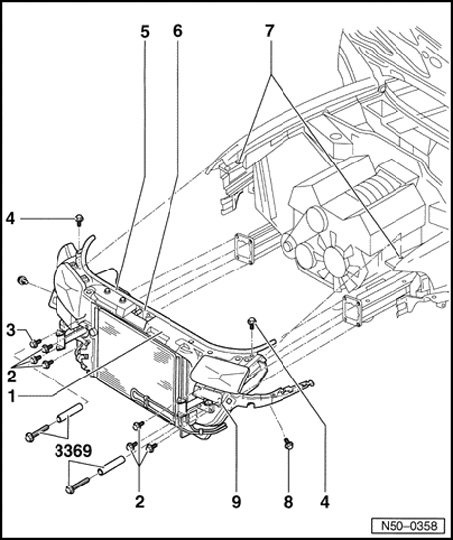

- Remove Bowden cable - 6 - from coupling and disconnect electrical harness connectors.
- Remove front bumper and remove side guide pieces from fender.
- Disconnect hoses for charge air cooler (only for corresponding engine versions).
- Drain engine coolant and disconnect coolant pipes.
- Remove condenser from lock carrier.
- Remove hydraulic oil cooler from lock carrier.
- ATF lines must be removed for vehicles with automatic transmission with ATF cooler.

CAUTION: If lines for A/C system and/or for coolant are disconnected, engine must no longer be started.

NOTE:
- Do not hang condenser and hydraulic oil cooler on hoses.
- Do not kink condenser and hydraulic line/hoses.

Installing
Installation is reverse of removal.
- Make sure that all plug- and hose connections are connected when re-assembling.
- Check ATF level and top off.
- Align lock carrier at longitudinal and between fenders.
- Adjust headlights.
