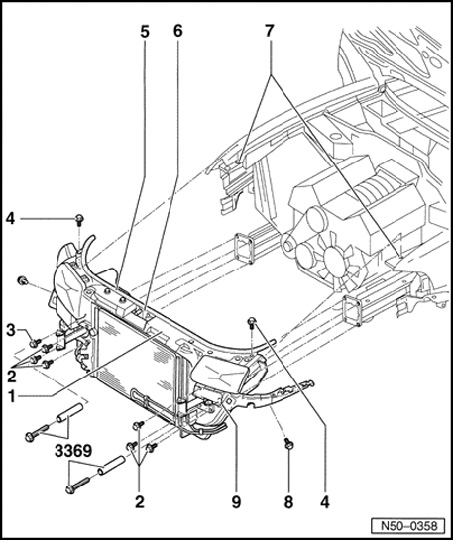

Lock Carrier And Front Bumper Reinforcement, Assembly Overview

Lock Carrier And Front Bumper Reinforcement, Assembly Overview --> 09.00







1 - Lock carrier and front bumper reinforcement
2 - Bolt
- Qty 6
- 50 Nm

3 - Bolt
- 50 Nm

4 - Bolt
- Qty 2
- 8 Nm

5 - Seal
6 - Bowden cable
7 - Hole in side panel
8 - Bolt
- Qty. 2
- 8 Nm

9 - Hole for special tool
- Special tools and equipment 3369
