Lock Carrier And Front Bumper Reinforcement, Removing and Installing

Lock Carrier And Front Bumper Reinforcement, Removing And Installing 10.00 -->

Removing







- Remove noise insulation.
- Remove Bowden cable and disconnect electrical harness connectors.

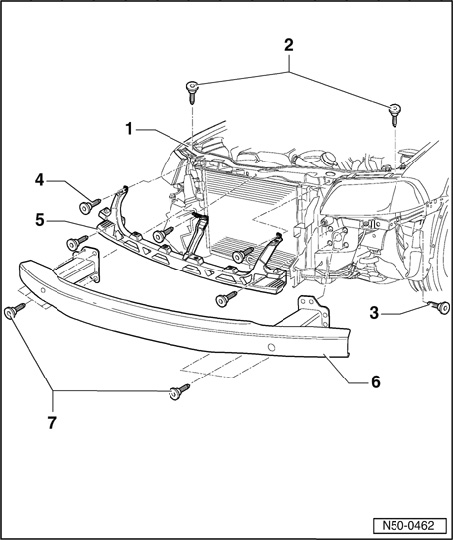

- Remove front bumper and remove side bracket with bolt - 3 - from fender.
- Disconnect hoses for charge air cooler (only for corresponding engine versions).
- Drain engine coolant and disconnect coolant hoses.
- Remove condenser from lock carrier.
- Remove hydraulic oil cooler from lock carrier.
- In vehicles with automatic transmission with ATF cooler, ATF lines must be removed.

CAUTION: If lines for A/C system and/or for coolant are disconnected, engine must no longer be started.

NOTE:
- Do not hang condenser and hydraulic oil cooler on hoses.
- Condenser and hydraulic lines may not be kinked.

Installing
- Tape off fender edges to prevent paint damage.

Installation is reverse of removal.

- Make sure that all plug- and hose connections are corrected installed when re-assembling.

- Check ATF level and top off.
- Align lock carrier at longmembers and between fenders.
- Adjust headlights.
