Lock Carrier And Front Bumper Reinforcement, Assembly Overview

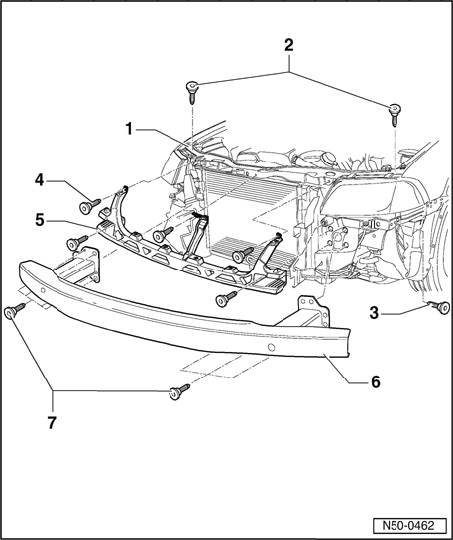

Lock Carrier And Front Bumper Reinforcement, Assembly Overview 10.00 -->







1 - Lock carrier with attachments
2 - Bolt
- Qty 2
- 8 Nm

3 - Bolt
- Qty.3
- 8 Nm

4 - Bolt
- Qty.5
- 6 Nm

5 - Mounting frame
6 - Bumper carrier
7 - Bolt
- Qty.7
- 50 Nm
