Front Bumper Cover, Removing and Installing

Front Bumper Cover, Removing And Installing 10.00 -->

Removing






- Remove radiator grille. Service and Repair

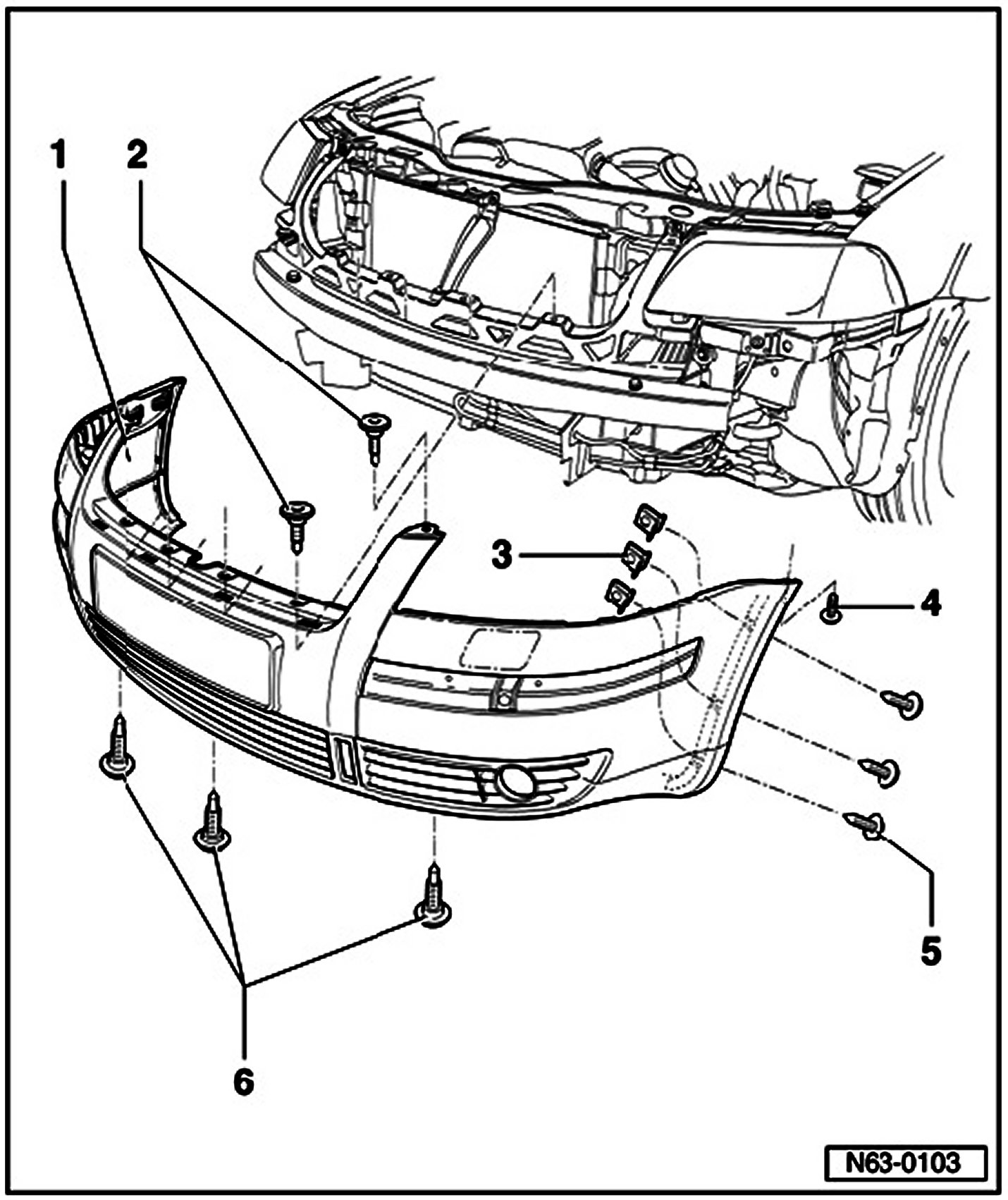

- Remove upper bolts -2-.
- Remove quick-release screw -6- from below.
- Remove bolts -5- and -4- (pointing upward) in area of wheel housing liner.
- With a second mechanic, pull cover parallel out of guides.
- Disconnect harness connectors of installed electrical components and hoses.

Installing
Installation is reverse of removal.
- Make sure gaps are parallel and gap dimensions.

NOTE: Headlight lens must lie at bottom on protective profile and bumper cover. Loosening bolts for headlight and adjusting Adjustments
