Seat Adjustment, on Board Diagnostic (OBD)
>>
Scan Tool Testing
>>
Measuring Value Blocks
>>
Evaluating Measured Value Blocks
>>

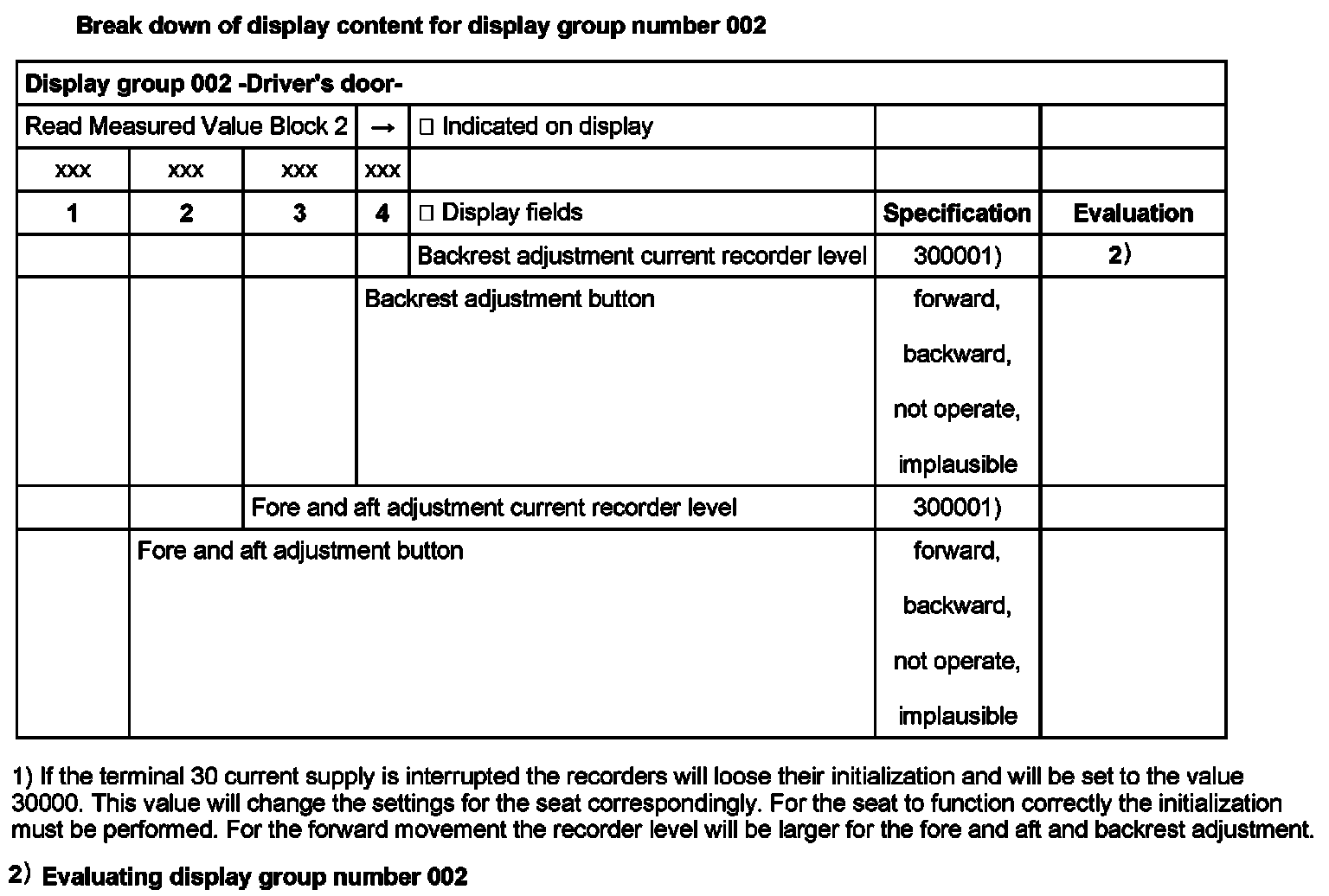

Display Group 002
Display Group 002
Display Group 002

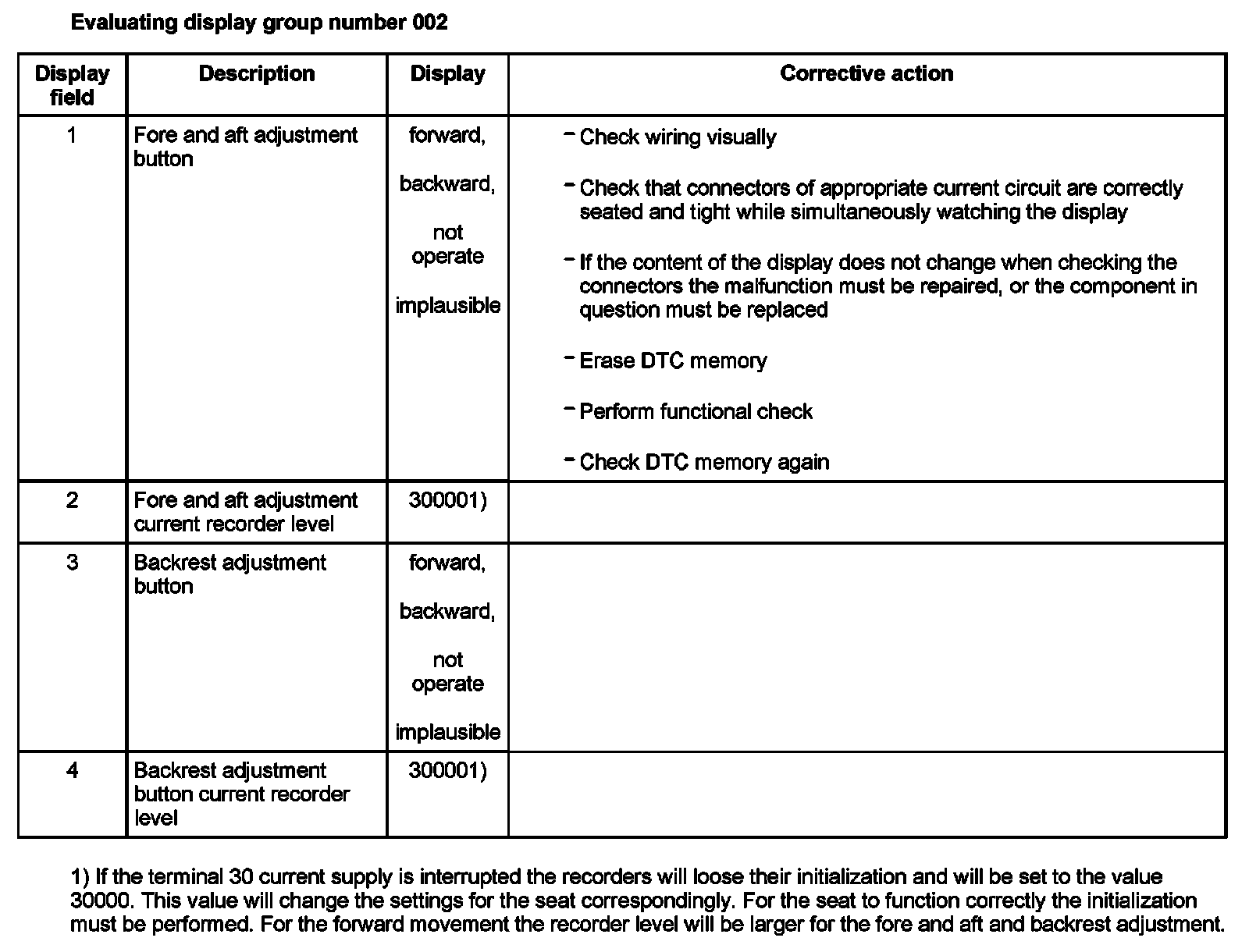

Evaluating display group number 002
