Unlocking Options



Unlocking Options

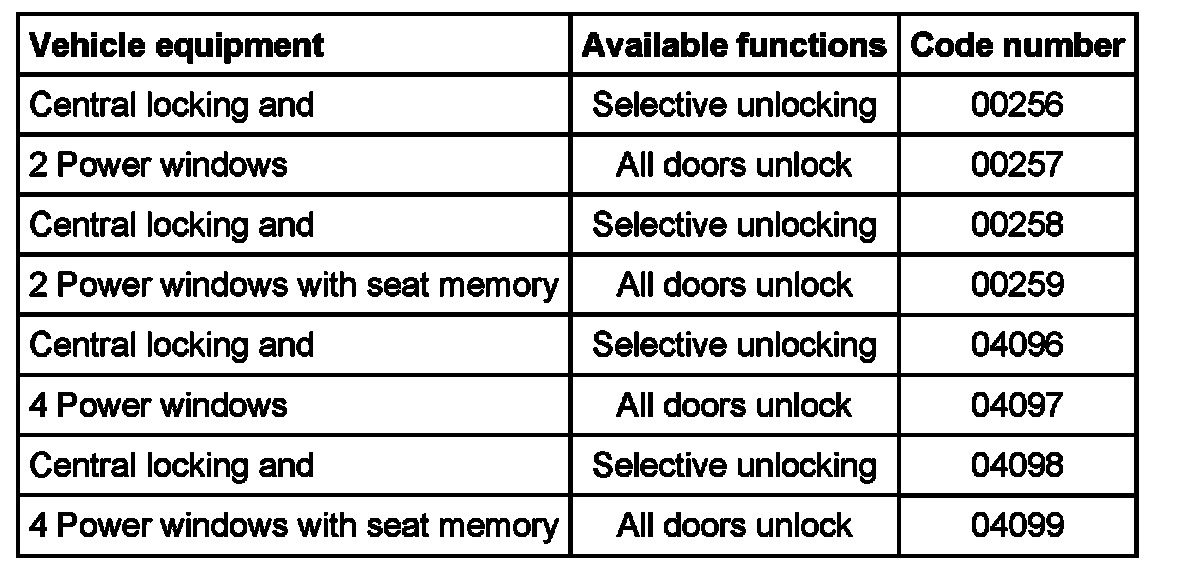

- Selective unlocking
- All doors unlock simultaneously
- Connect V.A.G 1551/1552 Scan Tool to Data Link Connector (DLC).

Vehicles with power windows
- Enter address word 46, Comfort System and select function 07, Code Control Module.
