Treble Speaker -R20- / -R22- In Front Doors, Removing

Treble Speaker -R20- / -R22- In Front Doors, Removing

The front treble speaker is integrated into the forward window trim (by the outside mirror mounting) on both front doors. The trim and speaker are constructed as a single unit and cannot be separated.

Removing
- Remove appropriate front door panel.
- Disconnect electrical harness connection to speaker.

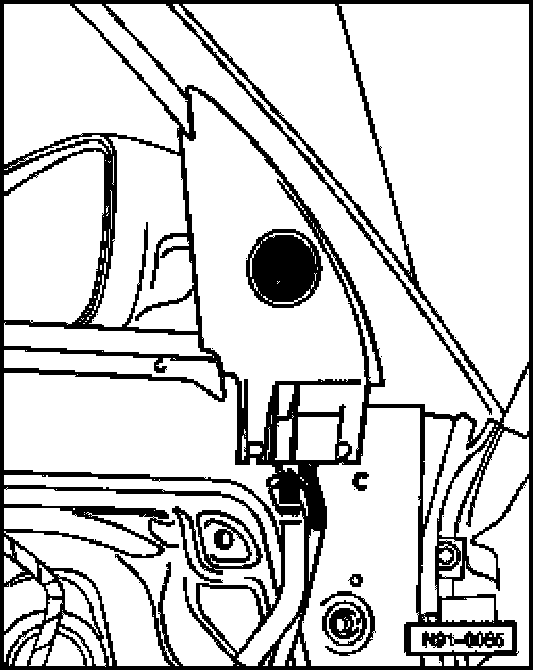

- Carefully push upward (arrow) and remove trim/speaker.

CAUTION: To avoid damage, do not pull or pry out window trim. Only push upwards to disengage the inner locating tab.
