Speaker System, Overview

Speaker System, Overview







NOTE:
- Vehicles with radio system "Premium V - Monsoon and Premium VI - Monsoon" are equipped with high power handling speakers specifically designed for the "Monsoon" system.
- When replacing speakers, be aware of vehicle model year and radio system when referring to parts catalog.

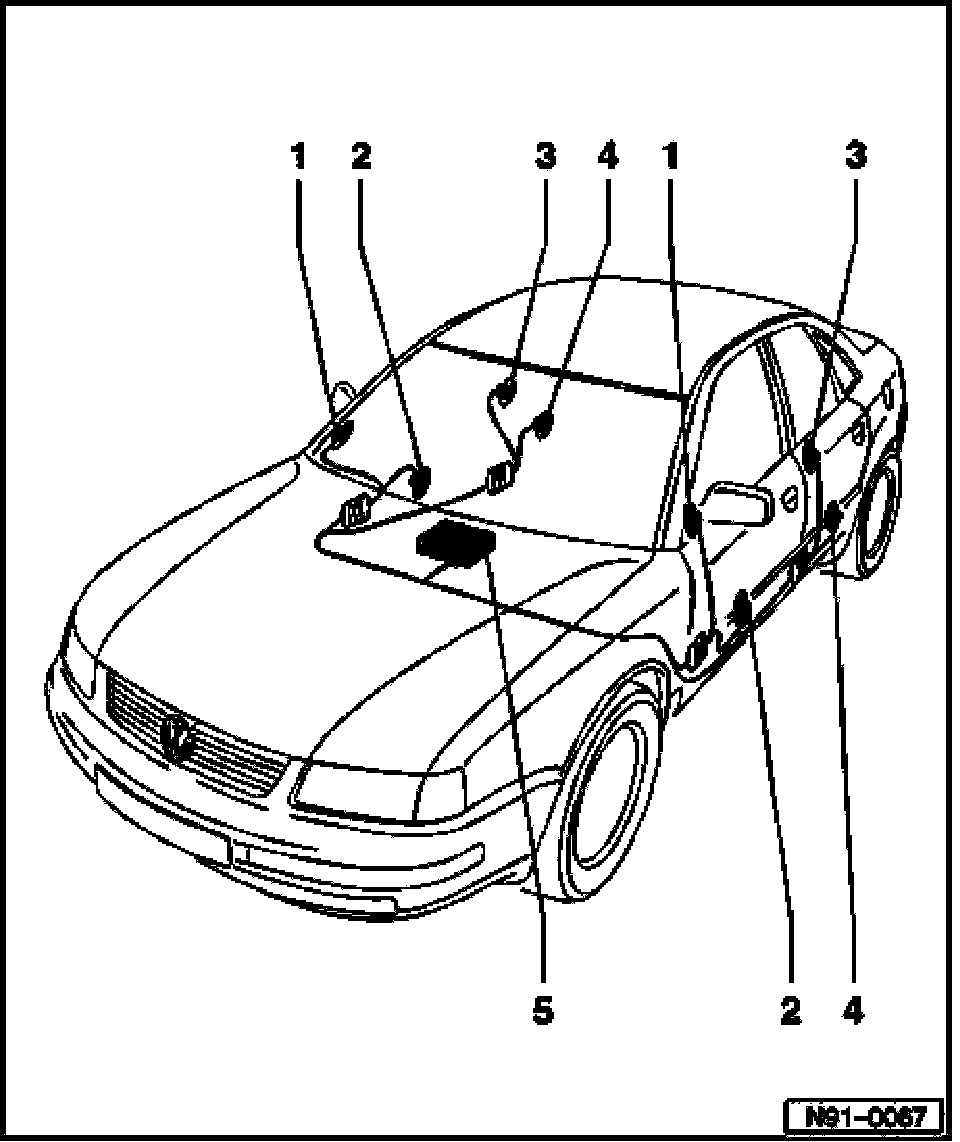

1. Treble Speaker -R20- / -R22- in front doors
- Integrated with window trim
2. Bass Speaker -R21- / -R23- in front doors
3. Treble Speaker -R14- / -R16- in rear doors
- Integrated with inside door handle trim
4. Bass Speaker -R15- / -R17- in rear doors
5. Radio -R-
- In center of instrument panel
