Bass Speaker -R15- / -R17- / -R21- / -R23- In Doors, Removing

Bass Speaker -R15- / -R17- / -R21- / -R23- In Doors, Removing

Removing
- Remove appropriate front or rear door panel.
- Disconnect electrical harness connection to speaker.
- Unclip power window switch from door handle trim and remove trim/speaker.

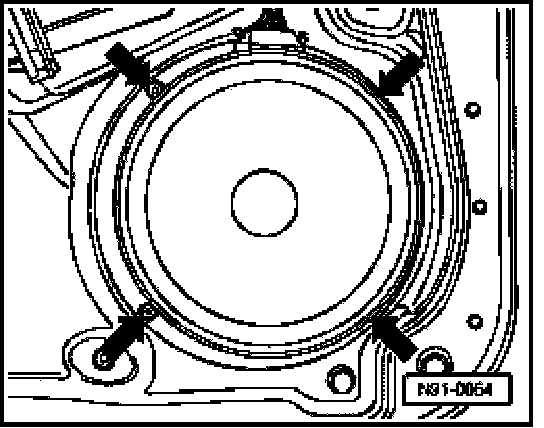

- Carefully drill out rivets at speaker frame -arrows- and remove speaker from opening.

CAUTION:
- To prevent corrosion, ensure that all metal particles from drilling are removed from inside the door.
- If paint on door frame is damaged during drilling, touch-up immediately.

Installing
- Mount speaker with locally available rivets of the proper dimension.
- Reconnect all electrical connections and reinstall all door panel trim, making sure the foam gasket between the speaker and door panel is in place.
