Radio/Stereo: Service and Repair

Radio, Removing And Installing

NOTE: If radio is exchanged or replaced:
- Anti-theft security code for new unit must be entered before use. Be sure to advise customer of new security code.
- Confirm radio coding for sound system functions using VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Testing and Service System in mode "Guided Fault Finding".
- Coding must be performed to account for presence of CD Changer (if installed), Monsoon/DSP system (where applicable) and interior sound field differences between models (where applicable).

Special tools, testers, and auxiliary items needed
- Recommended: Radio removal tool JC4225.

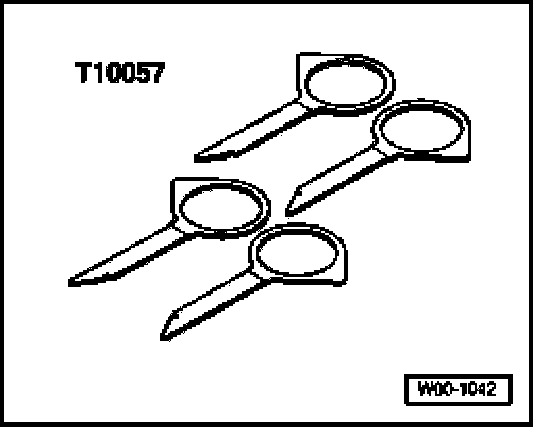

- Optional: Radio removal tool set T10057 (two identical pieces).

NOTE: Individual tools are marked "Top L" for and both left upper and lower openings and "Top R" for both right upper and lower openings.

Removing

CAUTION: Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

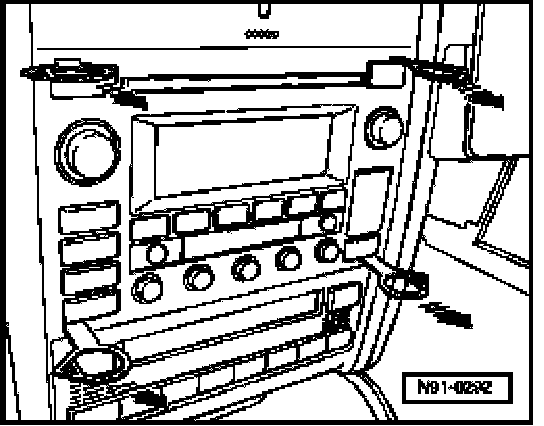

- Insert tools into openings on face of radio -arrows- until they engage.

NOTE: Use of separate tools T10057 is illustrated here. Procedure is essentially the same for tool JC4225 where all release prongs are integrated into a frame.

- Pull radio from instrument panel opening using handles on tools T10057 or frame of tool JC4225.
- Disconnect electrical connections and antenna cable connection.

NOTE: Radio must be pulled straight out from opening. Do not twist or tilt tools while removing.

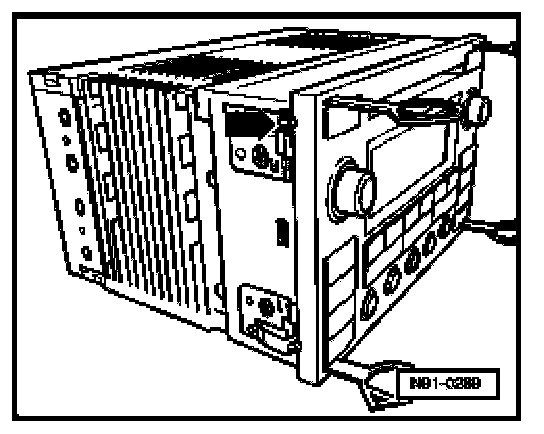

- To remove tool from radio, release locking tabs -arrow- on side of radio when removed.

Installing
- Reconnect electrical connections and antenna cable connection.
- Insert radio into instrument panel opening and push straight in until locking tabs engage.

CAUTION: When installing radio unit, do not press on display or control buttons in order to engage locking tabs. Damage will result.

- Input anti-theft security code.
- Code (radio) sound system functions using VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Testing and Service System in mode "Guided Fault Finding".

NOTE: Radio sound system coding must be performed in order to account for presence of CD Changer (if installed), Monsoon/DSP (where applicable) and interior sound field differences between models.
