Programming and Relearning

Transport Mode, Deactivating

Vehicles arrive at Dealerships with the Telematic system in Transport Mode. This limits battery power drain during transport and storage.

Transport Mode must be deactivated using an OBD program function before delivery to the customer.

Deactivate Telematics Transport Mode and enable Telematics function by using VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Testing and Service System in operating mode 'Vehicle Self Diagnosis".

Special tools, testers and auxiliary items needed

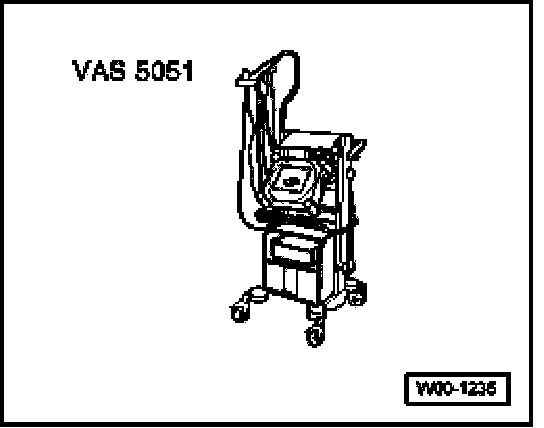

- VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Testing and Service System
- Cable adapter VAS 5051/1 or VAS 5051/3

- Connect VAS 5051 with adapter cable to Data Link Connector (DLC) and select operating mode "Self Diagnosis"
- Select vehicle system (address word) "75 -Telematics"
- Select Function "10 - Adaptation" and press ">" to confirm
- Locate Channel 3
- Enter value "0" (Deactivate Transport Mode - Enable Telematics system)
- Remaining steps as prompted by tester.
