GPS/Telematics Antenna - Passat Wagon, Removing and Installing

GPS/Telematics Antenna - Passat Wagon, Removing And Installing

Removing

CAUTION: Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Unclip rear headliner trim and left/right D-pillar trim
- Carefully lower headliner at rear slightly in order to access antenna cables etc..

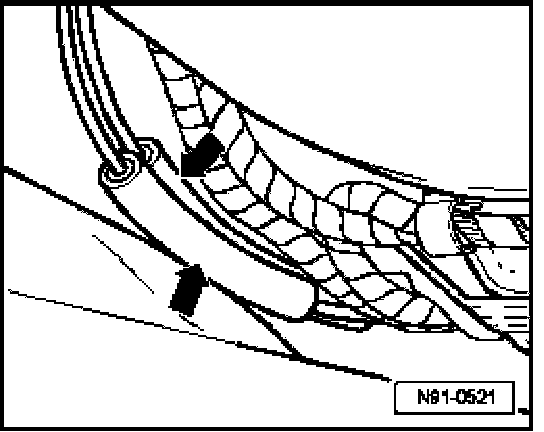

- Open foam insulator surrounding the three antenna cable connections -arrows- and separate connections.

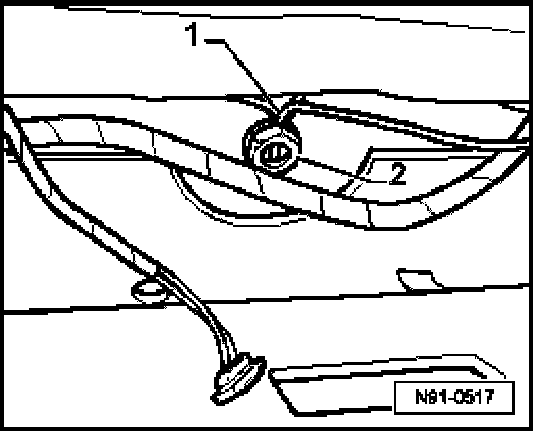

- Remove nut -2- and remove antenna.

Installing
Install in reverse order of removal, noting the following:

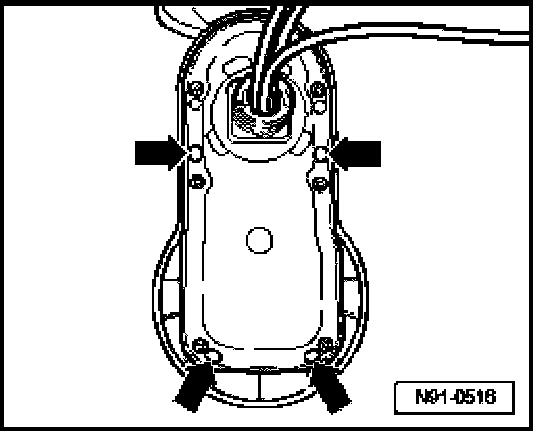

- Ensure gasket is properly oriented in relation to relief areas -arrows- on antenna base







- Ensure stress free routing of antenna cables -1- through nut -2-.
- Apply contact grease in area where nut/serrated washer contacts roof sheet metal.
