Anti-Theft Immobilizer Control Module -J362-, Replacing

Anti-theft Immobilizer Control Module -J362-, Replacing

Replacement of instrument cluster with integrated immobilizer control module functions requires replacement unit to be adapted to the vehicle's Engine Control Module (ECM). The following OBD program steps initiate this procedure:

Special tools, testers and auxiliary items needed

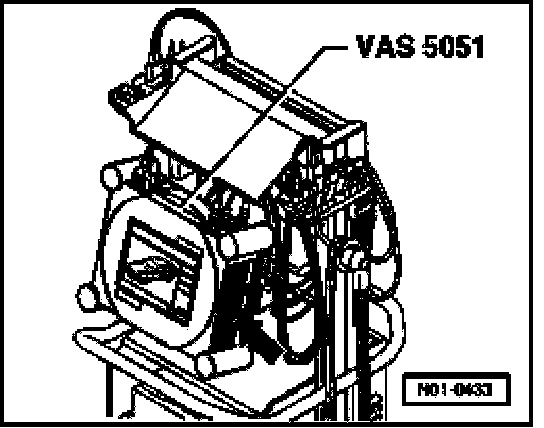

- VAS 5051 Vehicle Diagnostic Testing and Information System
- Optional: VAS 5052 Vehicle Diagnostic and Service System.

VAS 5051/5052, connecting
- Switch off all electrical consumers.
- Engage parking brake.
- Automatic transmission: Selector lever in "N" or "P" position.
- Manual transmission: Selector lever in "Neutral" position.

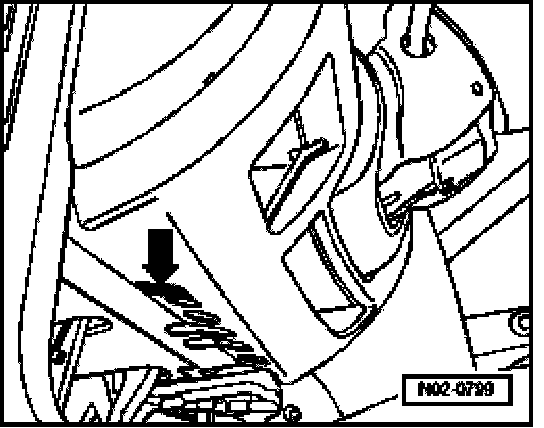

- With ignition switched off, connect VAS 5051/5052 with adapter cable to Data Link connection (DLC) located under instrument panel, left.







- Switch on tester -arrow-
- Switch on ignition
- Switch off all electrical consumers.
- Select mode "Guided Fault Finding"
- Enter appropriate model, equipment and model year information and press ">" to confirm.

After all Control Modules have been registered and DTC memories checked,
- Select "Go to"
- Select "Function / Component Selection"
- Select "Body"
- Select "Electrical System"
- Select "01-Systems capable of self-diagnosis"
- Select "Immobilizer"
- Select "Immobilizer functions"
- Select "Adapt dash panel insert".
- Forward with" D " button
- Follow/perform selected OBD program steps as prompted by tester.
