Alarm Horn: Service and Repair

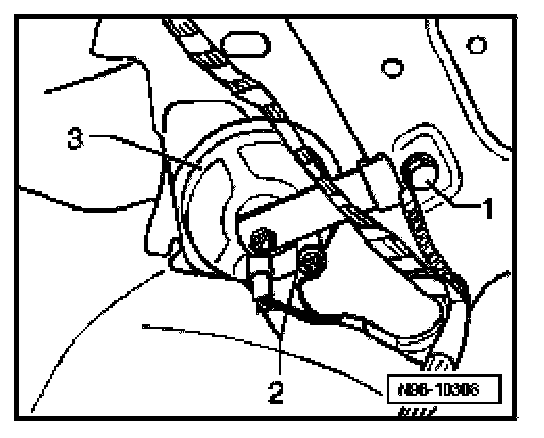

Alarm Horn -H8-, Removing And Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

- Remove left luggage compartment trim







- Disconnect electrical connections -2-
- Remove bolt-1-.
- Remove horn -3-.

Installing
Install in reverse order of removal, noting the following:
- Torque bolt -1- to 16 Nm.
