Sensor For Transmission RPM -G182-, Replacing

Sensor for transmission RPM -G182-, replacing, 01V, 5 SPD. A/T (FWD)

Removing
- Remove valve body.





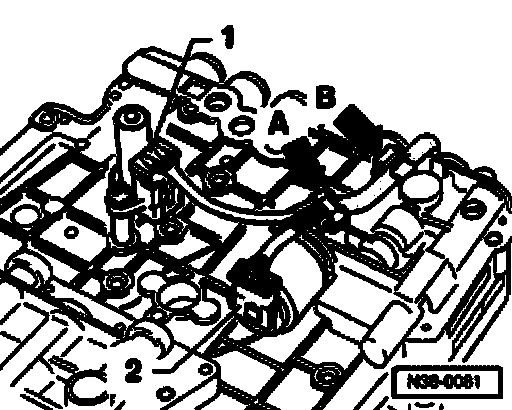

- Turn valve body over, and unplug connector from sensor for transmission RPM -1-.





- Unscrew bolts and remove sensor for transmission RPM -1- from valve body.

Installing
Installation position:
The side of the sensor with the plug contacts faces toward the center of the valve body.

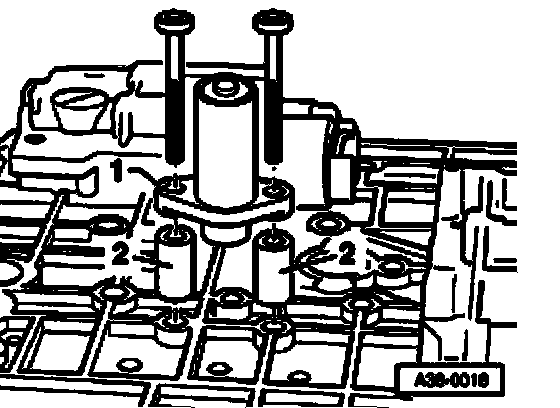

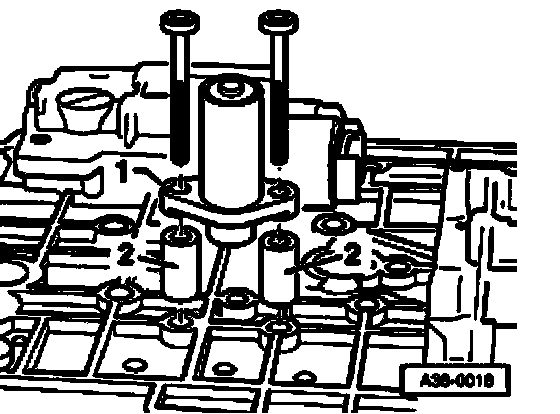

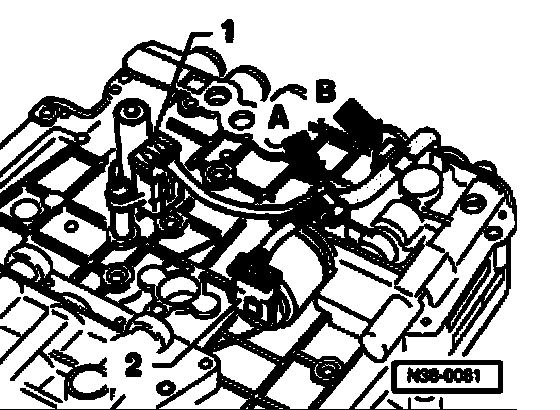

- Install sensor for transmission RPM -1- with spacer -2- (height: 20 mm) and tighten to prescribed toque.





- Install connector to sensor for transmission RPM -1-.
- Install valve body.
- Fill with ATF; check ATF level and top off.

Transmissions with hydraulic control E18/2

Removing
- Remove valve body.





- Unbolt sensor for transmission RPM signal -A- from transmission.

Installing
- Attach sensor for transmission RPM -A- to transmission with bolt -B- and tighten.

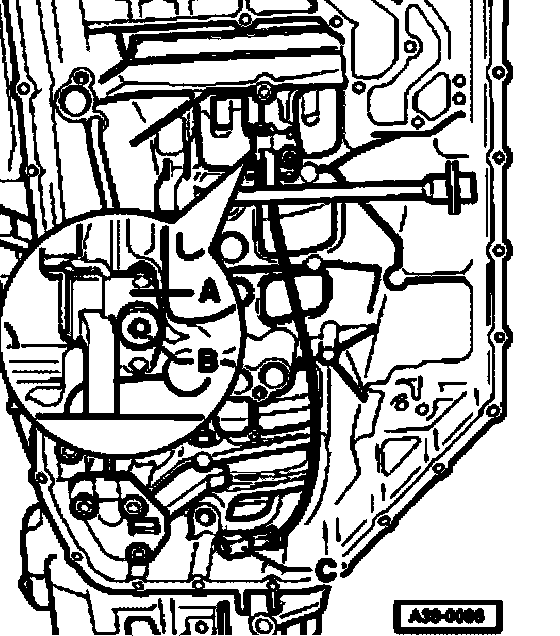

- So that the wire does not become trapped when installing the valve body, route the wire with connector -C- according to the diagram.
- Install valve body.
- Fill with ATF; check ATF level and top off.
