Shift Interlock Solenoid: Locations

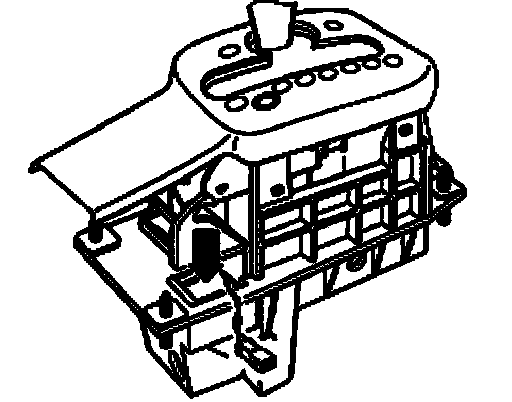

Fig. 11 Shift lock solenoid -N110-,

Location: The shift lock solenoid is located in the selector lever housing -arrow-.
