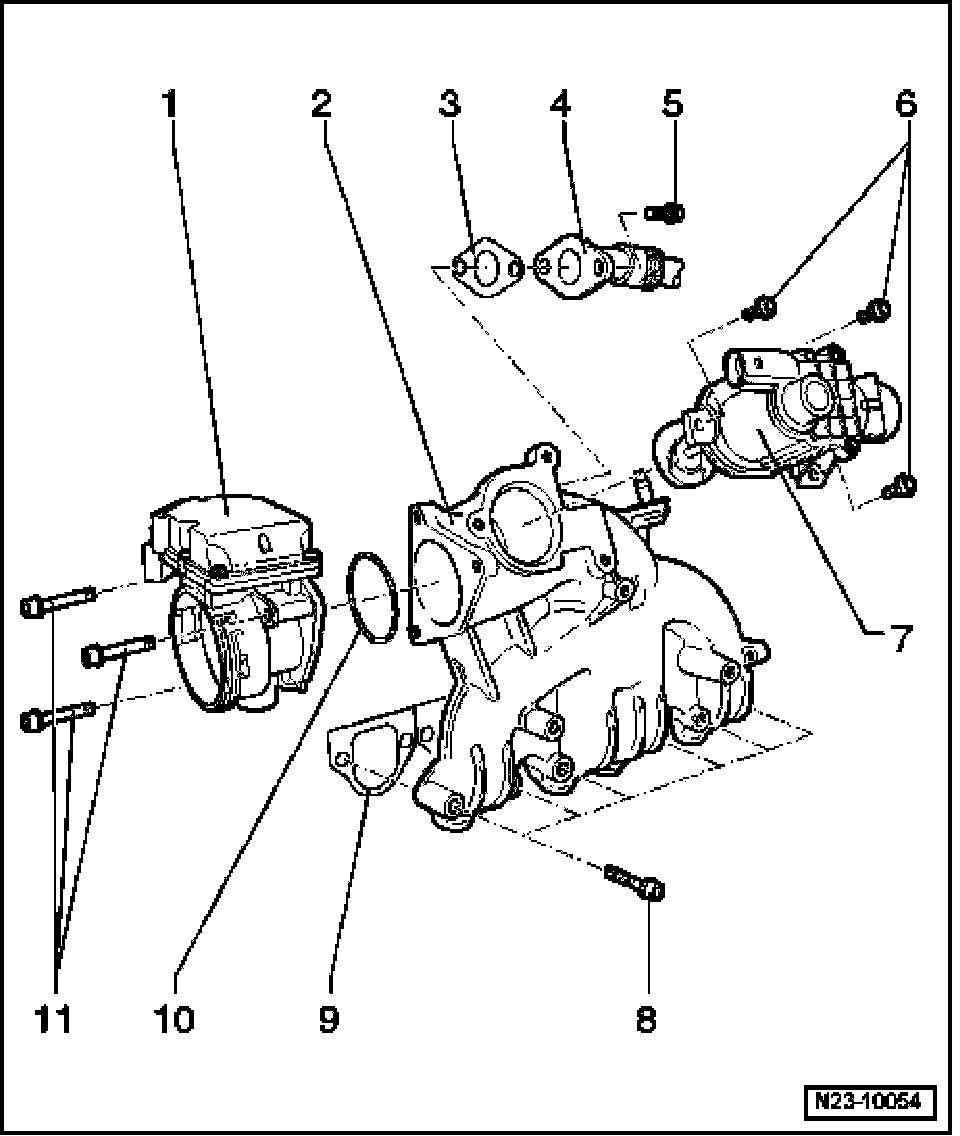

Intake Manifold With Motor For Intake Flap, Servicing

Intake Manifold With Motor For Intake Flap, Servicing







1. Motor for intake flap -V157-
2. Intake manifold
3. Gasket
- Always replace
4. Connection tube
- For Exhaust Gas Recirculation (EGR) system
5. 25 Nm
6. 10 Nm
7. EGR Vacuum Regulator Solenoid Valve -N18-* with Potentiometer for EGR -G212-*
- Before installing, check sealing surfaces on intake manifold for soiling and clean if necessary.
- If EGR vacuum solenoid regulator valve with potentiometer for EGR was replaced, a basic setting must be performed.
- Check EGR Vacuum Regulator Solenoid Valve -N18-.
- Check Potentiometer for EGR -G212-.
8. 25 Nm
9. Gasket
- Always replace
10. Seal
- Always replace
11. 10 Nm
