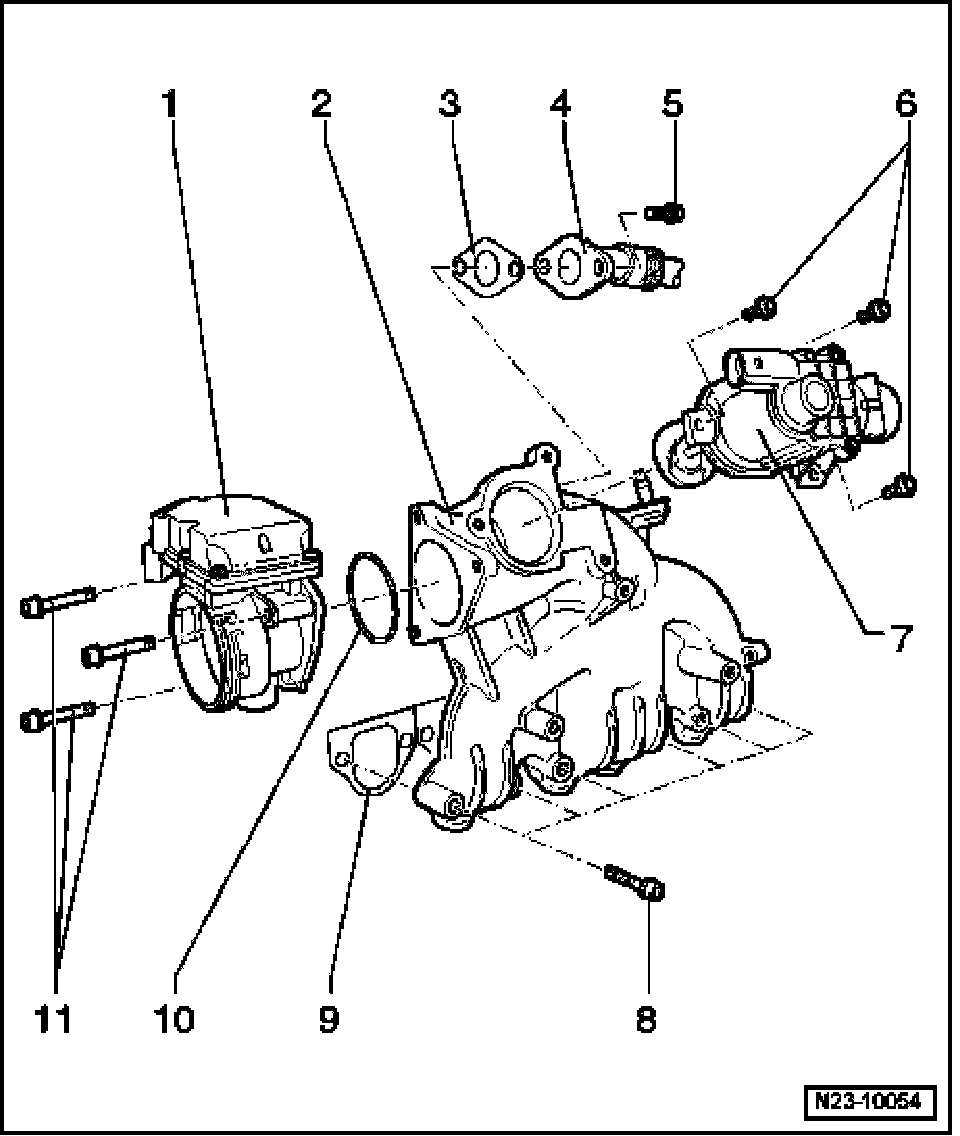

Intake Manifold With Motor For Intake Flap, Assembly Overview

Intake Manifold With Motor For Intake Flap, Assembly Overview

When the engine is switched off, the intake manifold flap closes for approx. 3 seconds and then opens again. This reduces the stop jolt.







1. Motor for intake flap -V157-
2. Intake manifold
3. Seal
- Replace
4. Connecting pipe
- For Exhaust Gas Recirculation (EGR) system
5. 25 Nm
6. 10 Nm
7. Potentiometer for EGR -G212-
8. 25 Nm
9. Seal
- Replace
10. Oil seal
- Replace
11. 10 Nm
