Oxygen Sensor and Oxygen Sensor Control, Checking

Oxygen Sensor And Oxygen Sensor Control, Checking

NOTE: Use only gold-plated terminals when servicing terminals in harness connector.

Recommended special tools and equipment
- V.A.G 1526 multimeter or V.A.G 1715 multimeter
- V.A.G 1594 connector test kit
- Wiring diagram

Requirements







- The respective fuses of Diesel-Direct fuel injection system must be OK:
- Battery voltage must be at least 11.5 volts.
- All electrical consumers such as, lights and rear window defroster must be switched off.
- For vehicles with automatic transmission, selector lever must be in position -P- or -N-.
- Parking brake must be engaged.
- If vehicle is equipped with an A/C system, it must be switched off.
- Ground (GND) connections between engine and chassis must be OK.
- Exhaust system must be properly sealed between catalytic converter and cylinder head.
- Coolant temperature must be at least 80 degrees C, Diagnostic mode 1: Check measured values; PID 5, Coolant temperature. Diagnostic Mode 1: Check Measuring Values
- Oxygen sensor heater for oxygen sensor must be OK, check. Oxygen Sensor Heater, Checking

Checking primary voltage

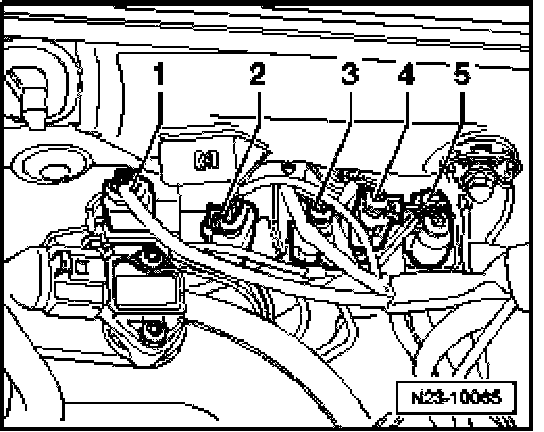

- Disconnect 6-pin harness connector -1- to Heated Oxygen Sensor (HO2S) -G39-.

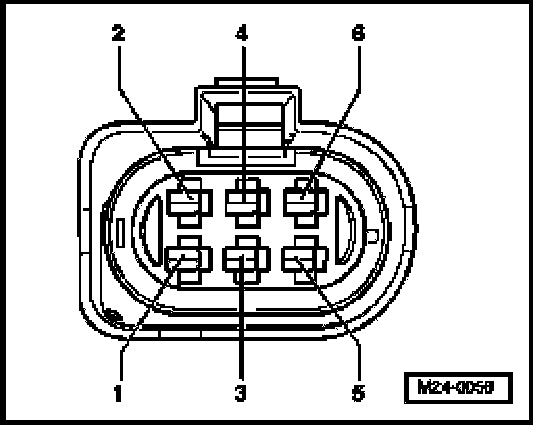

- Connect multimeter to terminals 2 + 6 of connector to Engine Control Module (ECM) for voltage measurement.
- Switch on ignition and measure primary voltage.
Specified value (after approx. 8 seconds): 0.400 to 0.500 Volts
- Switch ignition off.

If specified value is obtained:
- Replace Heated Oxygen Sensor (HO2S) -G39-.
- Erase DTC memory of Engine Control Module (ECM), Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes

If specified value is not obtained:
- Check wires to Engine Control Module (ECM) according to wiring diagram.

Check wires to control module
- Connect test box (1598/42) to Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248- wiring harness using adapter cable (V.A.G 1598/39-2), connecting test box for wiring test. Test Box, Connecting For Wiring Test







- Check wires between test box and 6-pin connector for open circuit according to wiring diagram.

Terminal 1 + socket 32
Terminal 2 + socket 10
Terminal 5 + socket 54
Terminal 6 + socket 77

Wire resistance: max. 1.5 Ohms

- Check wires for short circuit to each other, to vehicle Ground (GND) and to B+.
Specified value: Infinite Ohms

If no malfunctions are found in wires:
- Replace Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248-.
