Glow Plug System, Checking - II

Glow Plug System, Checking

CAUTION: The ceramic glow plugs are very sensitive to impacts and bending. For this reason, any glow plugs that have been dropped (even from a short distance of approx. 2 cm) must not be used under any circumstances, even if there appears to be no external damage. The installation instructions must be followed exactly, otherwise there is a dangerous risk that the plug may break and thereby cause engine damage.

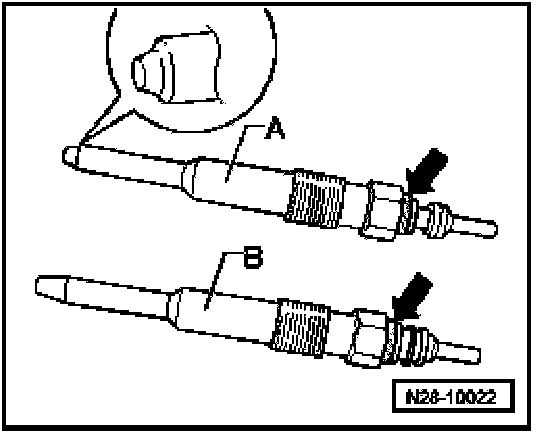

Visual characteristics of the ceramic glow plugs

- A - = Ceramic glow plug, phased step at the tip (see magnification), white color coding - arrow -.

- B - = Metal glow plug, green color coding - arrow -.

Removing, installing and checking the ceramic glow plugs.
