Connecting Rod: Specifications

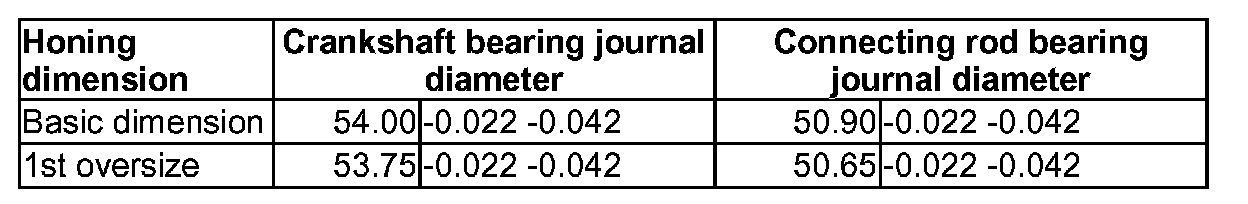

Crankshaft dimensions
(Dimensions in mm)

Connecting rod bolt
Tightening torque 30 Nm plus an additional 1/4 turn (90°)
