Shift Rod and Pivot Rod, Servicing

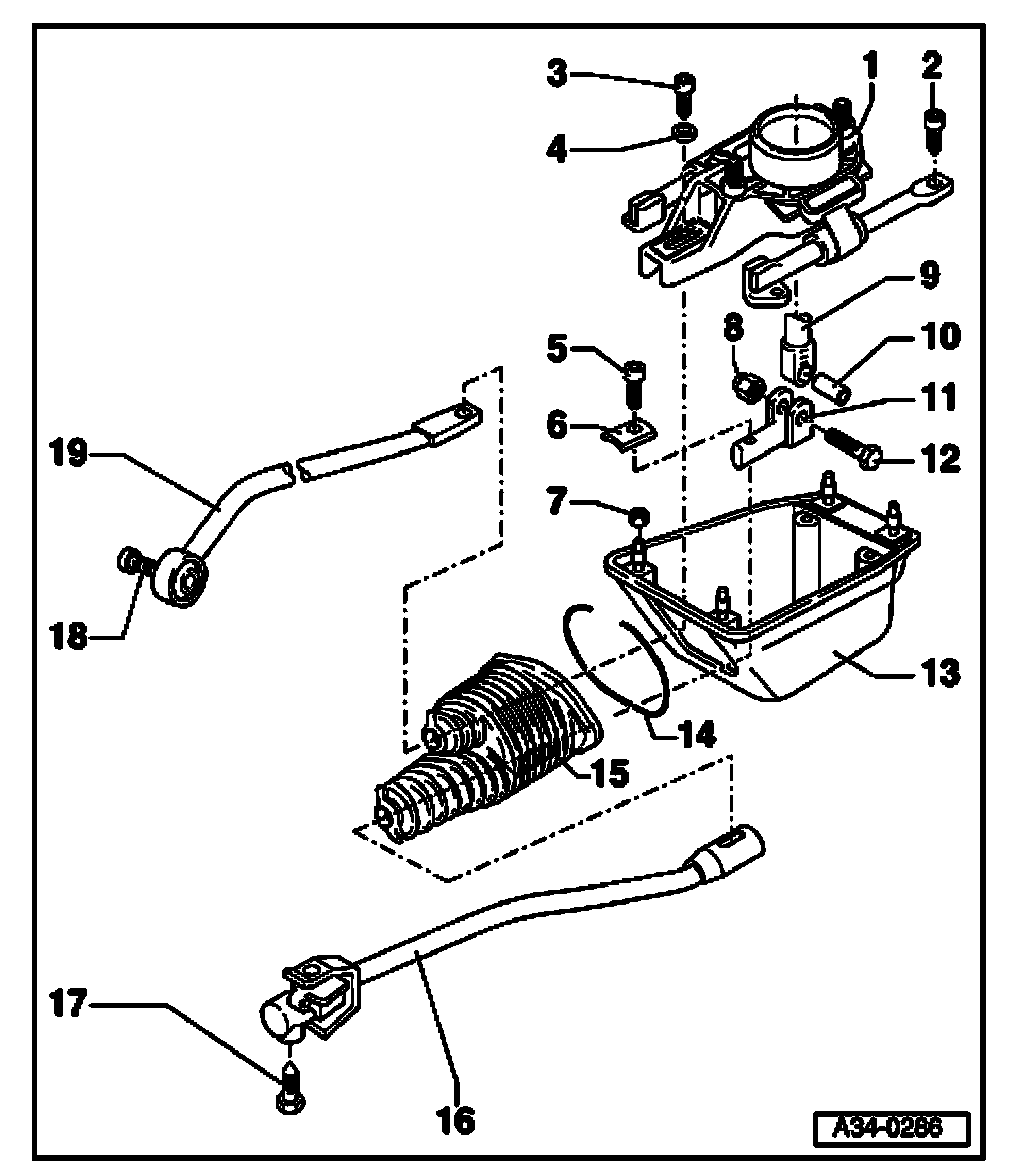

Shift rod and pivot rod, servicing, 012/01W, 5 SPD. M/T





1. Shift lever bushing
2. Bolt, 6 Nm
^ Qty. 4
^ For shift lever bushing at shift mechanism housing

3. Socket head bolt, 25 Nm
4. Washer
5. Socket head bolt, 25 Nm
6. Clamping piece
7. Hex nut, tighten to 10 Nm
^ Qty. 4
^ Shift mechanism housing to body

8. Hex nut, tighten to 10 Nm
^ Self-locking
^ Always replace

9. Shift lever
10. Spacer tube
11. Shift fork
12. Bolt
13. Shift mechanism housing
14. Tensioning ring
15. Bellows
^ Before removing and installing, remove catalytic converter and front heat shield

Note:
^ Carefully pull bellows over shift rod
^ Place bellows on markings of shift rod and pivot rod

16. Shift rod
^ With shift coupling

17. Hex bolt, 23 Nm
^ Self-locking
^ Always replace

18. Socket head bolt, 40 Nm
^ Cannot be removed from pivot rod bushing

19. Pivot rod
