Installed Position of Manual Transmission

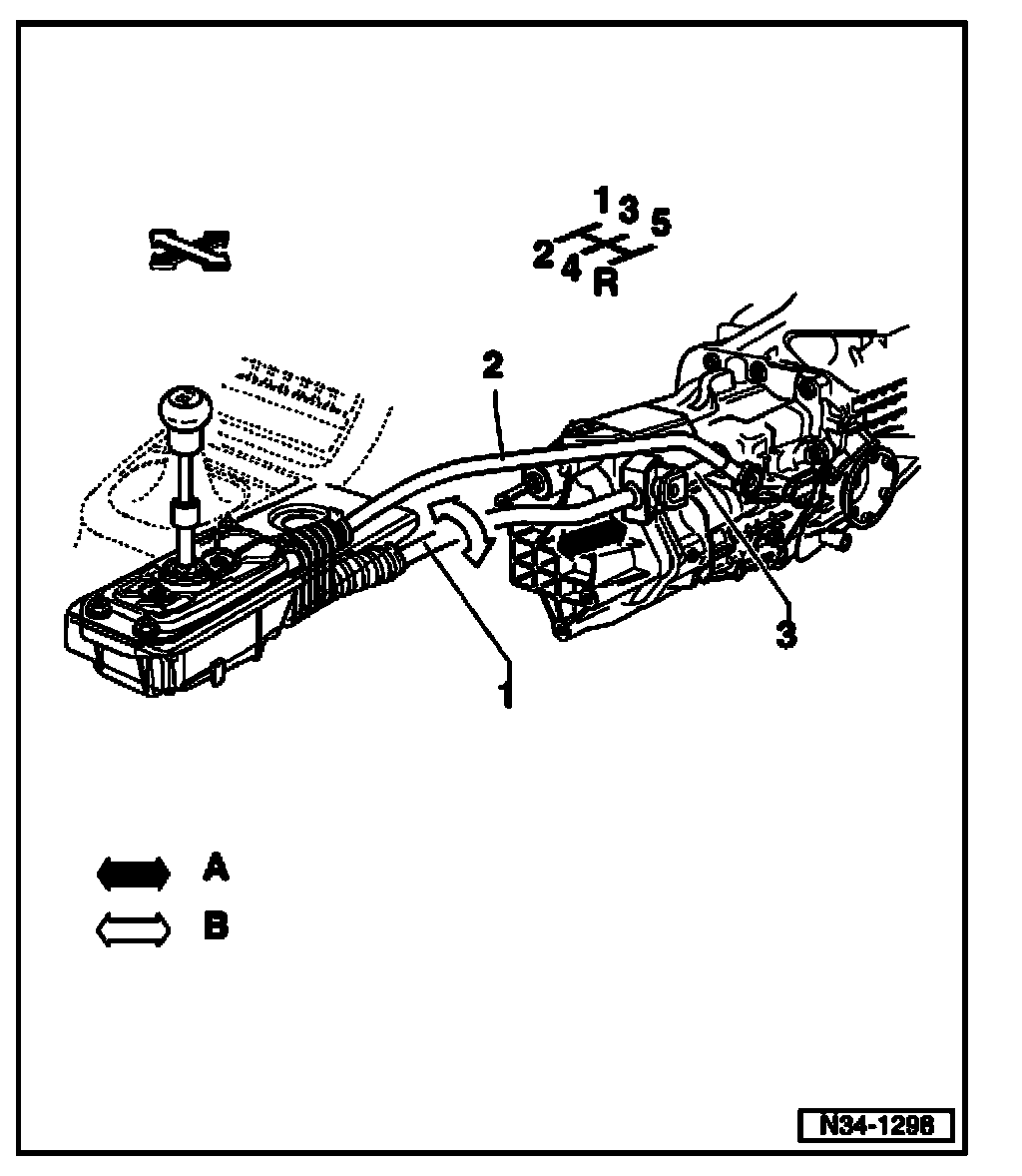

Installed position of manual transmission, 012/01W, 5 SPD. M/T





1. Shift rod
2. Pivot rod
3. Transmission shift lever
- Arrow A - shift motion
- Arrow B - selector motion

Note:
^ Lubricate beating areas and slide surfaces with polycarbamide grease G 052 142 A 2.

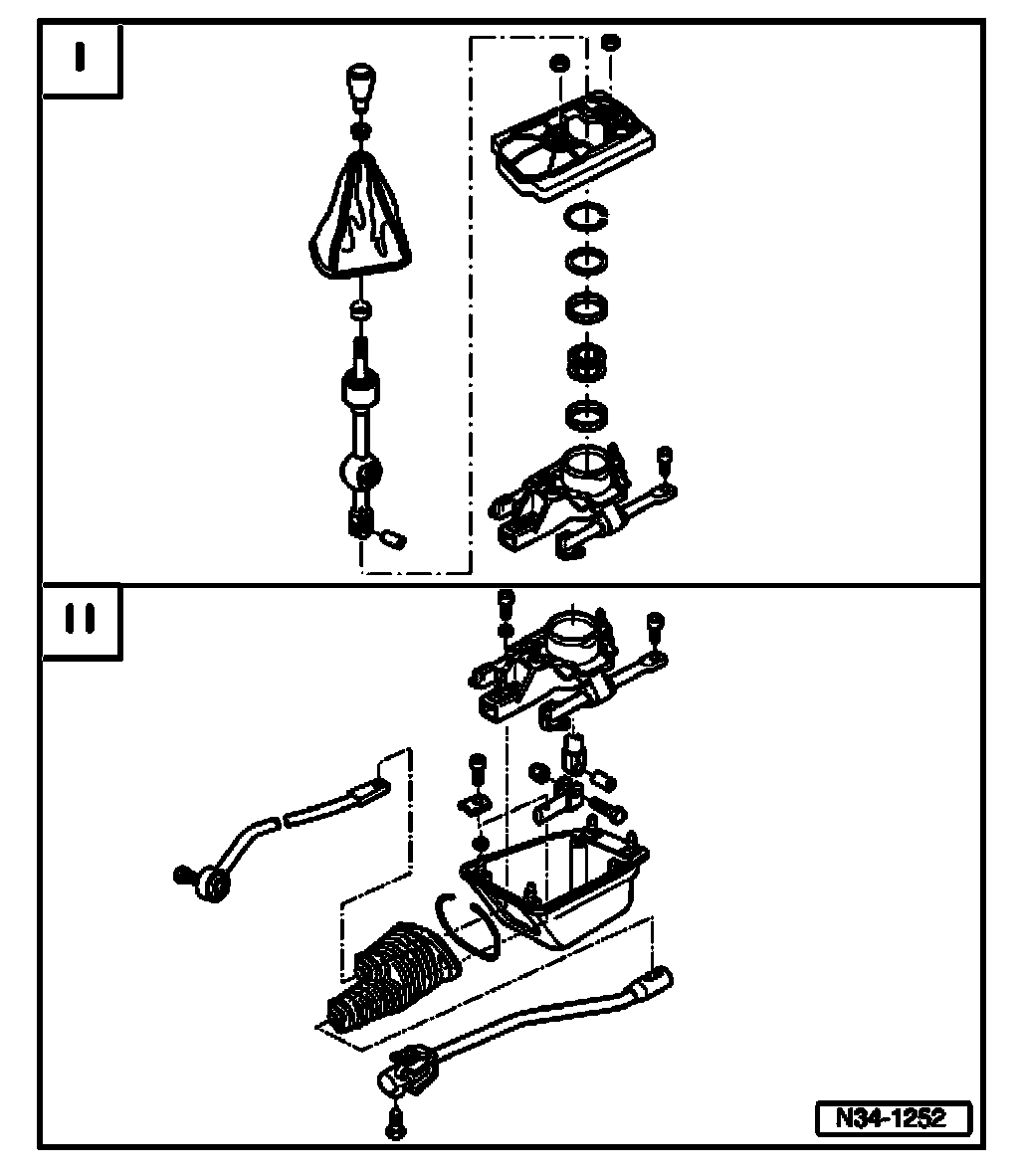

I. Shift lever and shift lever bushing, servicing
II. Shift rod and pivot rod, servicing
