Position of Selector Elements With Hydraulic Control E17

Position of selector elements with hydraulic control Type E17, 01V, 5 SPD. A/T (FWD)

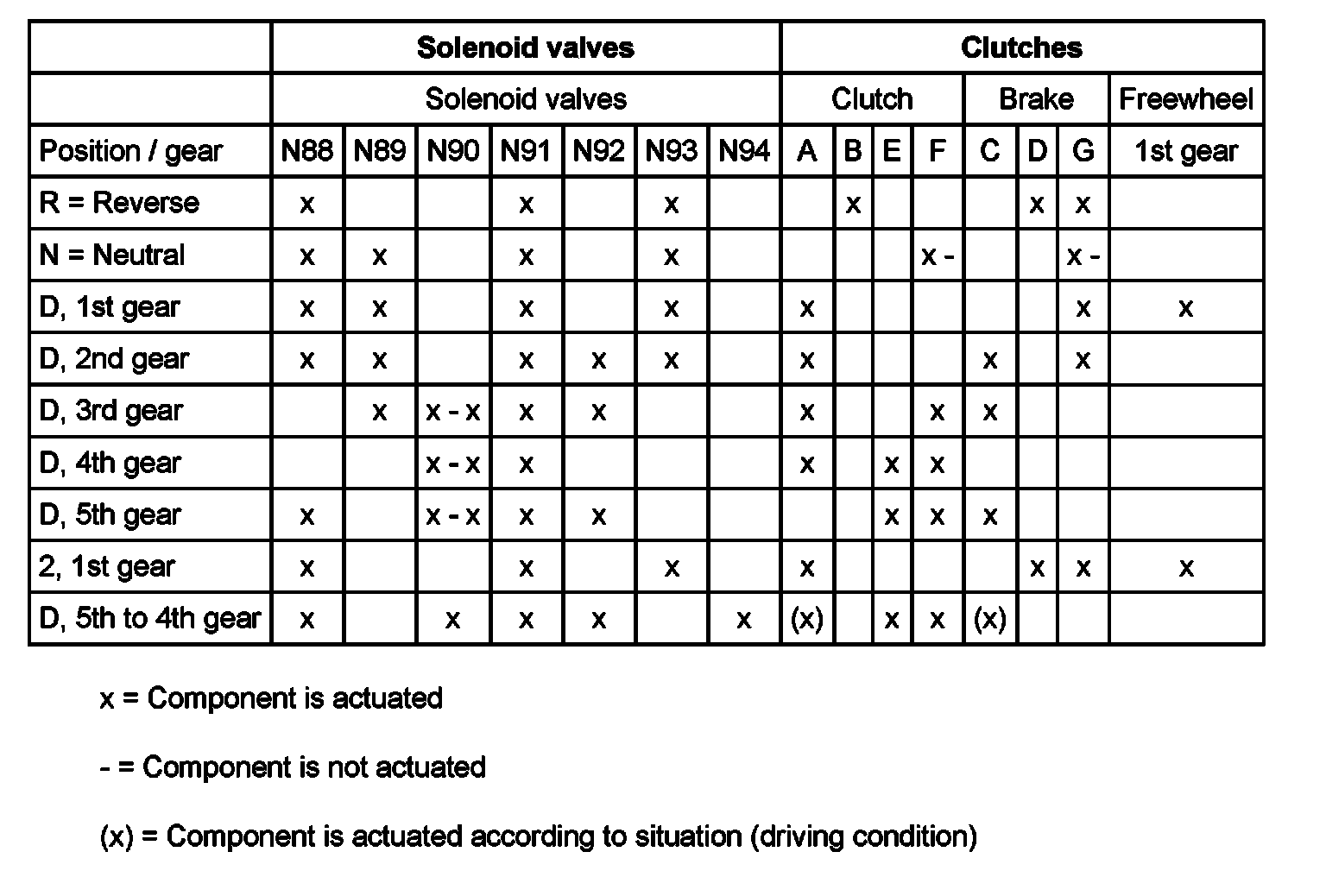

^ If complaints are made about poor acceleration and speed performance or about the drive in general, the following table can be used to determine which selector elements operate in which gears. Using a process of elimination, faulty selector elements can be therefore be identified.
