Tower "I", Assembly Overview

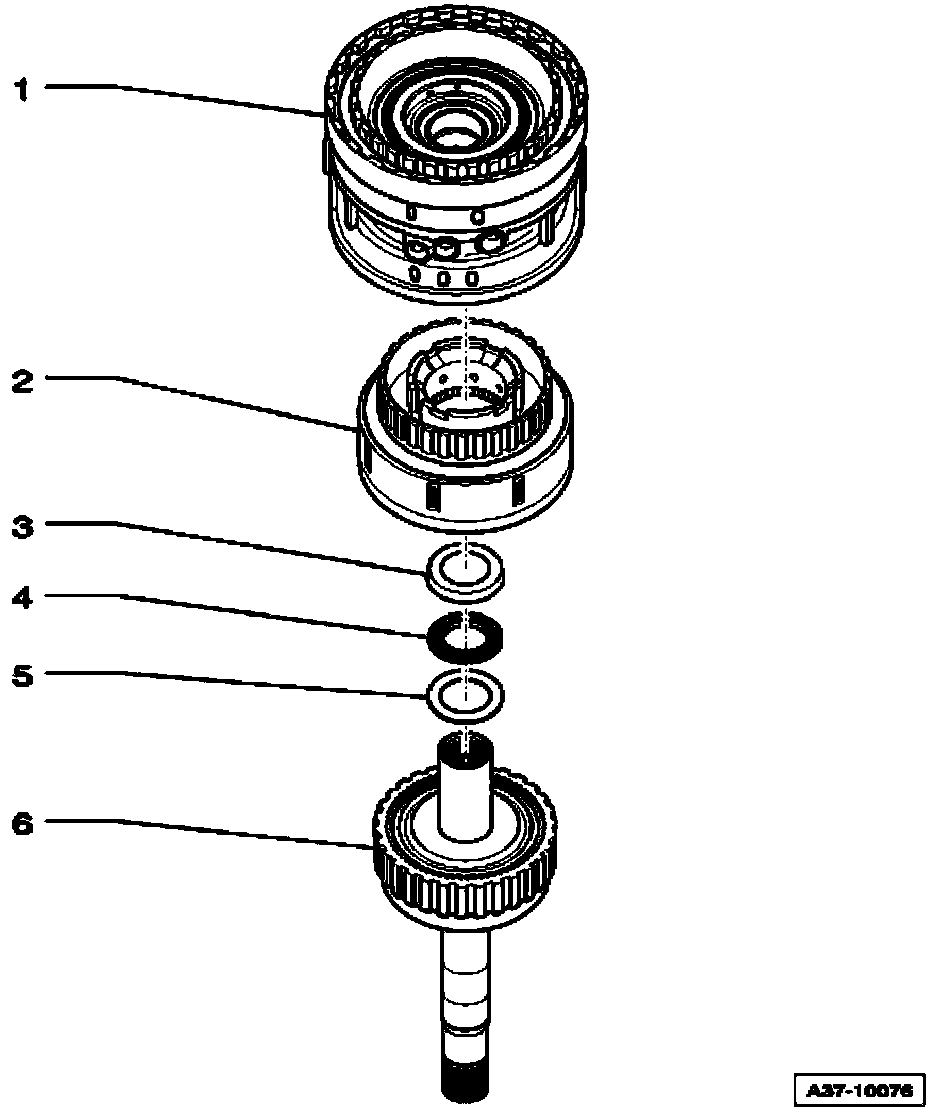

Tower "I", assembly overview, 01V, 5 SPD. A/T





1. Clutch "D/G"
2. Clutch "F"
3. Angle washer
4. Axial needle bearing
5. Thrust washer
6. Planetary drive
