Tiptronic Switch -F189-

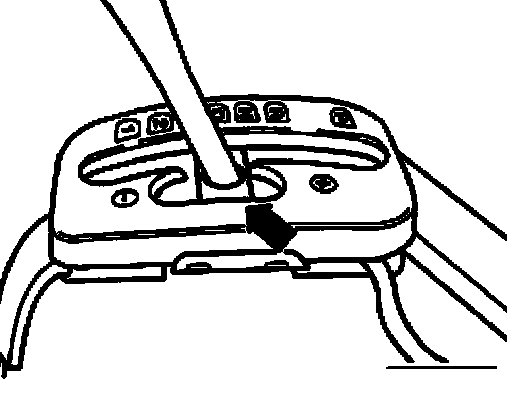

Fig. 19 Tiptronic switch -F189-, 01V, 5 SPD. A/T (FWD)





Location: The Tiptronic switch is integrated in the printed circuit of the symbol insert, which can be found in the selector mechanism cover -arrow-.

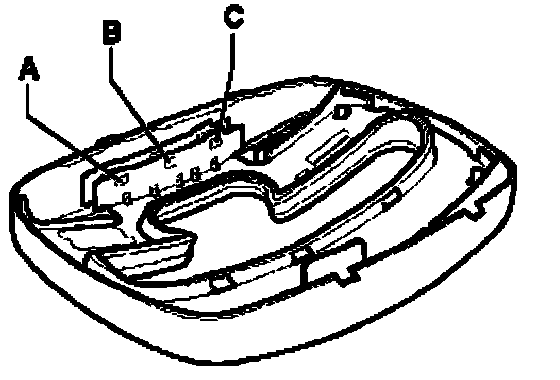

It consists of 3 Hall senders -A-, -B- and -C-, which are activated by a solenoid on the masking panel of the cover strip.
A - Tip down sensor
B - Tiptronic recognition sensor
C - Tip up sensor
