CD Changer: Service and Repair

CD Changer From 10.00, Removing And Installing

Removing

CAUTION: Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove any CDs that may be present in the magazine.

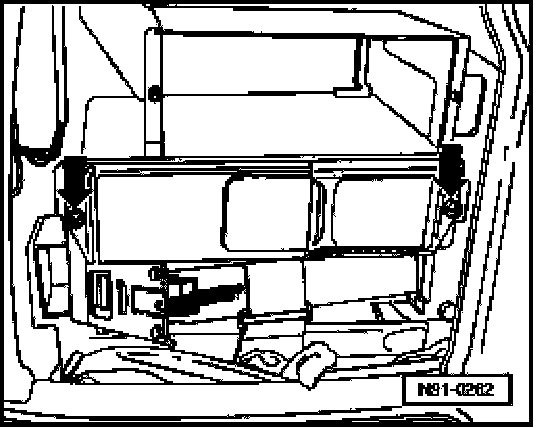

- Remove screws -arrows- and slide CD changer unit from mounting frame.
- Disconnect electrical connection.

Installing
- Install in reverse order of removal.

NOTE: After CD Changer replacement/installation, confirm radio sound system coding using applicable On Board Diagnostic program. Radio systems "Premium IV and V". Radio system Premium VI" use VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Testing and Service System in mode "Guided Fault Finding".
