Wiper Blade Park Position, Adjusting
Wiper Blade
Park Position, Adjusting
-

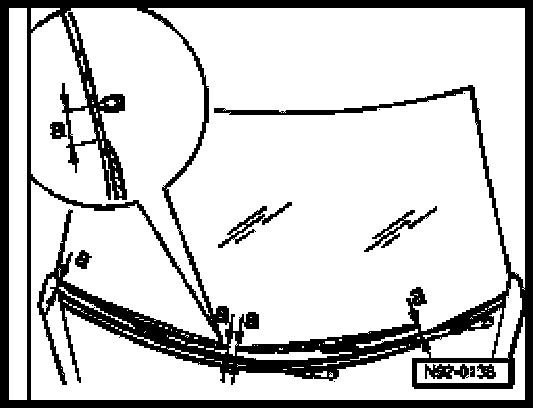

Align
wiper blades
so they are
20 mm (3/4 in.)
from lower edge of windshield.
Distance between arrows =
20 to 30 mm (3/4 in. to 1-3/16 in.)
