Windshield Washer Spray Nozzle: Service and Repair

Windshield Washer System Jets, Removing

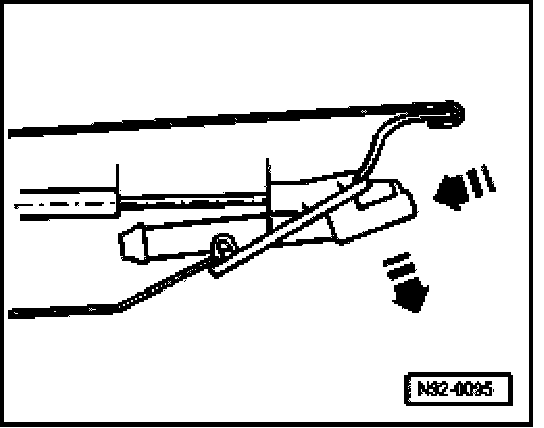

- Press jet forward and remove downward.







- Pull hose off jet and disconnect -2- pin connector.

Vehicles with heated washer nozzles

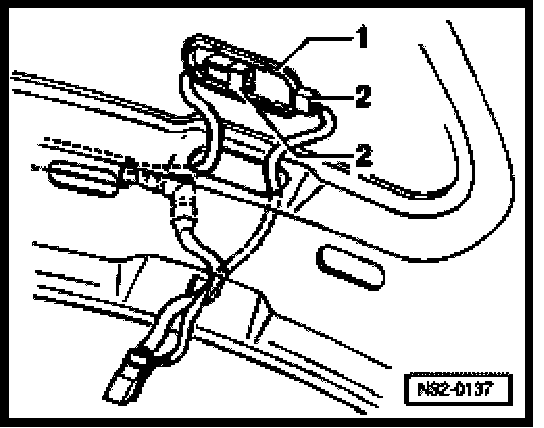

- Remove cover -1- and disconnect harness connector -2-.
