Headlamp Washer Spray Nozzle: Service and Repair

Headlight Washer System Jets, Removing And Installing

Removing

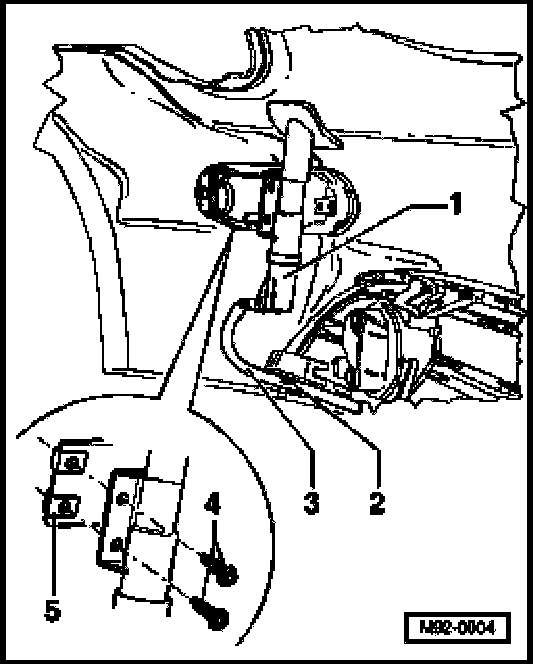

- Remove front bumper cover







- Remove screws -4- from speed nuts -5-.
- Unclip headlight washer system hose -3- from hose clips -2-.
- Pull hose -3- from spray jet carrier -1-.

Installing
- Install in reverse order of removal.

NOTE: Once installation is complete, bleed headlight washer system by operating system several times.
