02M, 5 and 6 SPD. M/T

Calculating overall ratio 'i', 02M, 5 and 6 Spd. M/T

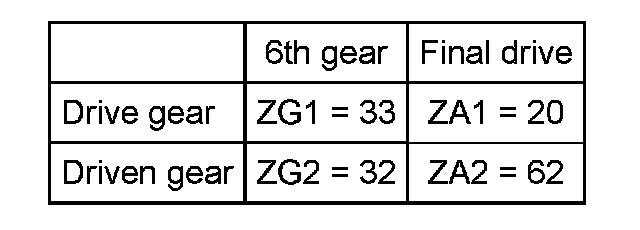

Example: 6-Speed manual transmission 02M





i= Z2 � Z11)
iG = Gear ratio = ZG2 : ZG1 = 32 : 33 = 0.970
iA = Axle ratio = ZA2 : ZA1 = 62 : 20 = 3.100
overall ratio = total ratio = iG x iA = 0.970 x 3.100 = 3.007
1) Z1 = No. of teeth driving gear, Z2 = No. of teeth driven gear
