Shift Lever Knob and Cover, Removing and Installing

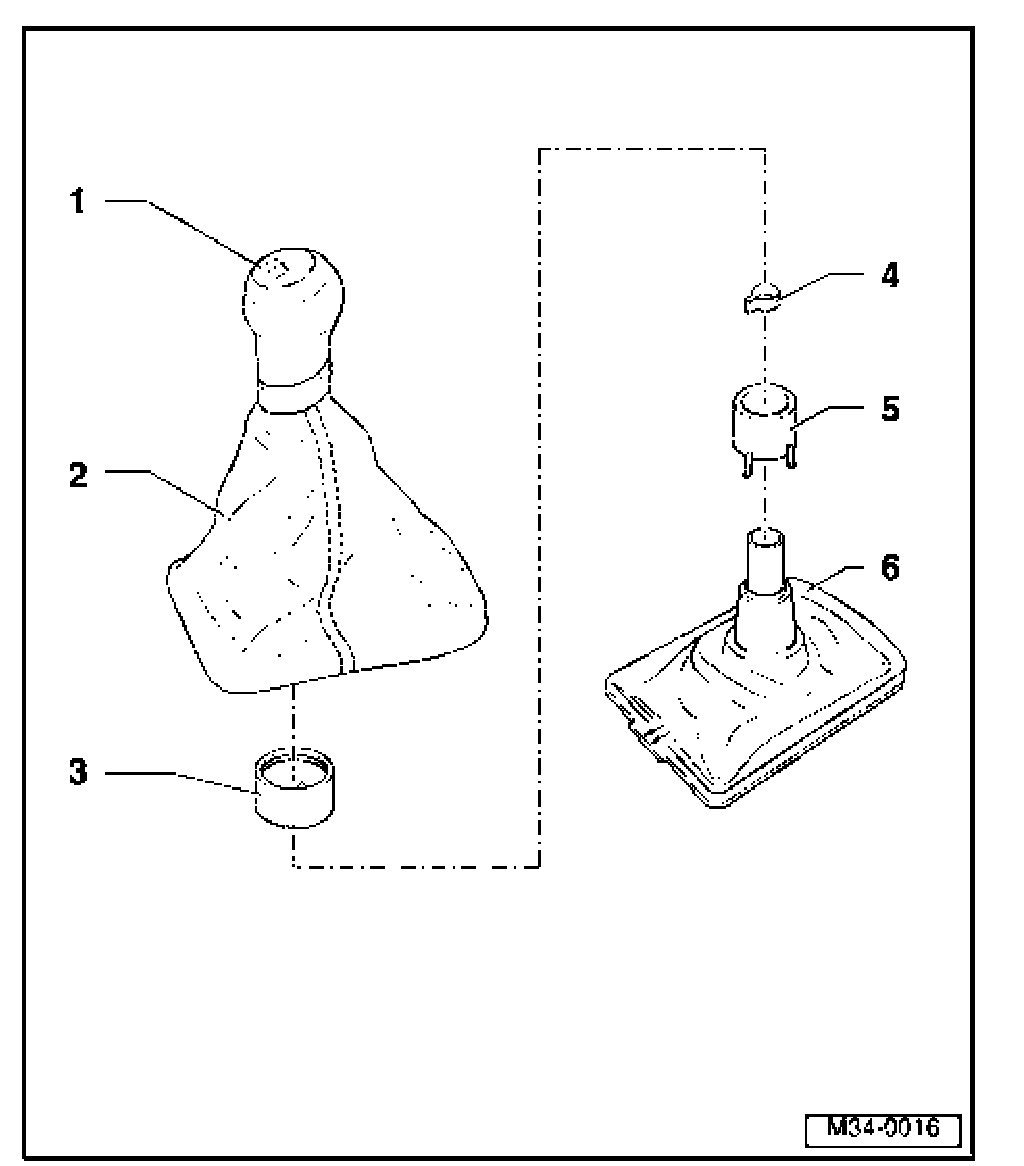

Shift lever knob and cover, removing and installing, 02M, 5 and 6 Spd. M/T





1. Shift lever knob
^ Remove and install together with cover

2. Cover
^ Separating from shift lever knob go to Fig. 1
^ Connect to shift lever knob before installing Fig. 1
^ Remove and install together with shift lever knob

3. Sleeve
4. Clamp
^ To secure shift lever knob on gear stick
^ Secure on shift lever knob -item 1- using pliers V.A.G 1275

5. Frame
6. Sound insulation





Fig. 1 Shift lever cover, separating and assembling to shift lever knob
- Turn cover inside out.
- Carefully pry clamping sleeve (arrow) off with a screwdriver and pull shift lever knob out.
- Installation is performed in the reverse sequence. Note the following:
- Insert shift lever knob in cover.
- Push clamping sleeve onto shift lever knob and engage.
- Install shift lever knob and cover together.
