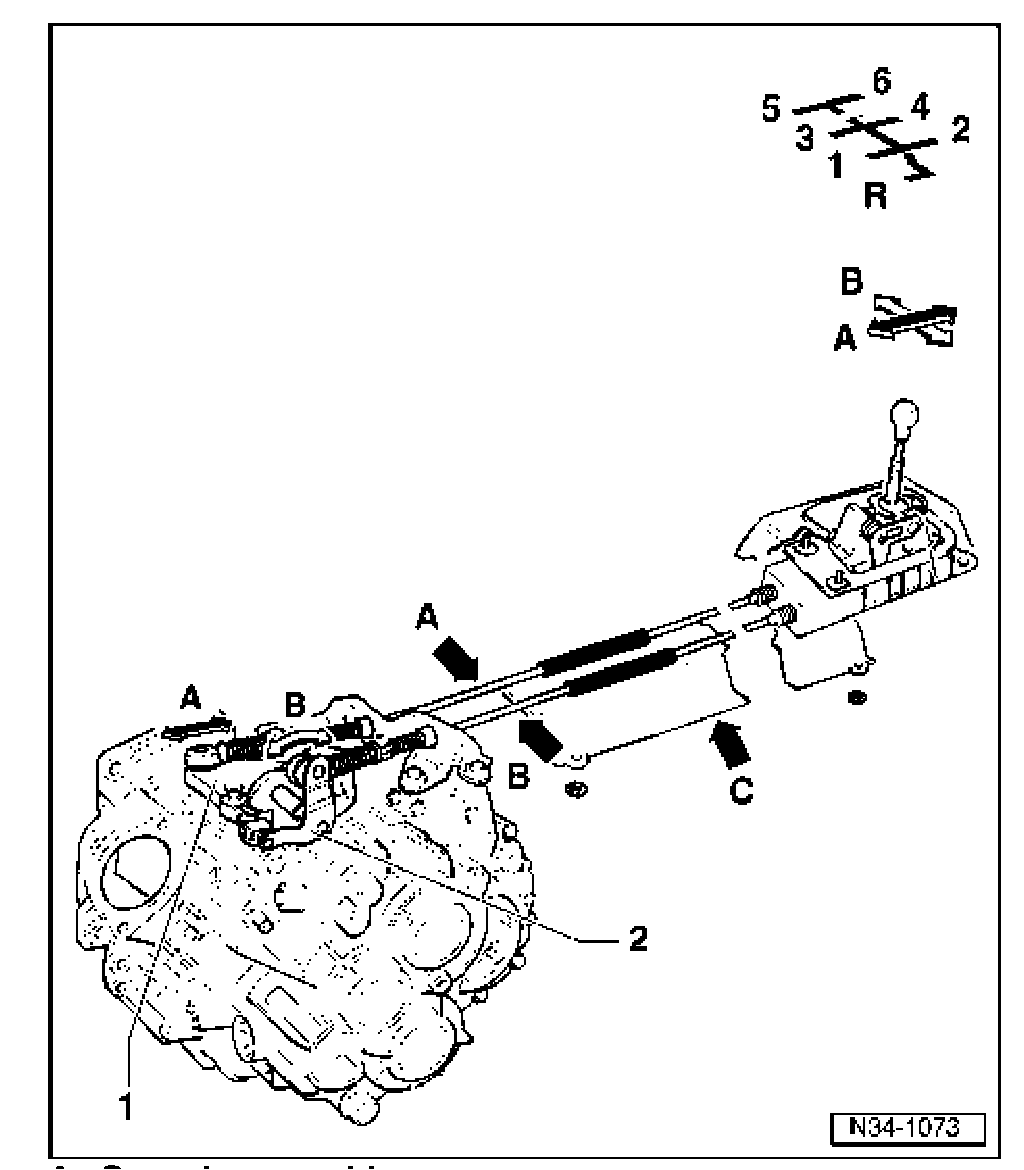

Installed Position of Gear Selector Mechanism

Installed position of gear selector mechanism, 02M, 5 and 6 Spd. M/T





A -Gear change cable
B -Gate selector cable
C -Heat shield

- Remove before removing the gear selector mechanism.
- Arrow -A- Gear selection movement
- Arrow -B- Gate selection movement

1. Gear selector lever
2. Relay lever

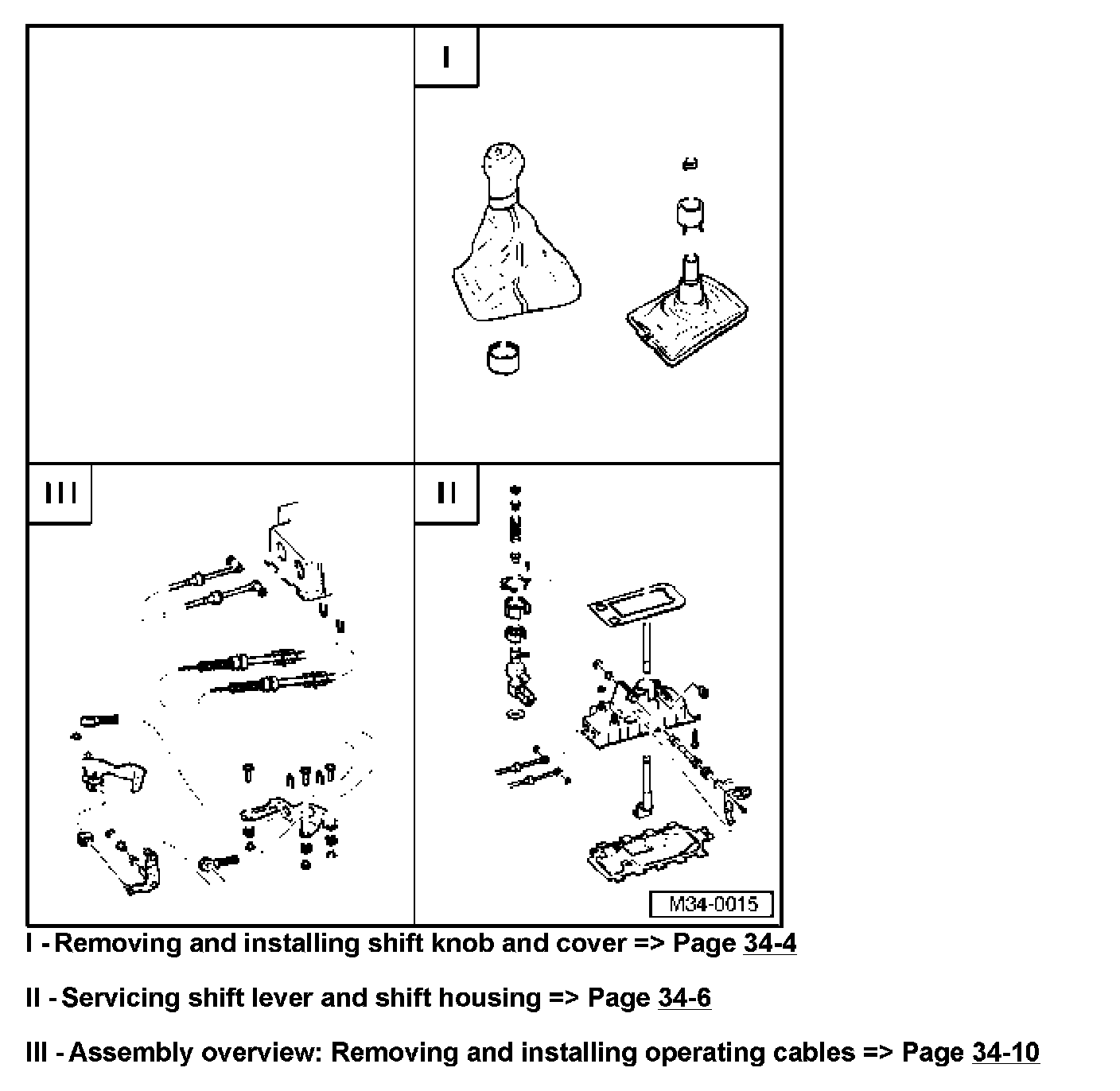

I -Removing and installing shift knob and cover
II -Servicing shift lever and shift housing
III -Assembly overview: Removing and installing operating cables
- Removing and installing selector mechanism
- Adjusting selector mechanism

Note:
- Before working on the selector mechanism, disconnect ground strap from the battery in the engine compartment.
- Note radio code on vehicles with coded radio.

Special tools and equipment

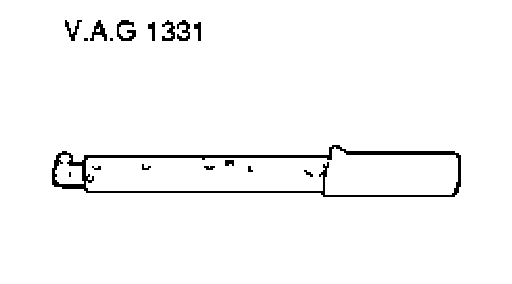

V.A.G 1331 Torque wrench or equivalent:

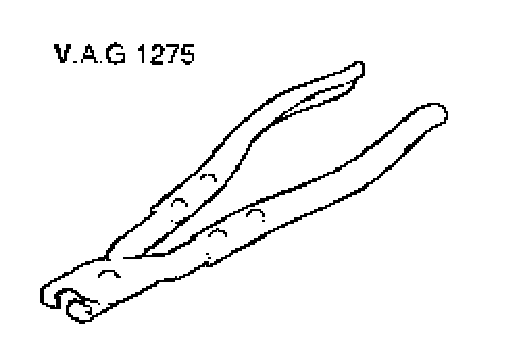

V.A.G 1275 Pliers:
