Installation Position of Gear Selector Mechanism

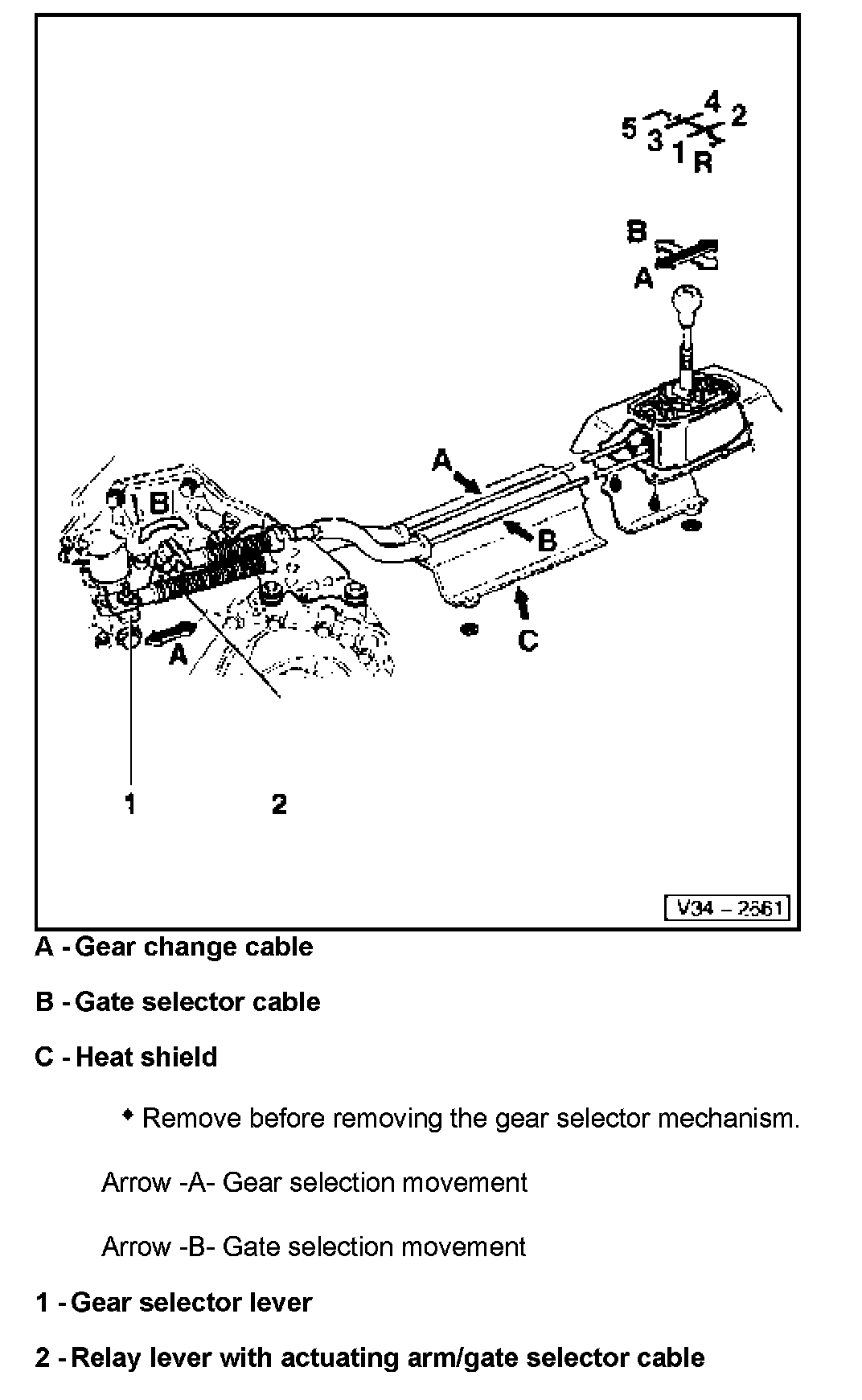

Installation position of gear selector mechanism, 02J, 5 Spd. M/T





A -Gear change cable
B -Gate selector cable
C -Heat shield
- Remove before removing the gear selector mechanism.
- Arrow -A- Gear selection movement
- Arrow -B- Gate selection movement

1. Gear selector lever
2. Relay lever with actuating arm/gate selector cable





I -Assembly overview: Removing and installing selector cables
II -Servicing gear lever housing
III -Servicing gear lever
- Removing and installing selector mechanism
- Adjusting selector mechanism

Note:
- Disconnect ground (GND) strap from the battery in the engine compartment before working on the selector mechanism.
- Note radio code on vehicles with coded radio.

Special tools and equipment

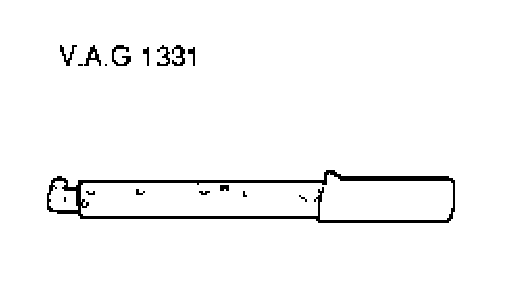

VAG 1331 Torque wrench:

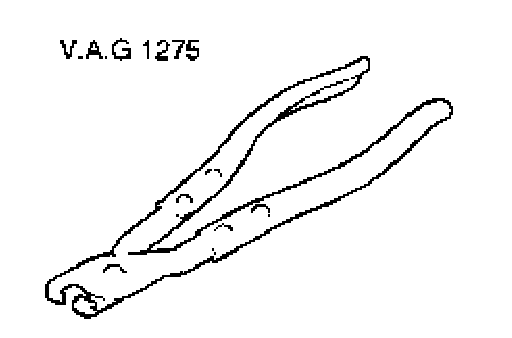

VAG 1275 Pliers:
