02M, 5 and 6 SPD. M/T

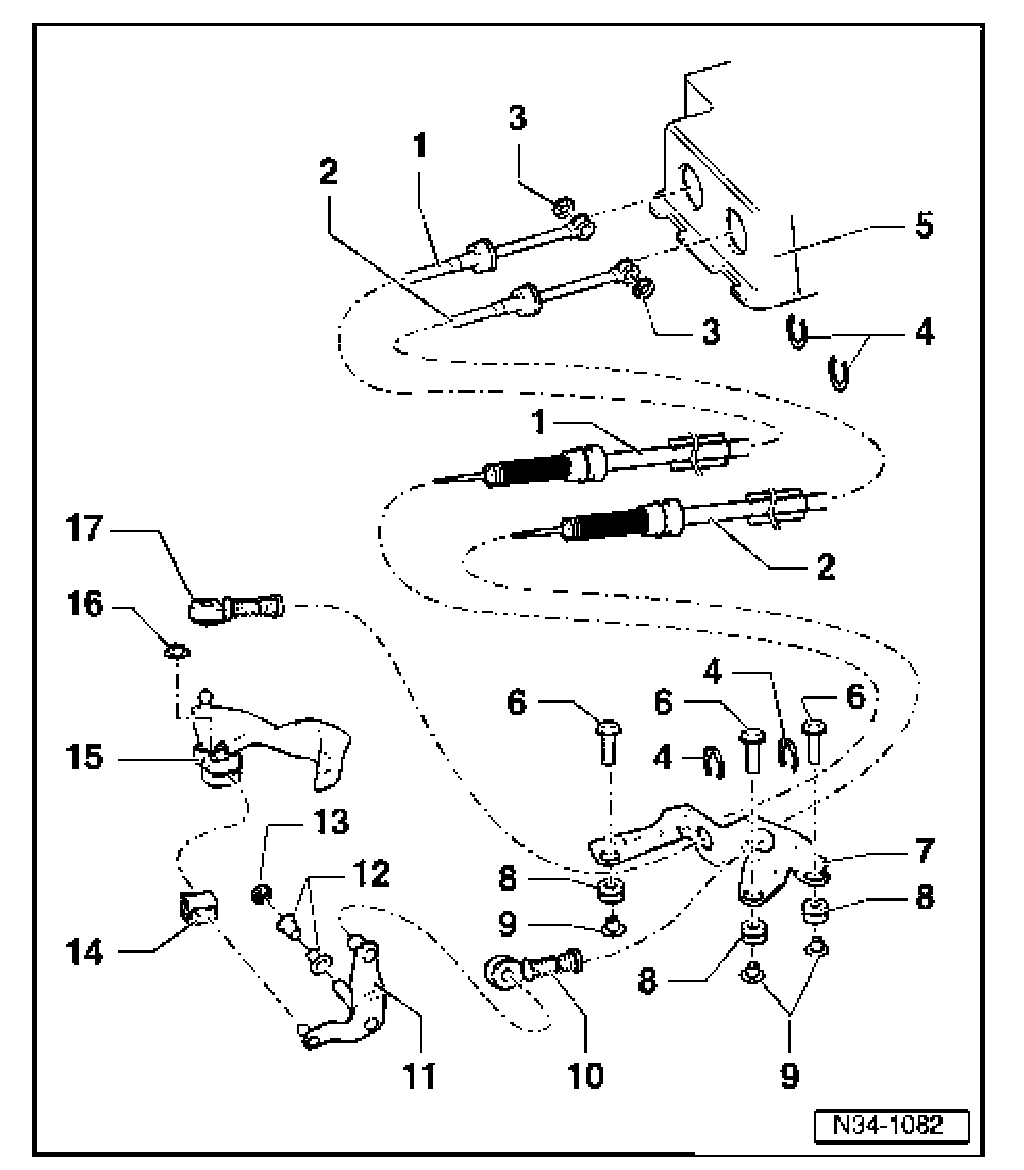

Selector cables, assembly overview, 02M, 5 and 6 Spd. M/T





Note: Lubricate all mountings and sliding surfaces with Polyurea grease Part No. G 000 450 02.

1. Gear selector cable
^ Press onto gear shift guide
^ Installed position

2. Gate selector cable
^ On relay lever
^ Installed position

3. Circlip
4. Circlip
^ Do not damage cable when removing

5. Shift housing
6. Hex bolt, 25 Nm
^ For support bracket

7. Support bracket
8. Bushing
^ Support bracket mounting to transmission

9. Distance piece
10. Cable locking mechanism
^ For gate selector cable to relay lever
^ Replace after removing from relay lever item -11-
^ From 01.01 with holes
^ Not necessary to be replaced
^ Secured with securing clip
^ Removing and installing

11. Relay lever
^ Installed position

12. Bushing
13. Circlip
14. Shoe
15. Transmission selector lever
^ With balance weight
^ Install so that master spline aligns with selector shaft
^ After installing adjust gear selector mechanism
^ Installed position

16. Hex nut, 20 Nm
^ Self-locking
^ Always replace

17. Cable locking mechanism
^ For gear selector cable to gear selector lever
^ Replace after removing from transmission selector lever item -15-
^ From 01.01 with holes
^ Not necessary to be replaced
^ Secured with securing clip
^ Removing and installing

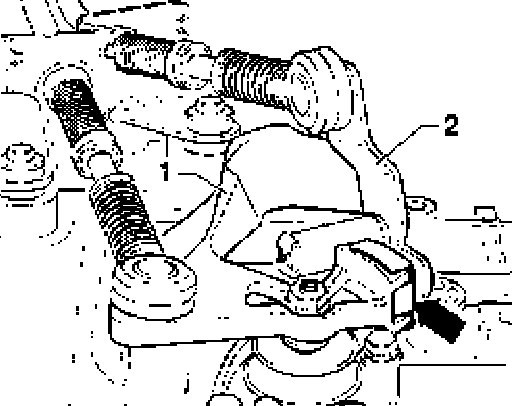

Installed position of transmission selector lever/relay lever
1. Gear selector lever
^ With balance weight

2. Relay lever
^ Locates in guide rail of gear selector lever via shoe (arrow)
