02J, 5 SPD. M/T

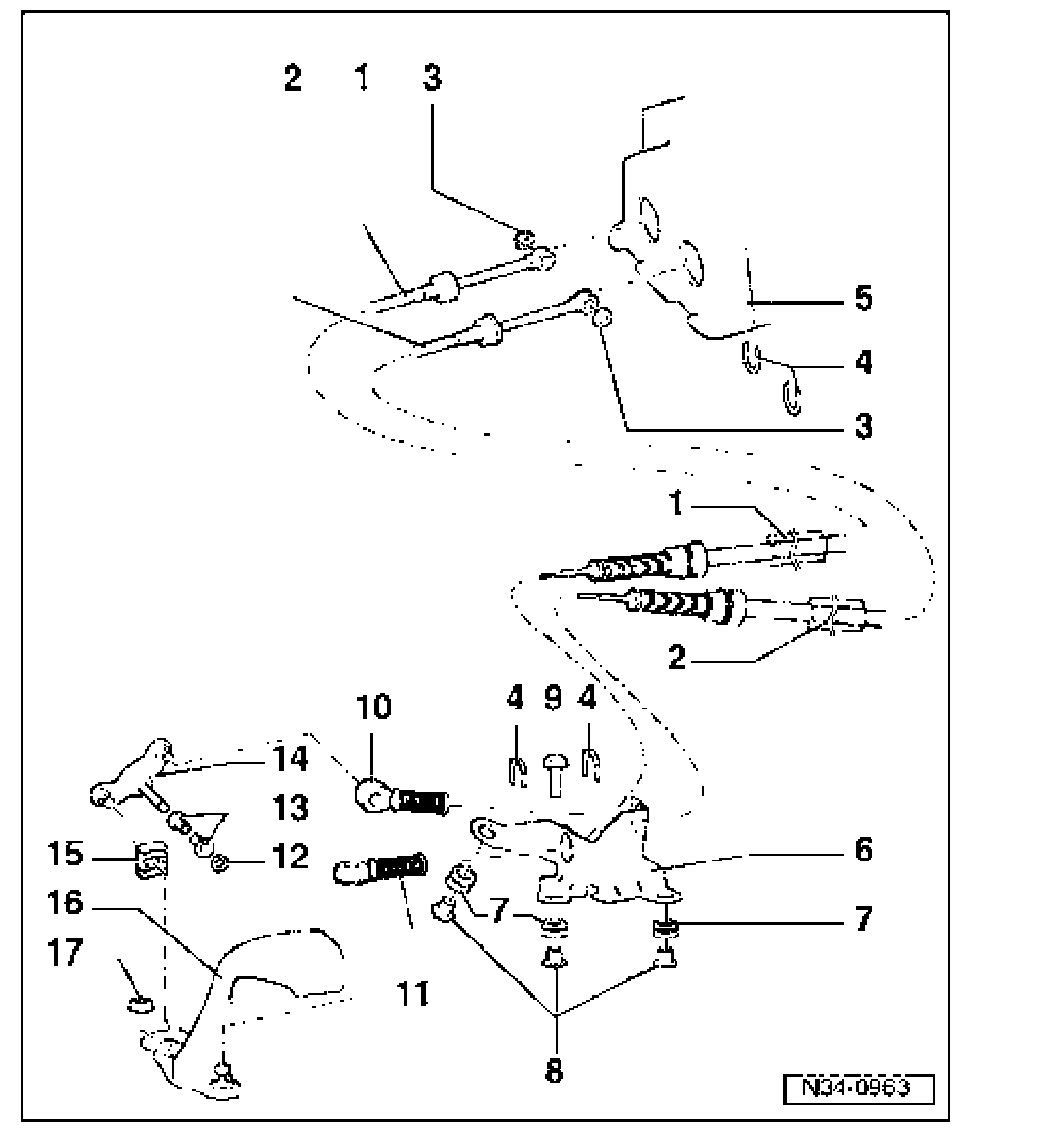

Selector cables, assembly overview - removing and installing, 02J, 5 Spd. M/T





Note: Lubricate all mountings and sliding surfaces with Polyurea grease Part No. G 052 142 A2.

1. Gear selector cable
^ Press onto gear lever guide
^ Installation position

2. Gate selector cable
^ On gate selector bracket
^ Installation position

3. Circlip
4. Circlip
^ Do not damage cable when removing

5. Gear lever housing
6. Support bracket
7. Bushing
^ Support bracket mounting to transmission

8. Distance piece
9. Hex bolt, 25 Nm
^ For support bracket

10. Cable locking mechanism
^ For gate selector cable to relay lever

11. Cable locking mechanism
^ For gear selector cable to gear change lever

12. Circlip
13. Bushing
14. Relay lever
^ Installation position

15. Shoe
16. Transmission selector lever
^ With balance weight
^ Install so that master spline aligns with selector shaft
^ After installing adjust gear selector mechanism
^ Installation position

17. Hex nut, 25 Nm

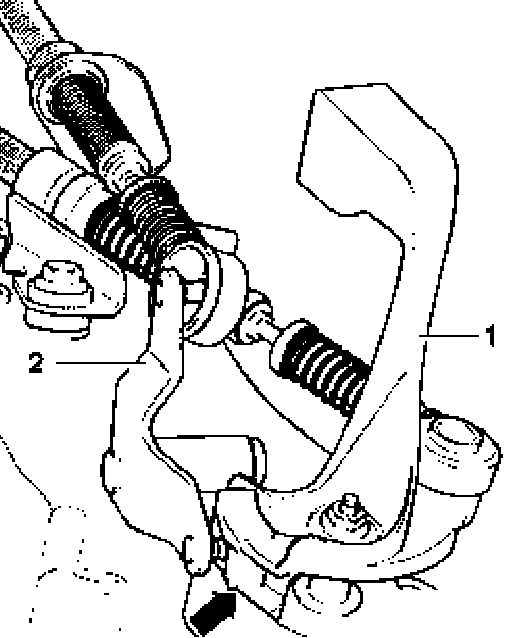

Installation position of transmission selector lever/relay lever
1 - Gear selector lever
With balance weight
2 - Relay lever
Locates in guide rail of gear selector lever via shoe (arrow)
