Home >> Volkswagen >> 2005 >> New Beetle Convertible (1Y1) L4-2.0L (BEV) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> 02M, 5 and 6 SPD. M/T >> Overhaul (Gears, Shafts) >> Table of Adjustment Shims

Table of Adjustment Shims

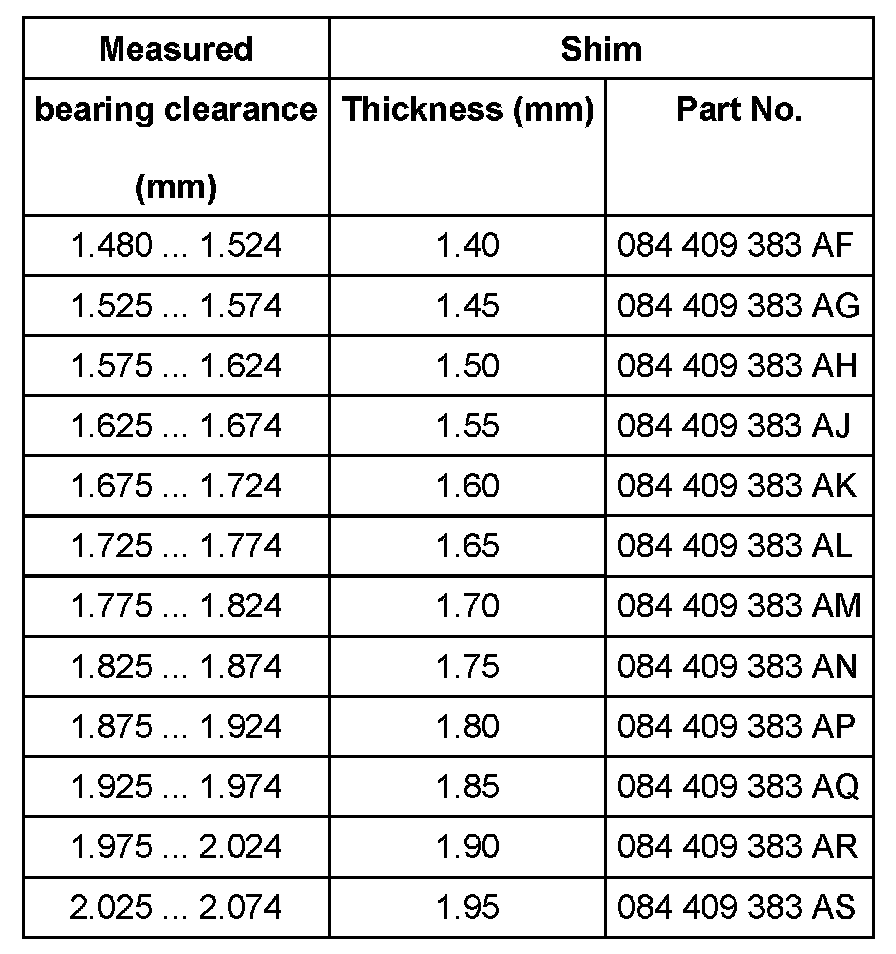

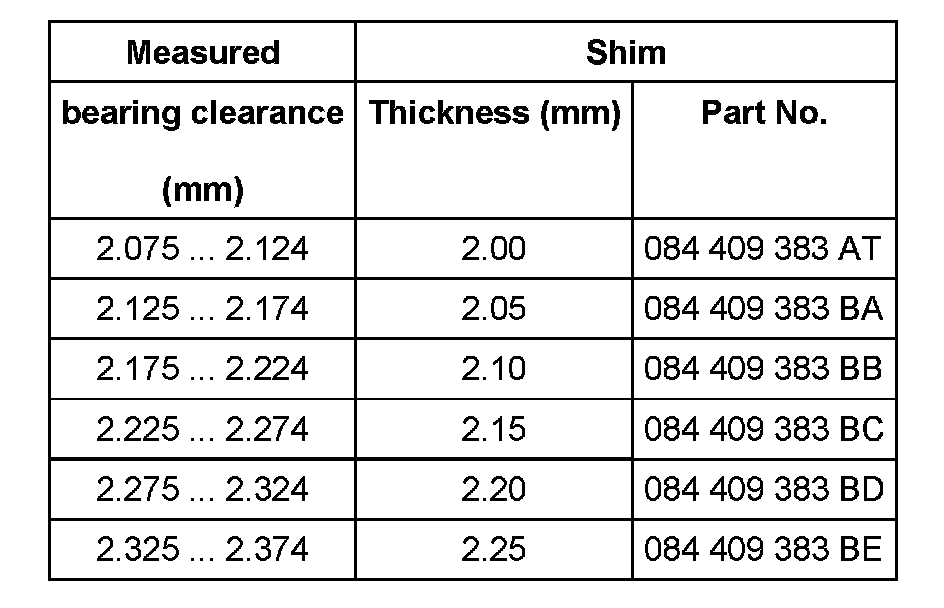

Table of adjustment shims, 02M, 5 and 6 Spd. M/T
