Output Shaft For 5TH, 6TH and Reverse Gear, Disassembling and Assembling
Output shaft for 5th, 6th and reverse gear, disassembling and assembling, 02M, 5 and 6 Spd. M/T

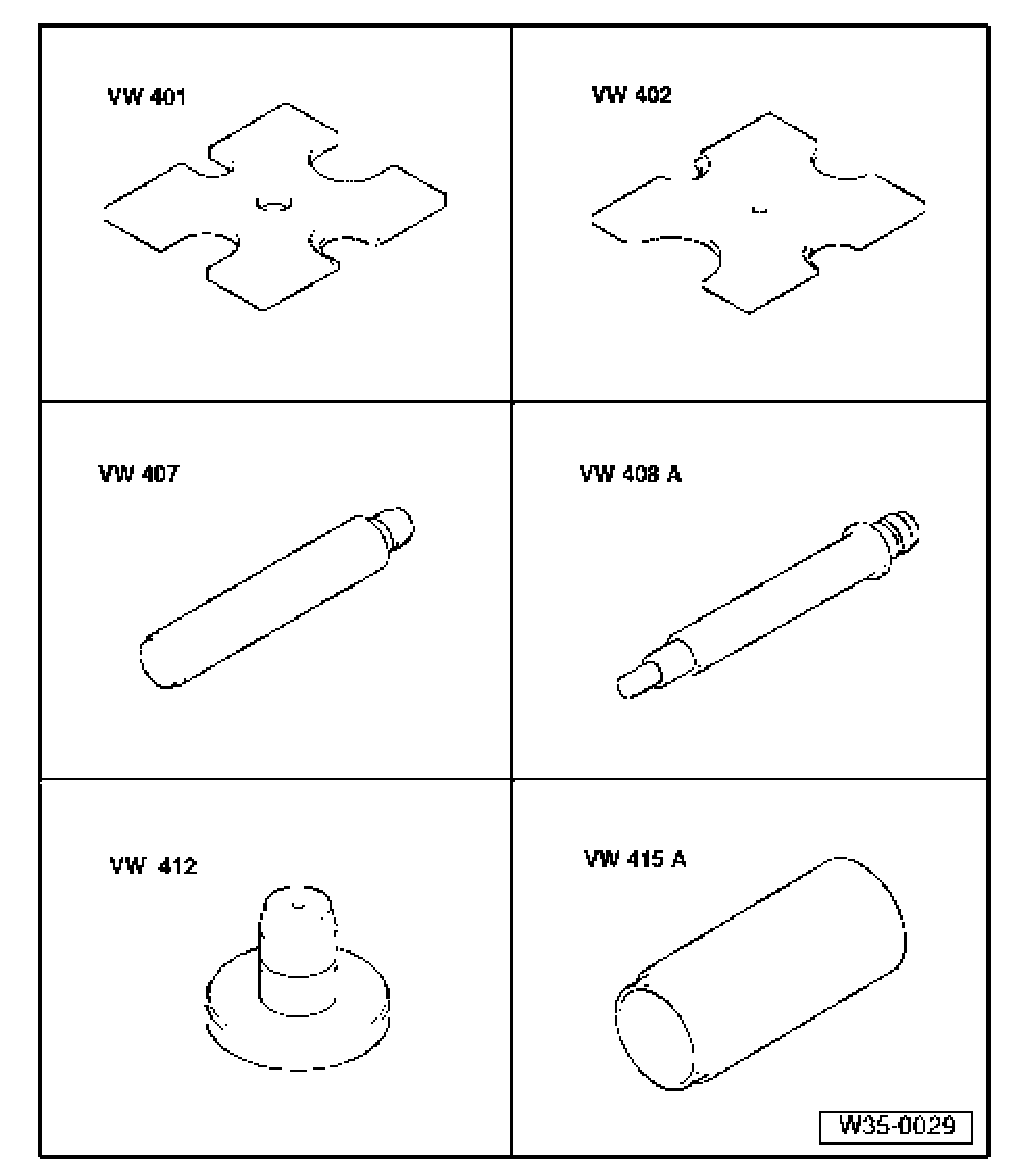

Special tools and equipment:
- VW 401 Thrust plate
- VW 402 Thrust plate
- VW 407 Press tool
- VW 408 A Press tool
- VW 412 Press tool
- VW 415 A Tube

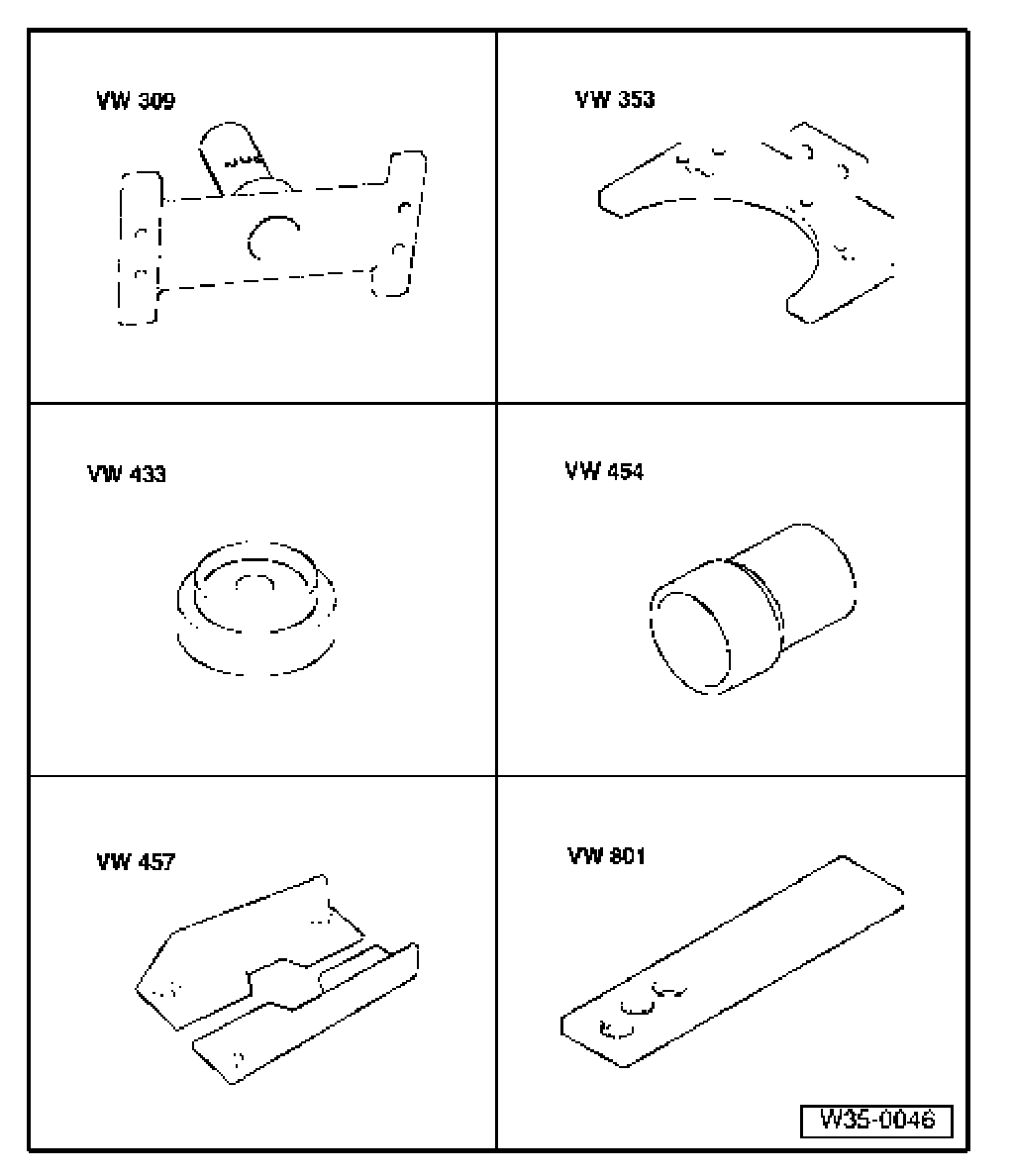

Special tools and equipment:
- VW 309 Holding plate
- VW 353 Transmission support
- VW 433 Press piece
- VW 454 Press piece
- VW 457 Support rail
- VW 801 Holding plate

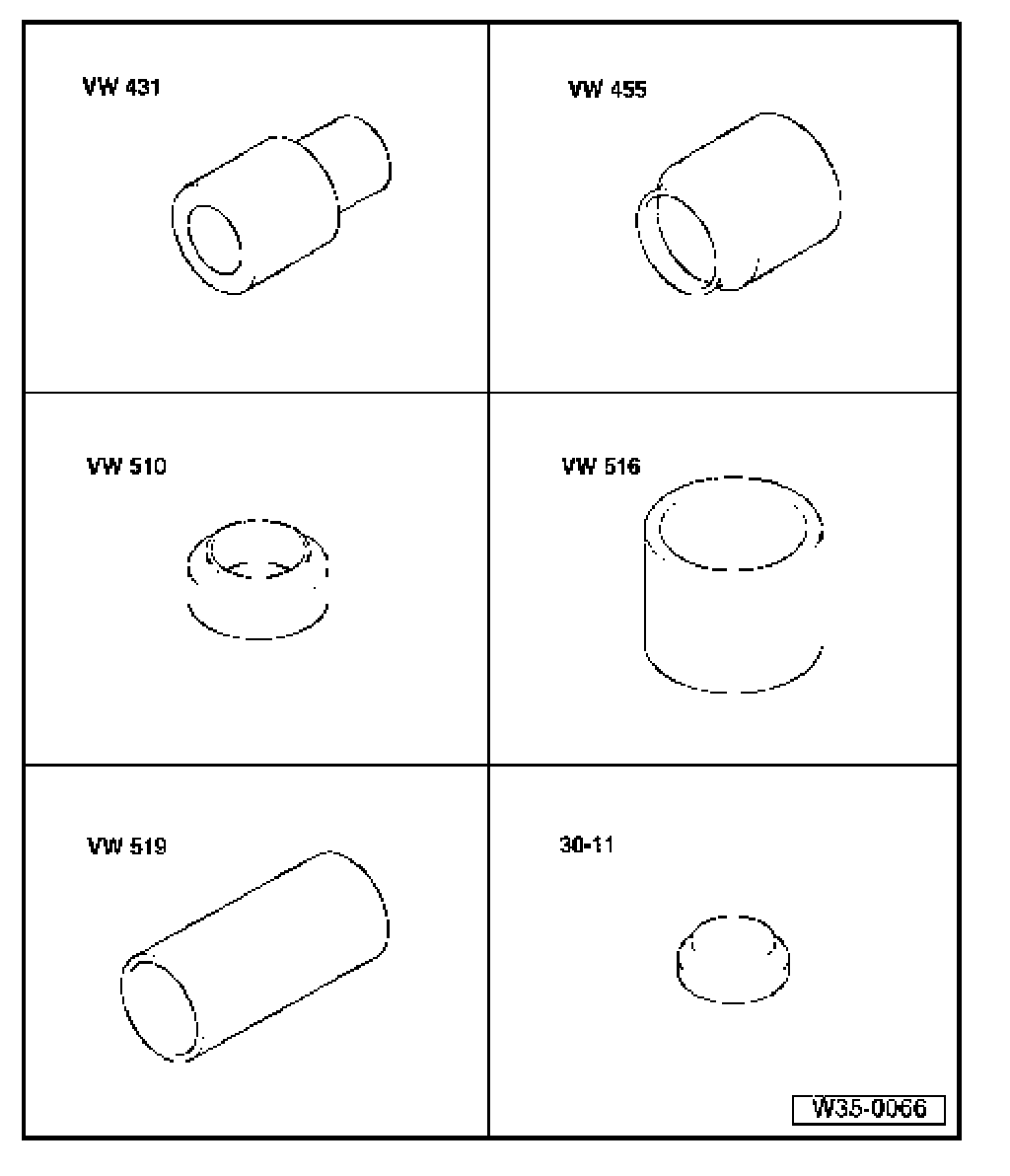

Special tools and equipment:
- VW 431 Press piece
- VW 455 Fitting sleeve
- VW 510 Press piece
- VW 516 Tube
- VW 519 Tube
- 30-11 Thrust plate

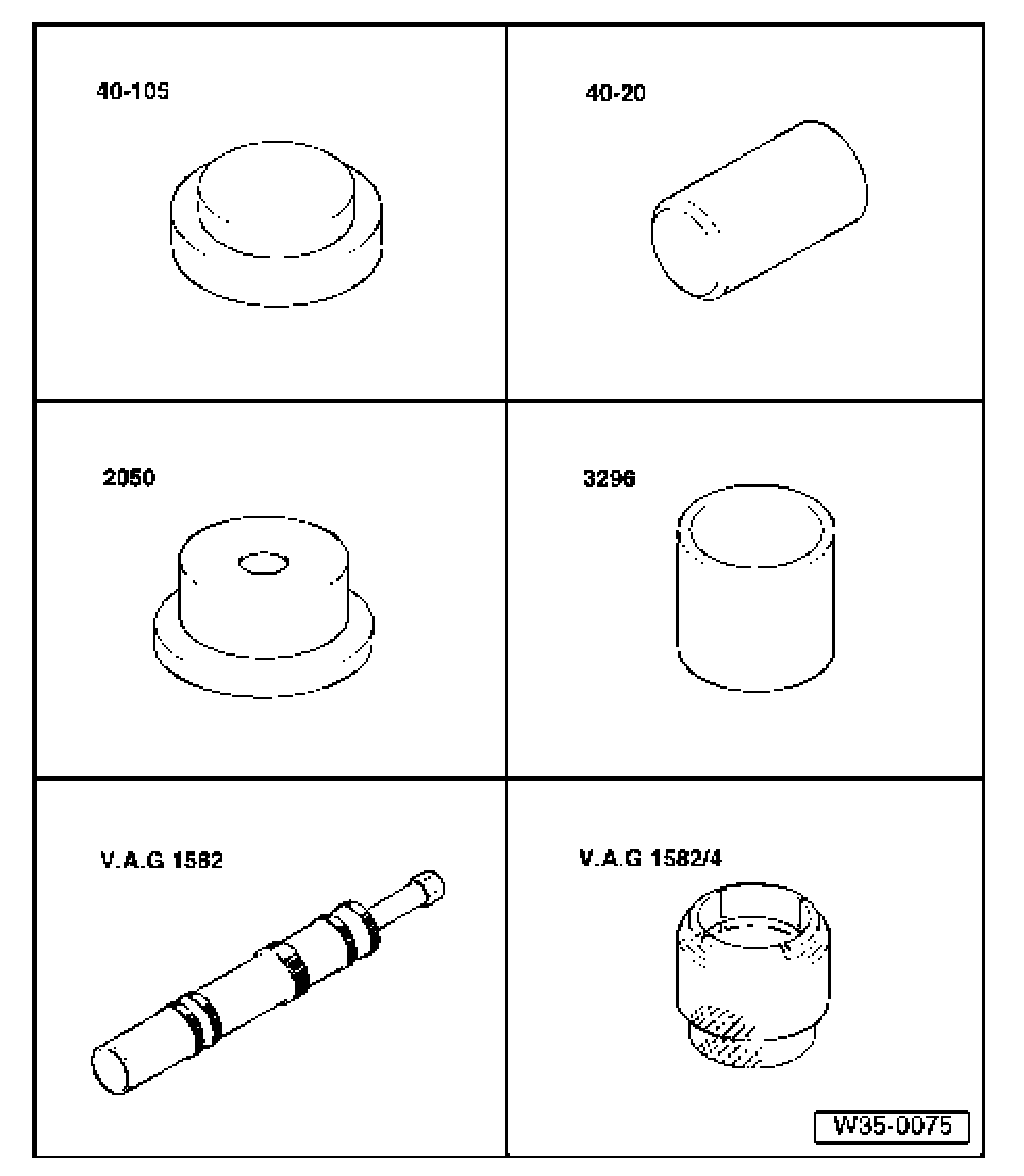

Special tools and equipment:
- 40-105 Thrust plate
- 40-20 Press tool
- 2050 Thrust piece
- 3296 Tube
- VAG 1582 Tapered roller bearing puller
- VAG 1582/4 Grip

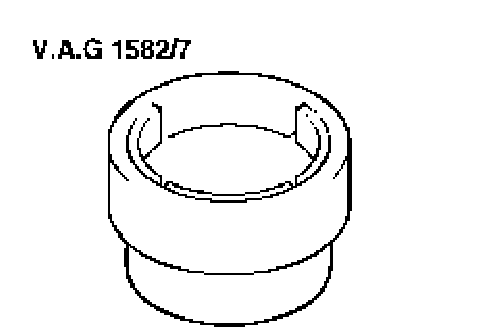

V.A.G 1582/7 Grip:

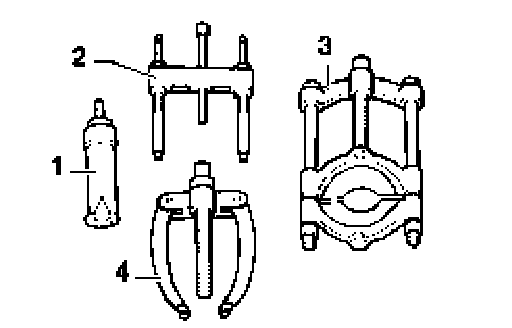

Special tools and equipment:
- 1 - Kukko 21/7 Internal puller
- 3 - Kukko 17/2 Separating device
- 4 - Kukko 22/2 Counter support
Note:
- When installing new gears or a new output shaft consult technical data.
- If the output shaft or tapered roller bearings have been replaced then perform output shaft adjustment.

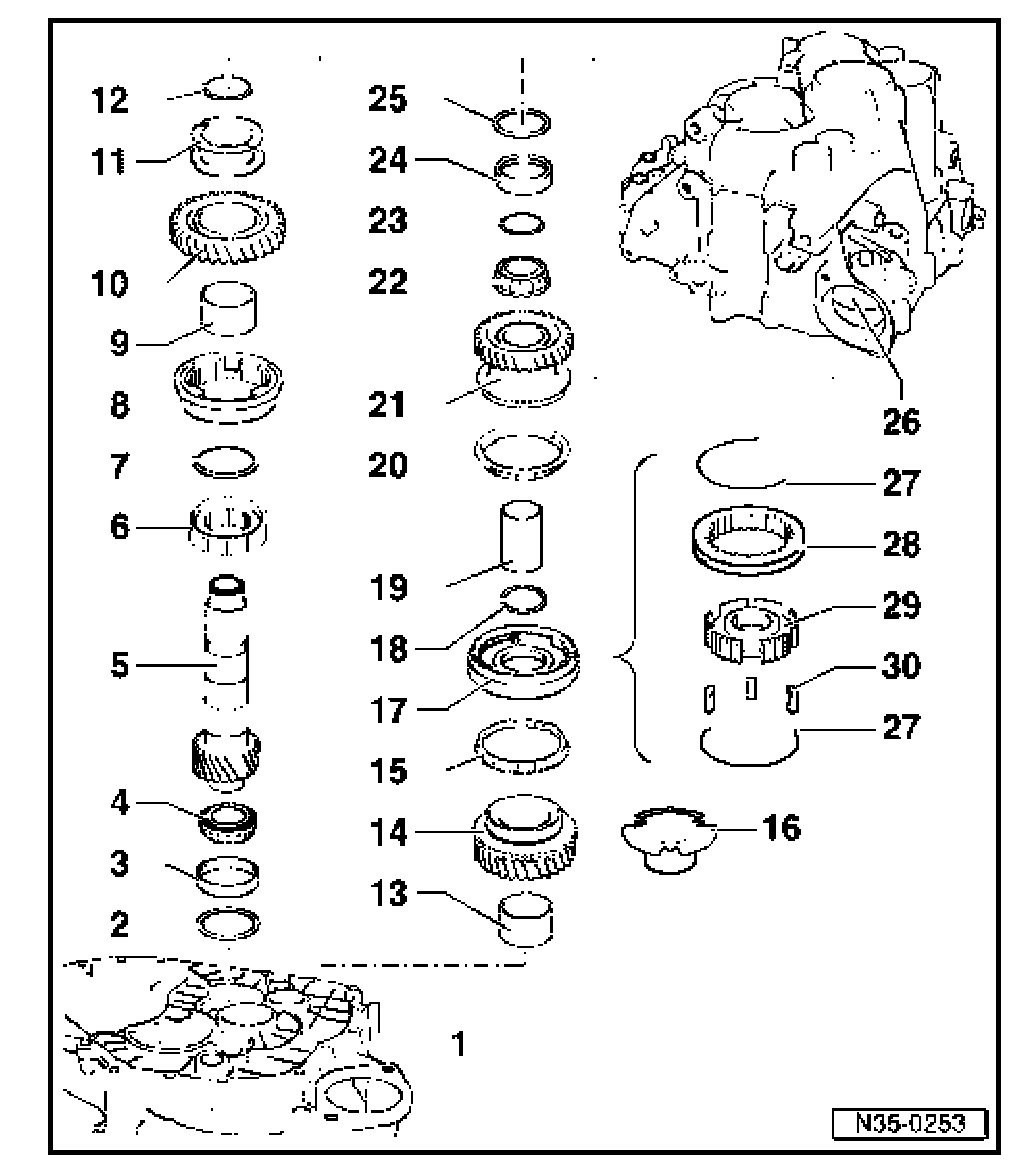

1. Clutch housing
2. Shim
^ Always 0.65 mm thick
3. Outer race/tapered roller bearing
^ Pulling out go to Fig. 1
^ Pressing in go to Fig. 2
4. Tapered roller bearing inner race
^ Pulling off go to Fig. 8
^ Pressing on go to Fig. 20
5. Output shaft
^ For 5th, 6th and reverse gear
^ Adjusting
6. Reverse gear synchro-hub
^ Pressing off go to Fig. 7
^ Installed position go to Fig. 9
^ Pressing on go to Fig. 10
7. Securing clip
8. Reverse gear locking collar
^ Securing clip
9. Needle roller bearing
^ For reverse gear
10. Reverse sliding gear
11. Sleeve
^ Press off with reverse gear go to Fig. 6
^ Installed position: wide shoulder of sleeve faces reverse gear
^ Pressing on go to Fig. 11
12. Securing clip
13. Needle roller bearing
^ For 6th gear
^ Not in 5-speed manual transmissions
14. 6th gear
^ Not in 5-speed manual transmissions
15. 6th gear synchro-ring
^ Not in 5-speed manual transmissions
^ Checking for wear go to Fig. 12
16. Spacer sleeve
^ For 5-speed manual transmission
^ Pull off together with 5th gear locking collar/synchro-hub after removing securing clip (item -18-) go to Fig. 5
^ Position toward 5th gear locking collar/synchro-hub go to Fig. 16
^ Press on together with 5th gear locking collar/synchro-hub go to Fig. 17
17. 5th and 6th gear locking collar with synchro-hub
^ After removing securing clip, press off together with 6th gear (item -18-) go to Fig. 4 or for 5-speed manual transmission,
^ with spacer sleeve go to Fig. 5
^ Disassembling go to Fig. 13
^ Assembling locking collar/synchro hub go to Fig. 13 and Fig. 14
^ Pressing off in 6-speed manual transmission go to Fig. 15
^ Pressing off in 5-speed manual transmission go to Fig. 17
18. Securing clip
19. Needle roller bearing
^ For 5th gear
20. 5th gear synchro-ring
^ Check for wear go to Fig. 12
21. Selector gear for 5th gear
22. Tapered roller bearing inner race
^ Pulling off go to Fig. 3
^ Pressing on go to Fig. 18
23. Securing clip
^ Redetermine if tapered roller bearing (item -22-) or output shaft (item -5-) are replaced go to Fig. 19
24. Outer race/tapered roller bearing
^ Pulling out go to Fig. 21
^ Pressing in go to Fig. 22
25. Shim
^ Determining thickness
26. Transmission housing
27. Spring
^ Installed position go to Fig. 14
28. Locking collar
29. Synchro-hub
30. Locking pieces (Qty. 3)
^ Installed position go to Fig. 13

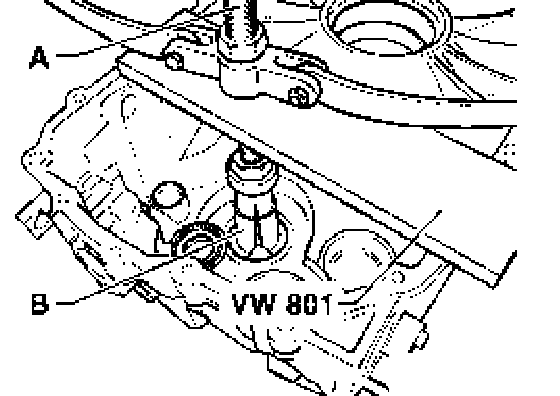

Fig. 1 Pulling tapered roller bearing outer race out of transmission housing
- A - Counter support, e.g. Kukko 22/2
- B - Internal puller 46 to 58 mm, e.g. Kukko 21/7
Note: After pressing out, check washer for damage and replace if necessary.

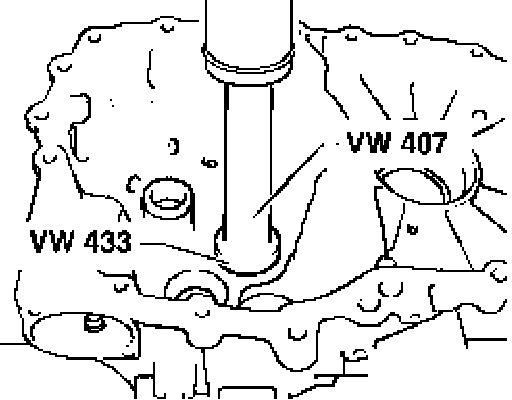

Fig. 2 Pressing tapered roller bearing outer race into transmission housing
- Install washer under outer race.
- Support transmission housing with press tool 40-20 directly below bearing mounting.

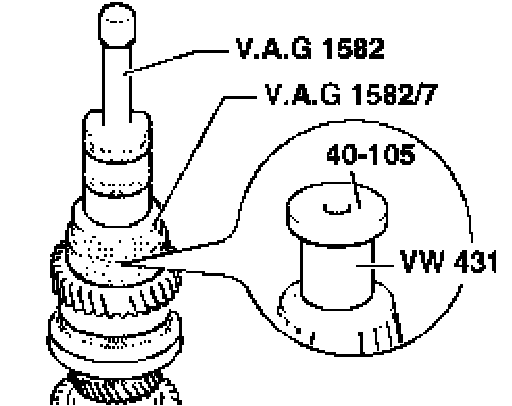

Fig. 3 Pulling off tapered roller bearing inner race
- Before mounting extractor, position press piece VW 431 and thrust plate 40-105 on output shaft.
- Remove securing clip.

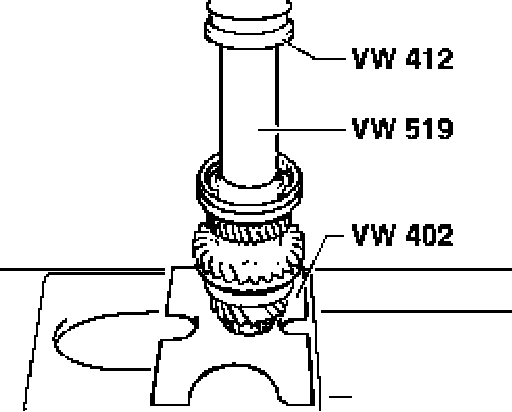

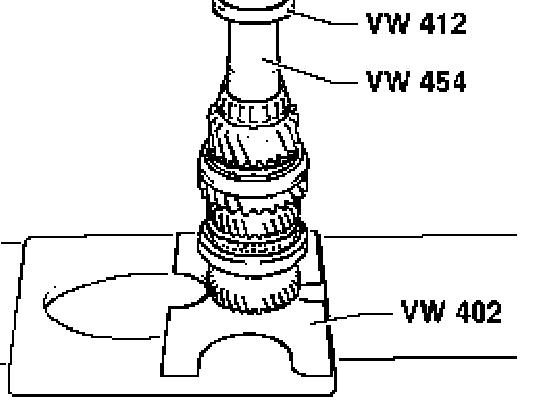

Fig. 4 Pressing off 5th and 6th gear synchro-hub/locking collar with 6th gear
- Remove securing clip.

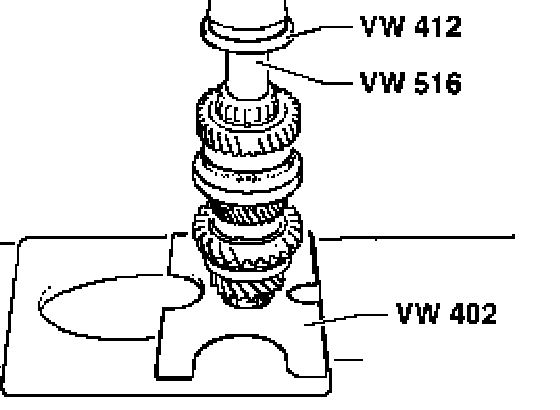

Fig. 5 Pressing off 5th gear synchro-hub/locking collar with spacer sleeve
- Remove securing clip.

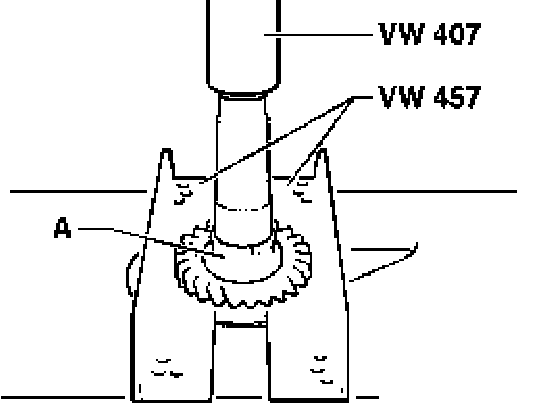

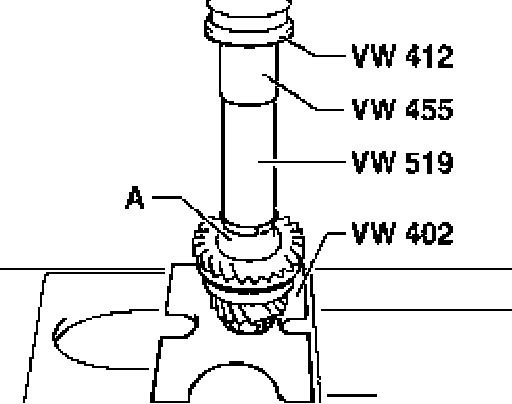

Fig. 6 Pressing off sleeve -A- over reverse gear wheel
- Remove securing clip.

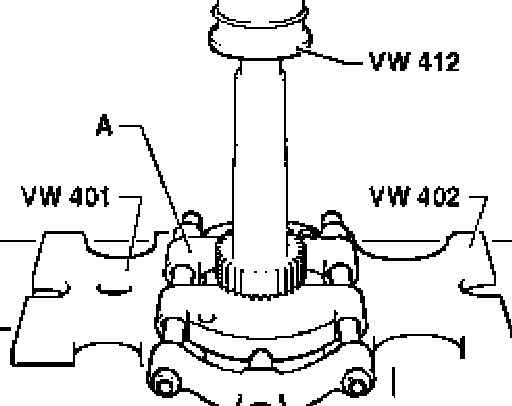

Fig. 7 Pressing off reverse gear synchro-hub
- Remove securing clip.
- A - Separating device 22 to 115 mm, e.g. Kukko 17/2

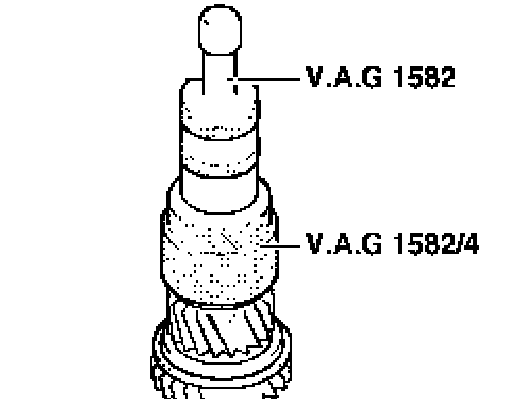

Fig. 8 Pulling off tapered roller bearing inner race
- Before mounting extractor, set thrust plate 30-11 on output shaft.

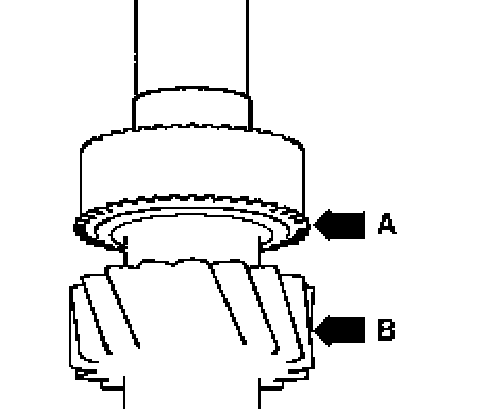

Fig. 9 Installed position of reverse gear synchro-hub
- Reverse gear locking collar stop (arrow -A-) faces toothing of output shaft (arrow -B-).
Fig. 10 Pressing on reverse gear synchro-hub
- Install securing clip.
Fig. 11 Pressing on sleeve -A-
- Installed position: Wide collar faces reverse gear.
- Install securing clip.

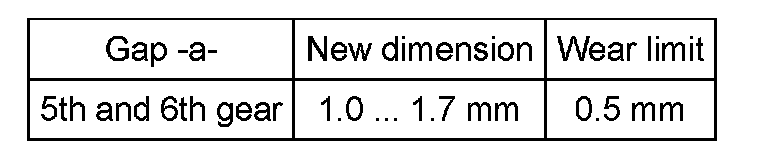

Fig. 12 Checking synchro-ring for wear
- Press synchro-ring onto gear cone and measure gap -a- with feeler gauge.

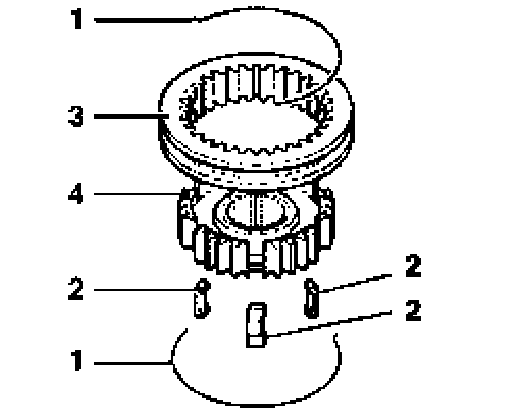

Fig. 13 Disassembling and assembling 5th and 6th gear locking collar and synchro-hub
- 1 - Spring
- 2 - Locking piece
- 3 - Locking collar
- 4 - Synchro-hub
- Slide locking collar over synchro-hub.
- Recesses for locking pieces in synchro-hub and locking collar must align.

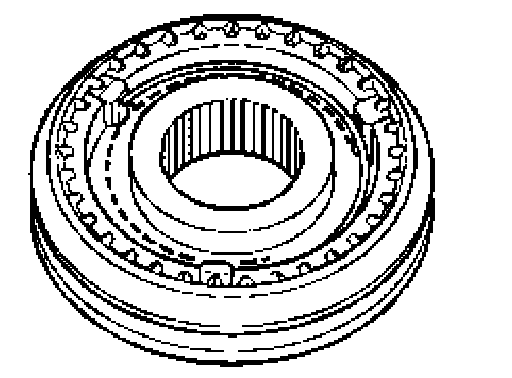

Fig. 14 Assembling 5th and 6th gear locking collar/synchro-hub
- The locking collar has been pushed over the synchro-hub.
- Insert locking pieces and install springs 120° offset.
- Angled end of spring must locate in hollow locking piece.
Fig. 15 Pressing on 5th and 6th gear locking collar/synchro-hub
- Install securing clip.

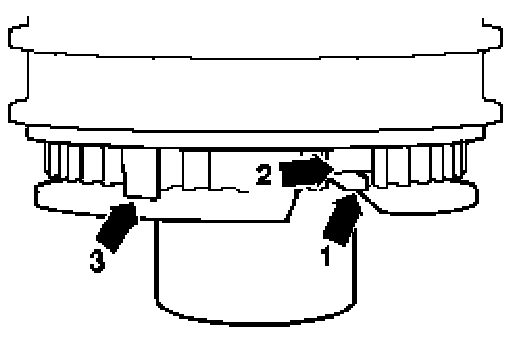

Fig. 16 Positioning spacer sleeve toward 5th gear locking collar/synchro-hub
- Lugs (arrow -1-) of spacer sleeve must line up with recesses in synchro-hub (arrow -2-).
- Lock pieces (arrow -3-) must rest on collar of spacer sleeve.
Fig. 17 Pressing on 5th gear locking collar/synchro-hub together with spacer sleeve

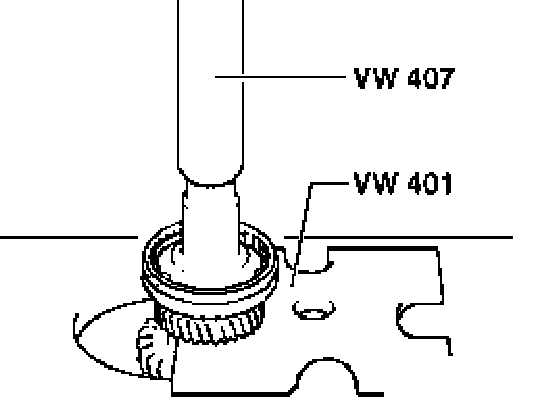

Fig. 18 Pressing on tapered roller bearing inner race
- Determine securing clip Fig. 19 and install it.

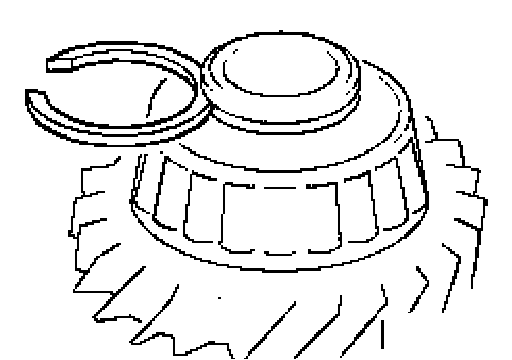

Fig. 19 Determining thickness of circlip
- Determine thickest circlip which will still fit and install it.
- The following securing clips are available:

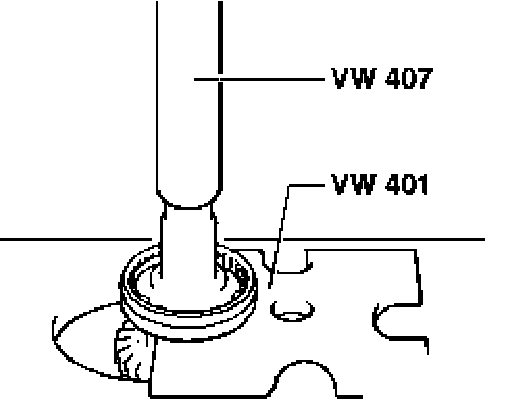

- Fig. 20 Pressing on tapered roller bearing inner race

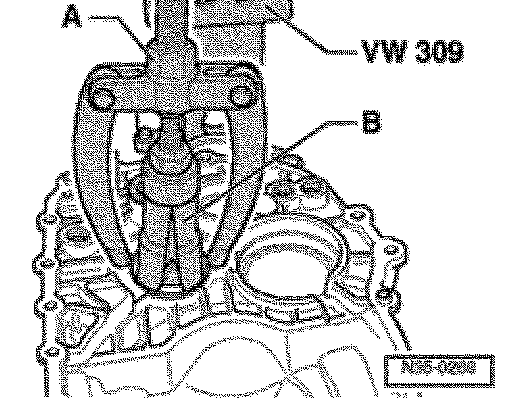

- Fig. 21 Pulling tapered roller bearing outer race out of transmission housing
- A - Counter support, e.g. Kukko 22/2
- B - Internal puller 46 to 58 mm, e.g. Kukko 21/7

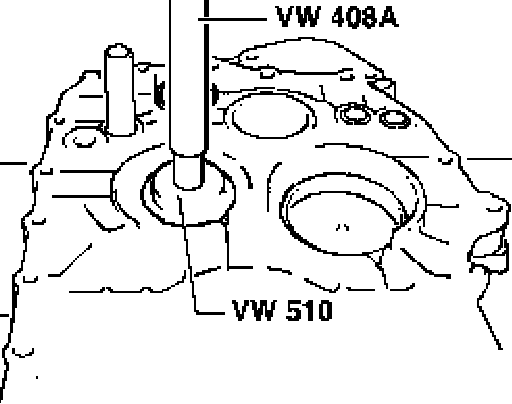

- Fig. 22 Pressing tapered roller bearing outer race into transmission housing
- Support transmission housing with press piece 2050 directly below bearing support.
