Differential, Disassembling and Assembling



Differential, disassembling and assembling, 02M, 5 and 6 Spd. M/T

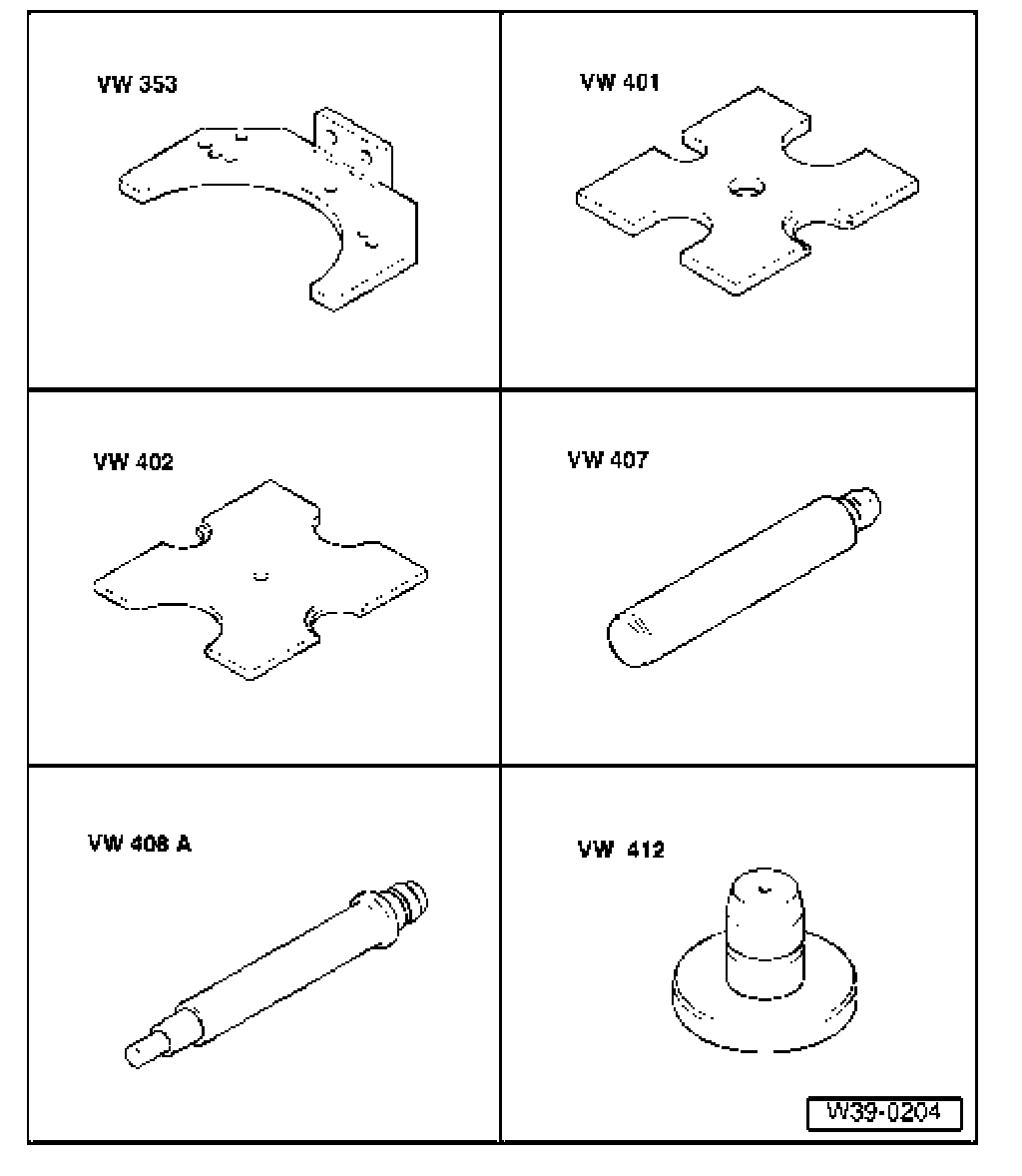

Special tools and equipment:





- VW 353 Transmission support
- VW 401 Thrust plate
- VW 402 Thrust plate
- VW 407 Press tool
- VW 408 A Press tool
- VW 412 Press tool

Special tools and equipment:





- 40-105 Thrust plate
- 3005 Press disk
- 3259 Tube
- 3296 Tube
- 3345 Tube
- V.A.G 1332 Torque wrench or equivalent

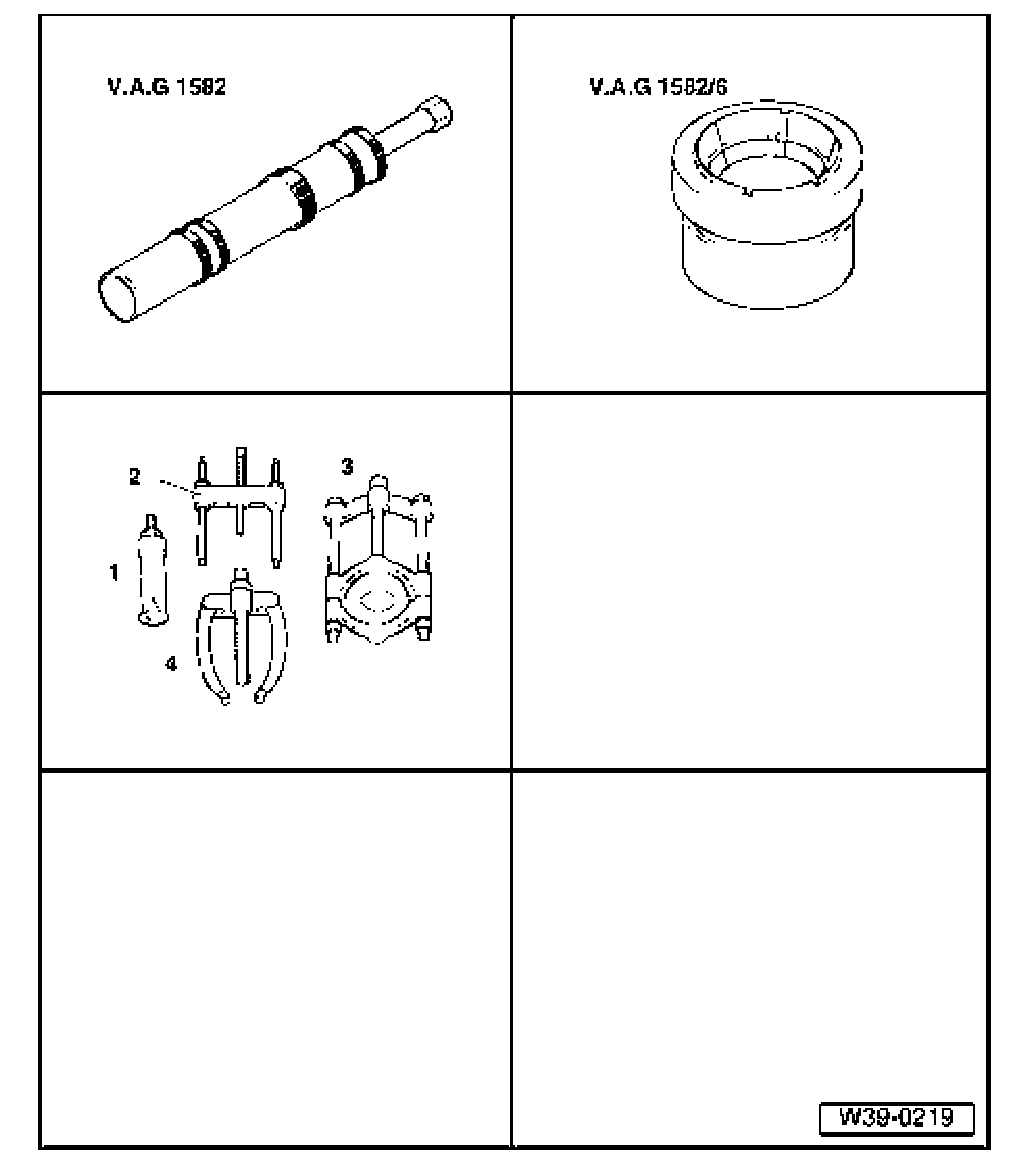

Special tools and equipment:





- V.A.G 1582 Tapered roller bearing puller
- V.A.G 1582/6 Grip
1 - Kukko 21/7 Internal puller
4 - Kukko 22/2 Counter support





Note:
- Heat tapered roller bearing inner race to 100°C before installing.
- Always replace both tapered roller bearings together as a set.
- If tapered roller bearings, differential housing, transmission housing or clutch housing are replaced, adjust differential.

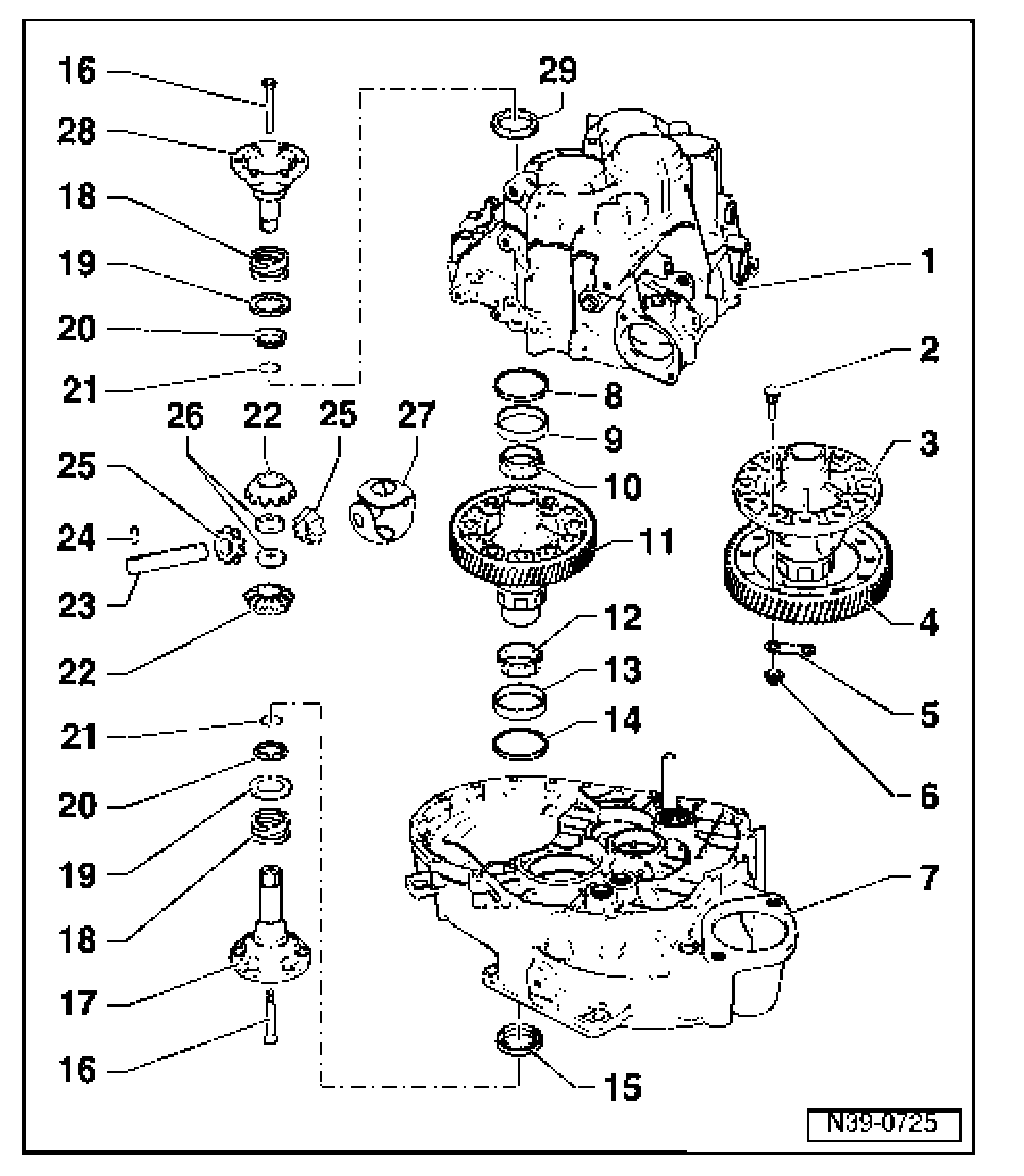

1. Transmission housing
2. Bolt
3. Differential cage
^ Bolt to final drive gear Fig 10
^ Use Parts catalog to check correct application

4. Final drive gear
^ Riveted in production
^ Pressing off go to Fig. 8
^ Installed position: machined side faces bolting surface of differential housing
^ Heat to 100°C before installing
^ Fit to differential housing go to Fig. 9
^ Bolted go to Fig. 10

5. Backing plate
6. Nut, 40 Nm and 1/8 turn (45°) further
7. Clutch housing
8. Shim
^ For differential
^ Determining thickness

9. Tapered roller bearing outer race
^ Pulling out go to Fig. 5
^ Pressing in go to Fig. 6

10. Tapered roller bearing inner race
^ Pulling off go to Fig. 3
^ Pressing on go to Fig. 4

11. Differential housing
^ With riveted final drive gear
^ When replacing final drive gear drill out rivet heads go to Fig. 7
^ Attaching final drive gear with bolts go to Fig. 10

12. Tapered roller bearing inner race
^ Pulling off go to Fig. 3
^ Pressing on go to Fig. 4

13. Tapered roller bearing outer race
^ Pulling out go to Fig. 1
^ Pressing in go to Fig. 2

14. Shim
^ Always 0.65 mm thick

15. Oil seal
^ For right side flanged shaft
^ Left and right side diameters differ
^ Use Parts catalog to check correct application
^ Replacing with transmission installed

16. Counter-sunk head bolt, 25 Nm
^ Bolt into threaded piece (item -26-)

17. Left flanged shaft
^ Do not interchange, left and right side flange shafts differ
^ Use Parts catalog to check correct application

18. Spring for flanged shaft
^ Installed behind flanged shafts

19. Thrust washer
^ Installed position: shoulder toward spring, tongue to tapered ring

20. Tapered ring
^ With grooves to secure thrust washer
^ Installed position: Taper toward differential housing

21. Securing clip
^ Ensures that tapered ring, thrust washer and spring are held in position when flanged shaft is removed

22. Large differential bevel gear
^ Installing go to Fig. 12
^ Use Parts catalog to check correct application

23. Differential bevel gear shaft
^ Knock out with drift
^ Installing go to Fig. 12
^ Use Parts catalog to check correct application

24. Spring pin
^ For securing differential bevel gear shaft
^ Use Parts catalog to check correct application
^ Removing and installing go to Fig. 11

25. Small differential bevel gear
^ Installing go to Fig. 12
^ Use Parts catalog to check correct application

26. Threaded piece
^ Installing go to Fig. 12

27. One-piece thrust washer
^ Coat with transmission oil when installing

28. Left flanged shaft
^ Do not interchange, left and right flanged shafts differ
^ Use Parts catalog to check correct application

29. Oil seal
^ For left flanged shaft
^ Left and right side diameters differ.
^ Replacing with transmission installed

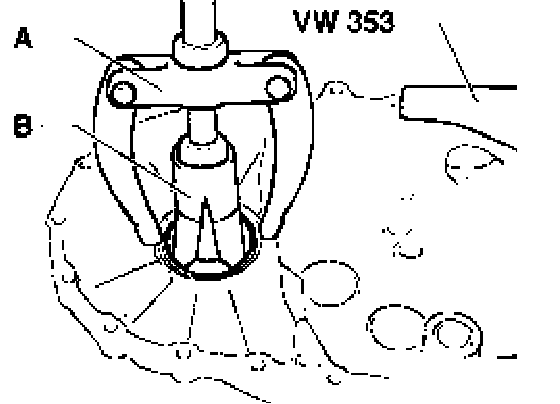

Fig. 1 Pulling tapered roller bearing outer race out of clutch housing
- A - Counter support, e.g. Kukko 22/2
- B - Internal puller 46 to 58 mm, e.g. Kukko 21/7

Note: After pulling out, check washer for damage and replace if necessary.

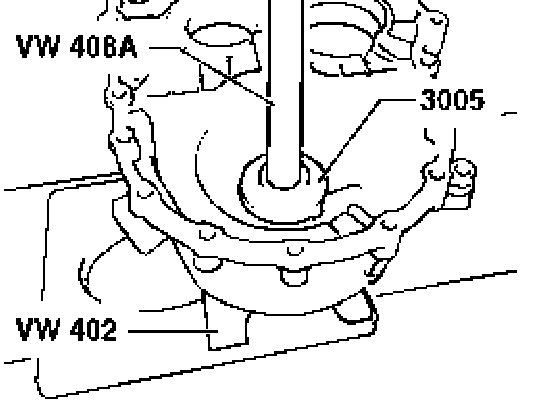

Fig. 2 Pressing tapered roller bearing outer race into clutch housing
- First insert washer.

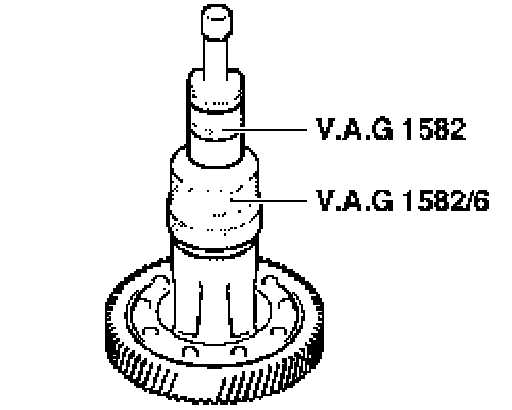

Fig. 3 Pulling off tapered roller bearing inner race
- Before mounting extractor position press piece 40-105 on differential housing.

Note: Both tapered roller bearing inner races are pulled off the differential housing in the same way.

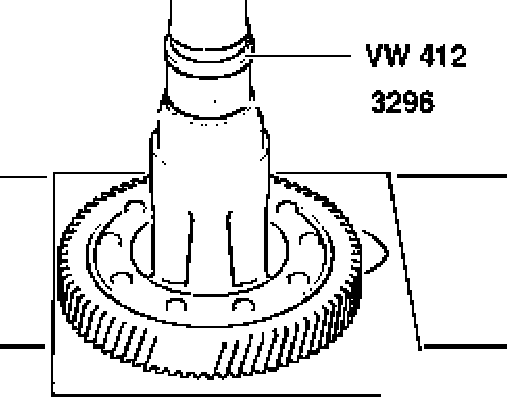

Fig. 4 Pressing on tapered roller bearing inner race

Note: The tapered roller bearing inner races for the transmission housing and clutch housing are pressed on with the same press tools.





Fig. 5 Pulling tapered roller bearing outer race out of transmission housing
A - Counter support, e.g. Kukko 22/2
B - Internal puller 46 to 58 mm, e.g. Kukko 21/7

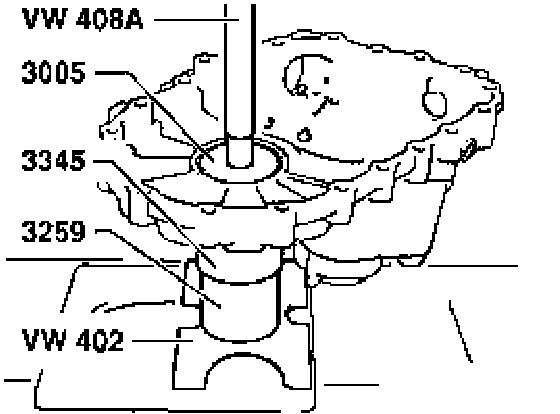

Fig. 6 Pressing tapered roller bearing outer race into transmission housing
- Support transmission housing with tube 3345 directly below bearing mounting.

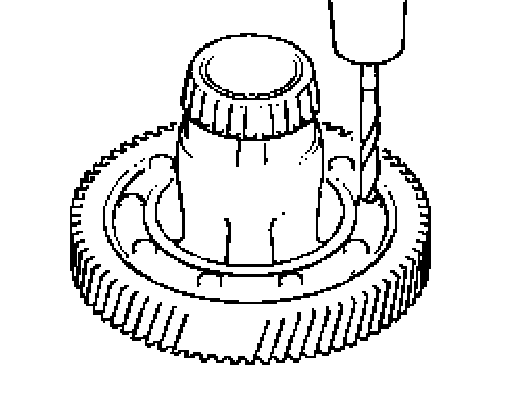

Fig. 7 Drilling out rivet heads
- Drill out rivet heads with 12 mm drill from countersunk side and drive rivet out with drift.

Note: Clean differential before and after drilling; protect tapered roller bearing from metal particles.

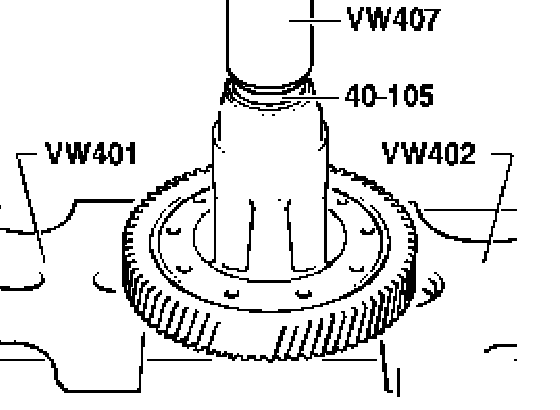

Fig. 8 Pressing off final drive gear
- Place thrust piece 40-105 on differential housing.





Fig. 9 Heating final drive gear to approximately 100°C and installing
- Use bolts -A- from repair kit to guide final drive gear into position during installation.

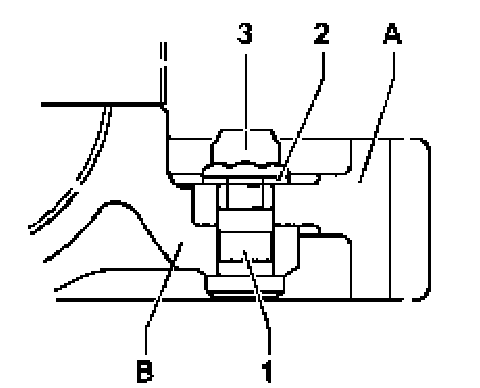

Fig. 10 Bolting final drive gear -A- and differential housing -B- together
- Use special bolts -1- with backing plates -2- and nuts -3- according to parts catalog.

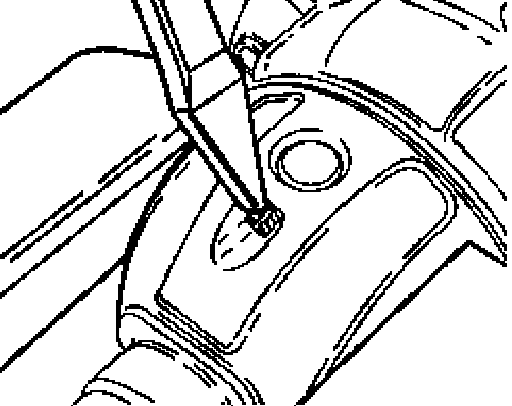

Fig. 11 Removing and installing differential bevel gear shaft spring pin

Removing
- Cover tapered roller bearing inner race to avoid possible damage and ingress of metal particles.
- Knock out spring pin with chisel, inserting chisel into circumferential groove.

Installing
- Knock fully into differential cage.





Fig. 12 Installing differential bevel gears
- Lubricate one piece thrust washer with transmission oil and install.
- Install both large differential bevel gears and secure (e.g. with flanged shaft).
- Insert small differential bevel gears (180° apart) and pivot into position.
- Push differential bevel gear shaft (arrow -A-) in up to first small bevel gear.
- Position threaded pieces (arrow -B-) in large bevel gears.
- Installed position: shoulder to bevel gear
- Drive differential bevel gear shaft into final position and secure with spring pin.
