Transmission Housing and Selector Mechanism, Removing and Installing

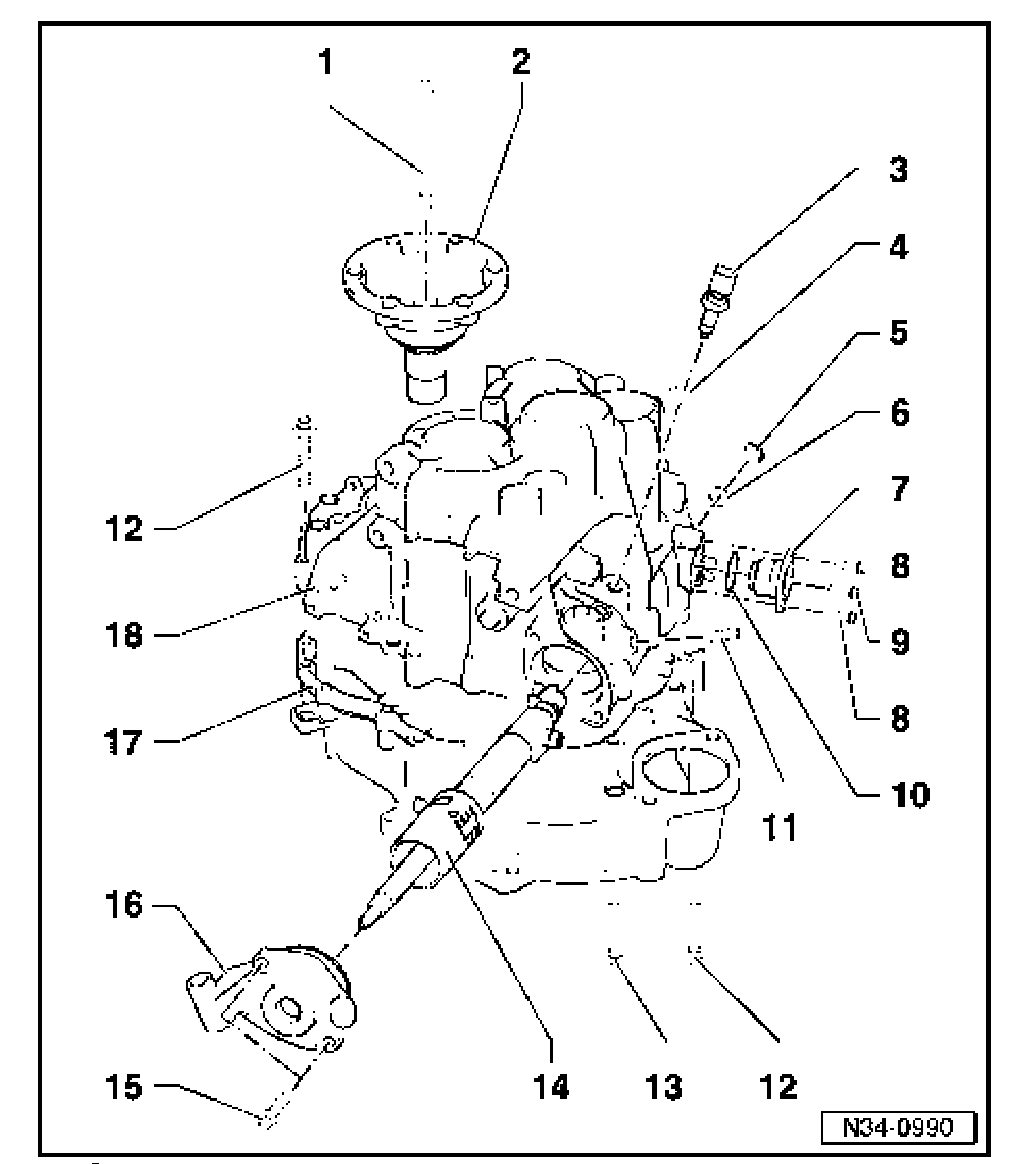

Transmission housing and selector mechanism, removing and installing, 02M, 5 and 6 Spd. M/T





1. Countersunk head bolt, 25 Nm
2. Flanged shaft with spring

3. Back-up light switch, 20 Nm
4. Oil seal
^ Always replace

5. Oil drain plug, 30 Nm
^ Always replace

6. Oil seal
^ Always replace

7. Cover plate

8. Hex bolt, 20 Nm
^ Always replace

9. Hex bolt, 20 Nm
^ For selector shaft item -14- to cover plate
^ Always replace

10. O-ring
^ Always replace
^ Insert in groove in cover plate

11. Locking bolt, 15 Nm
^ For selector shaft gate
^ Always replace
^ Insert with locking fluid D 000 600 A2

12. Hex bolt, 25 Nm plus 1/8 turn (45°) further
^ With attached washer
^ Always replace

13. Hex bolt, 25 Nm plus 1/8 turn (45°) further
^ Without washer
^ Always replace

14. Selector shaft
15. Hex bolt, 20 Nm
^ Always replace

16. Selector mechanism cover
17. Clutch housing
18. Transmission housing
