Selector Forks, Disassembling and Assembling

Selector forks, disassembling and assembling, 02M, 5 and 6 Spd. M/T

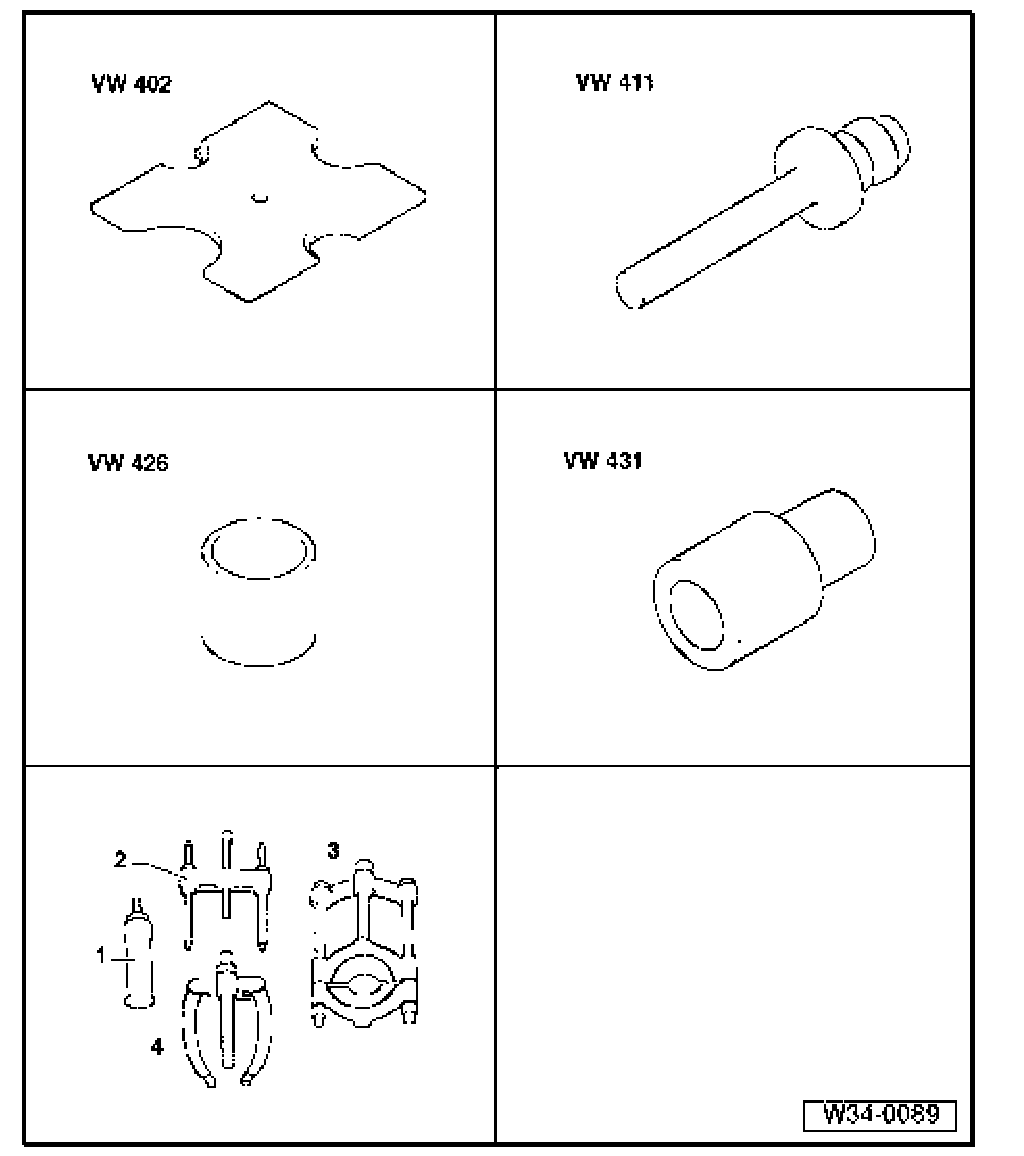

Special tools and equipment:

- VW 402 Thrust plate
- VW 411 Press tool
- VW 426 Tube
- VW 431 Press piece
1 - Kukko 21/3 Internal puller
4 - Kukko 22/1 Counter-support

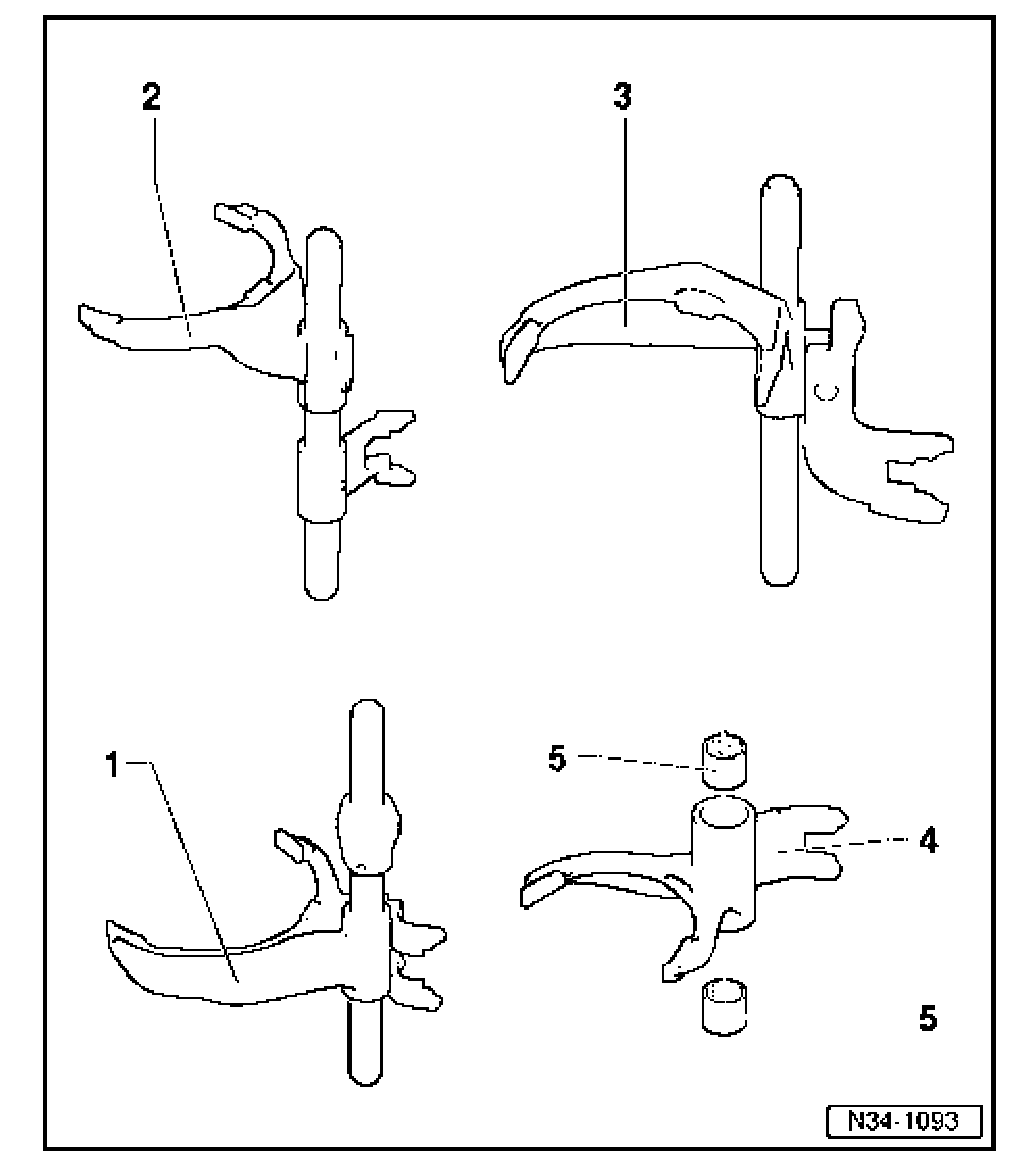

1. Selector rod with 1st and 2nd gear selector forks
2. Selector rod with 3rd and 4th gear selector forks
3. Selector rod with 1st/2nd/5th and reverse gear selector forks
4. Reverse gear selector fork
5. Ball sleeve
- Pulling out go to Fig. 1
- Pressing in go to Fig. 2

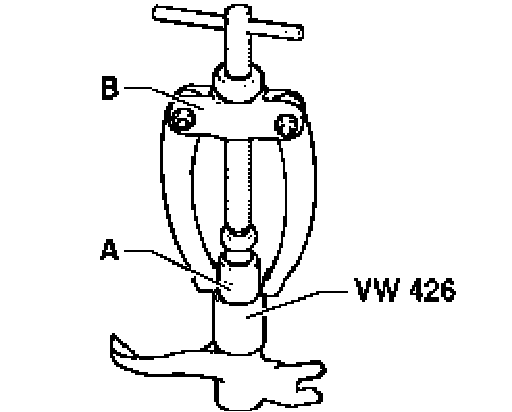

Fig. 1 Pulling out reverse gear selector fork ball sleeve
A - Internal extractor 18 to 23 mm, e.g. Kukko 21/3
B - Counter support. e.g. Kukko 22/1

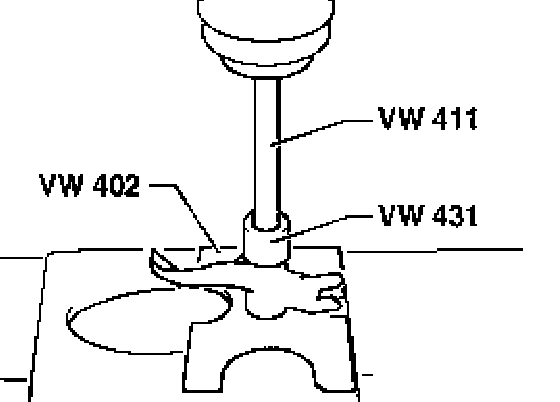

Fig. 2 Pressing in reverse gear selector fork ball sleeve
