Assembly Overview

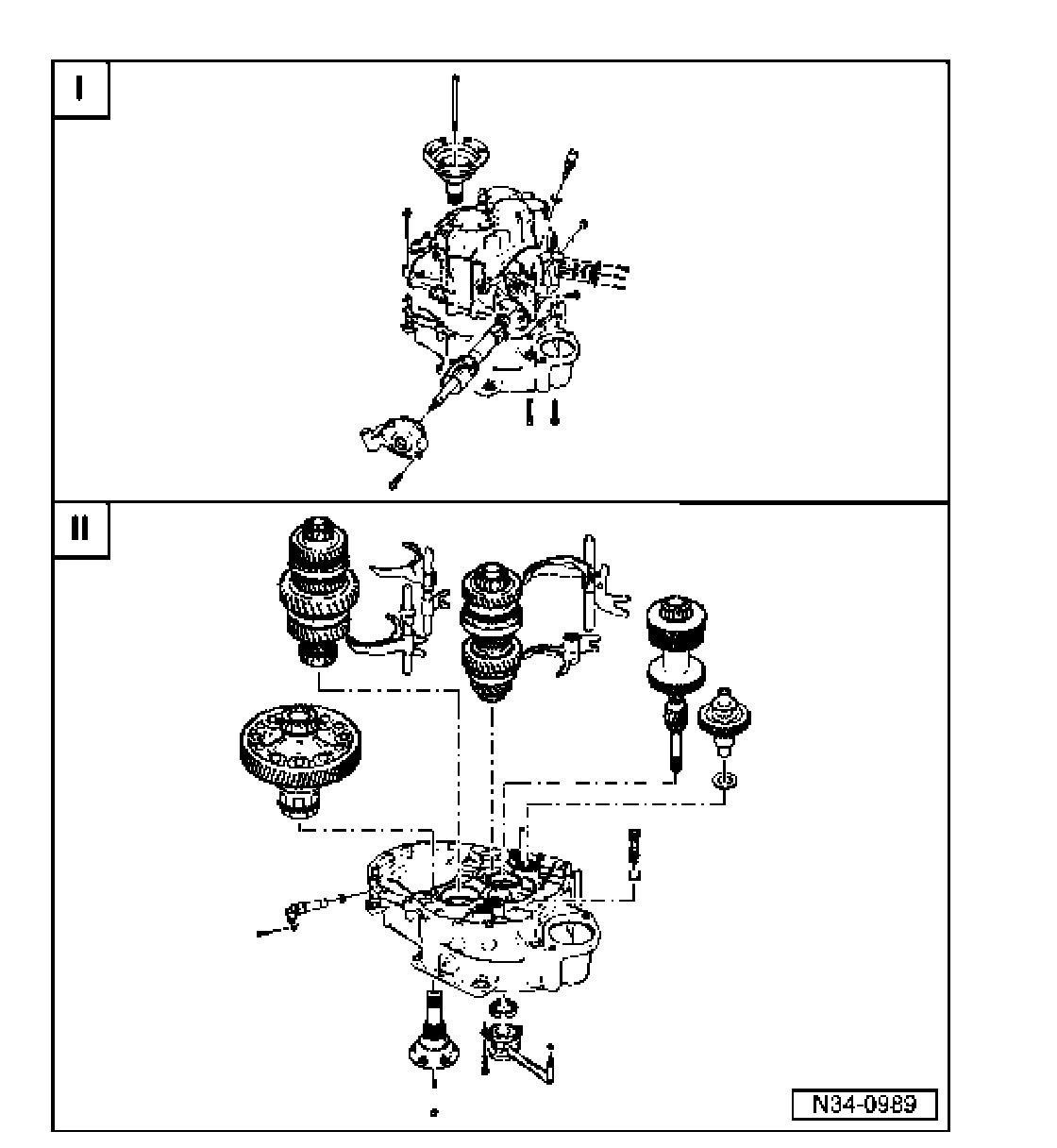

Assembly overview, 02M, 5 and 6 Spd. M/T





I - Disassembling and assembling transmission housing and selector mechanism
II - Disassembling and assembling input shaft, output shafts, differential and selector rods
