Table of Adjustment Shims

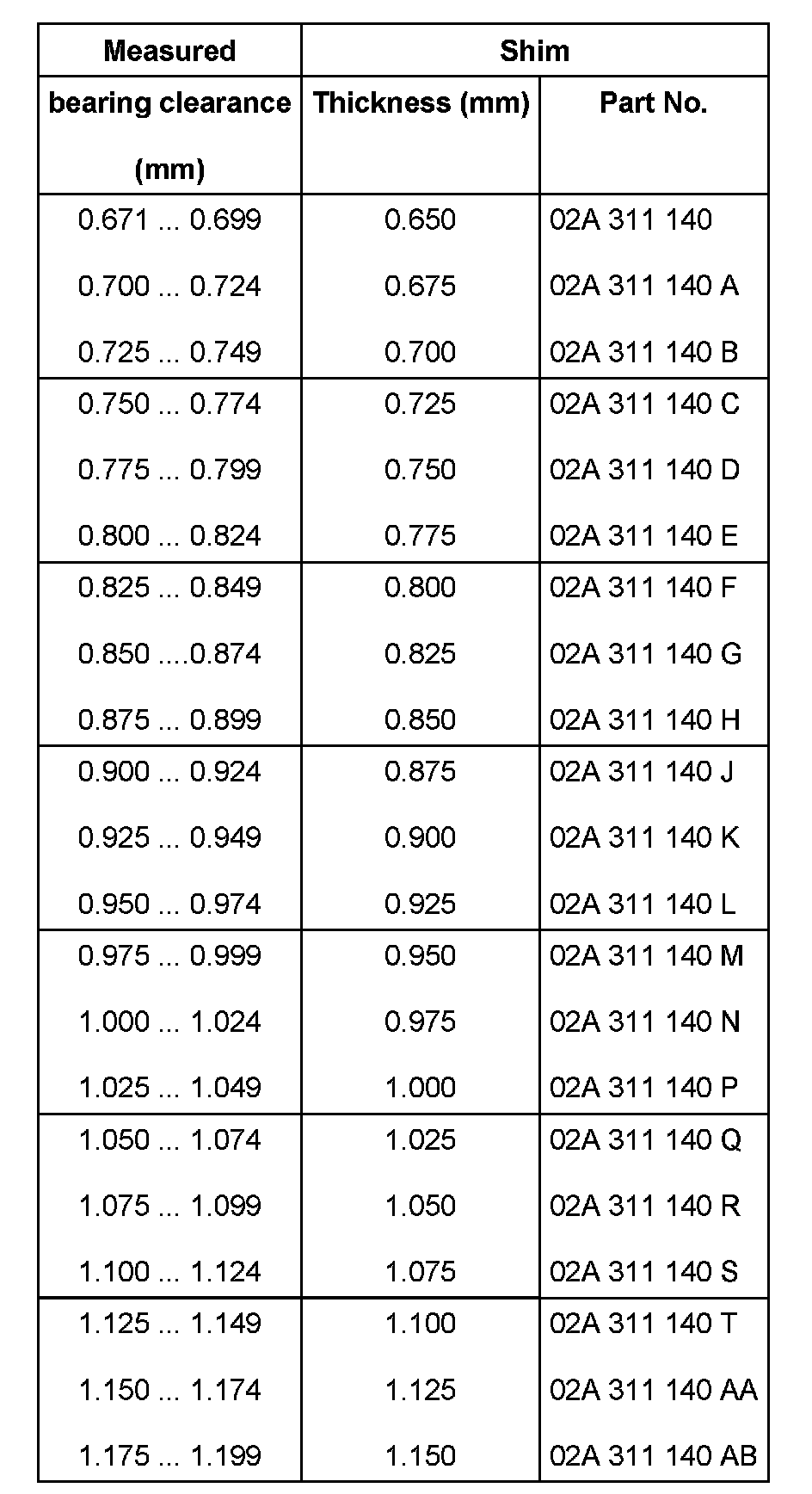

Table of adjustment shims (part 1):

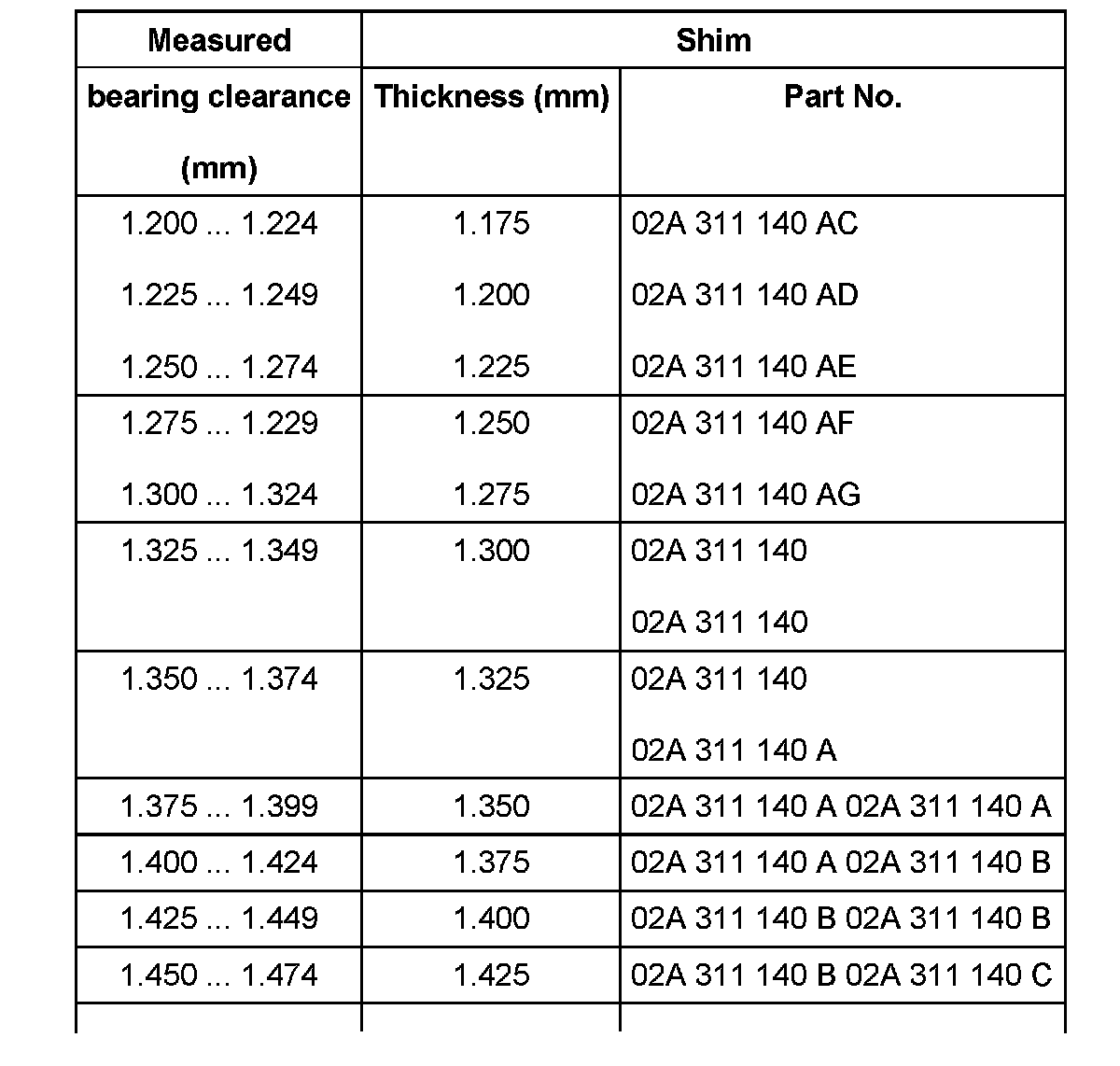

Table of adjustment shims (part 2):

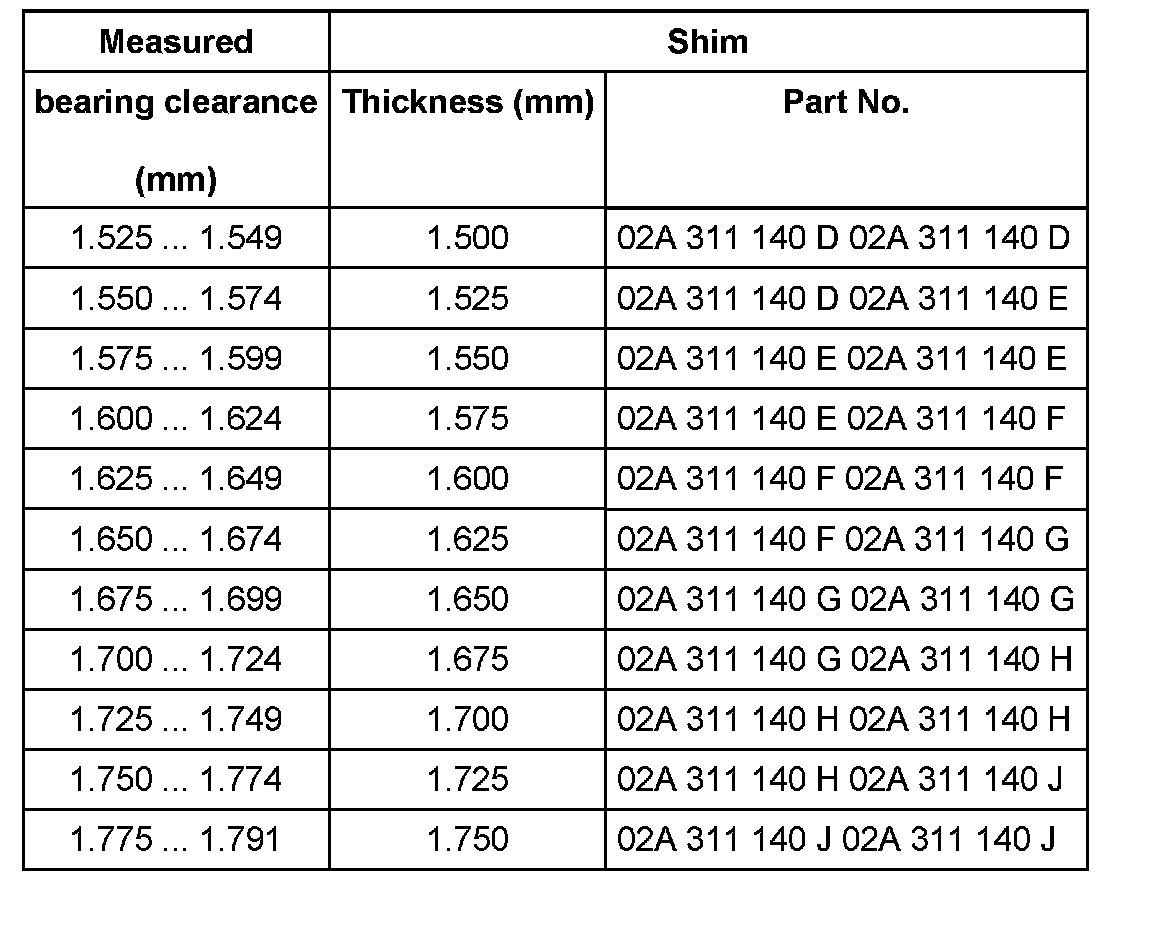

Table of adjustment shims (part 3):
